Instrument Cluster / Carrier: Description and Operation

COMBINATION METER DESCRIPTION

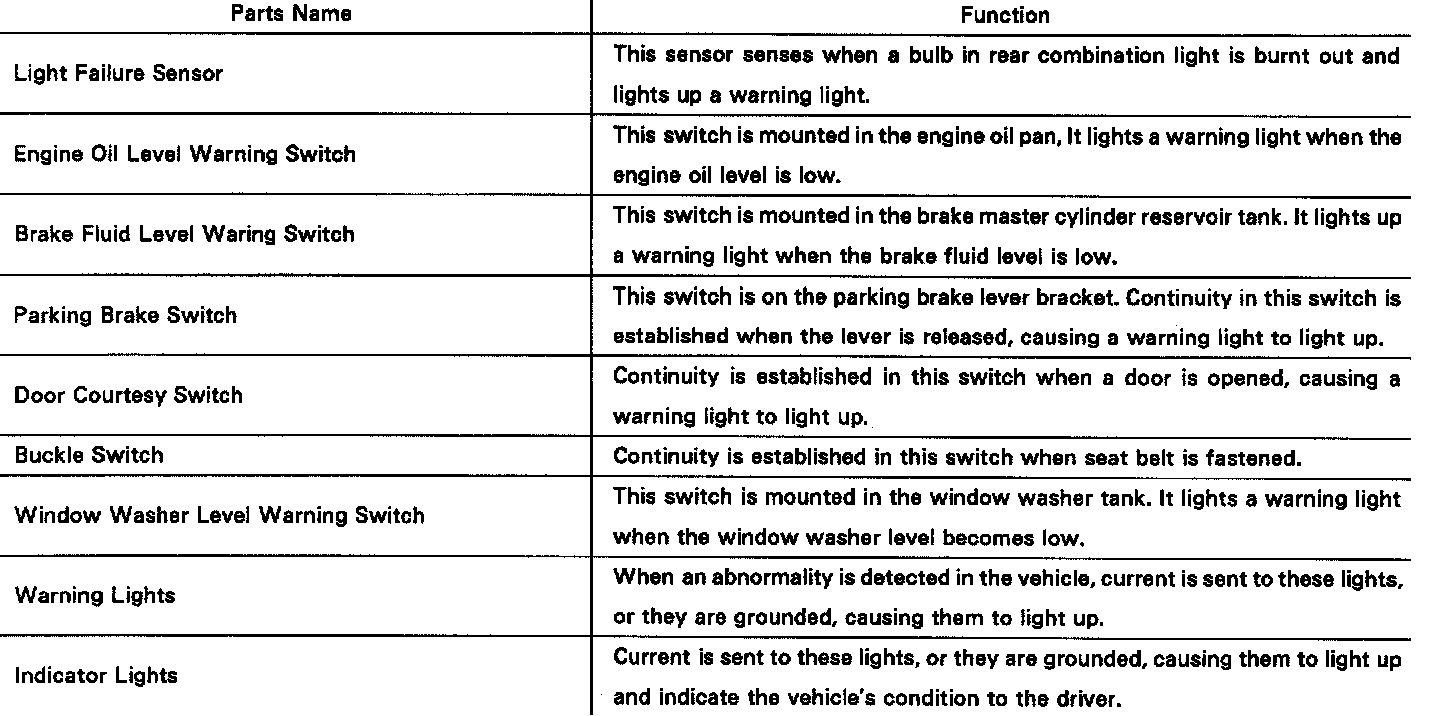

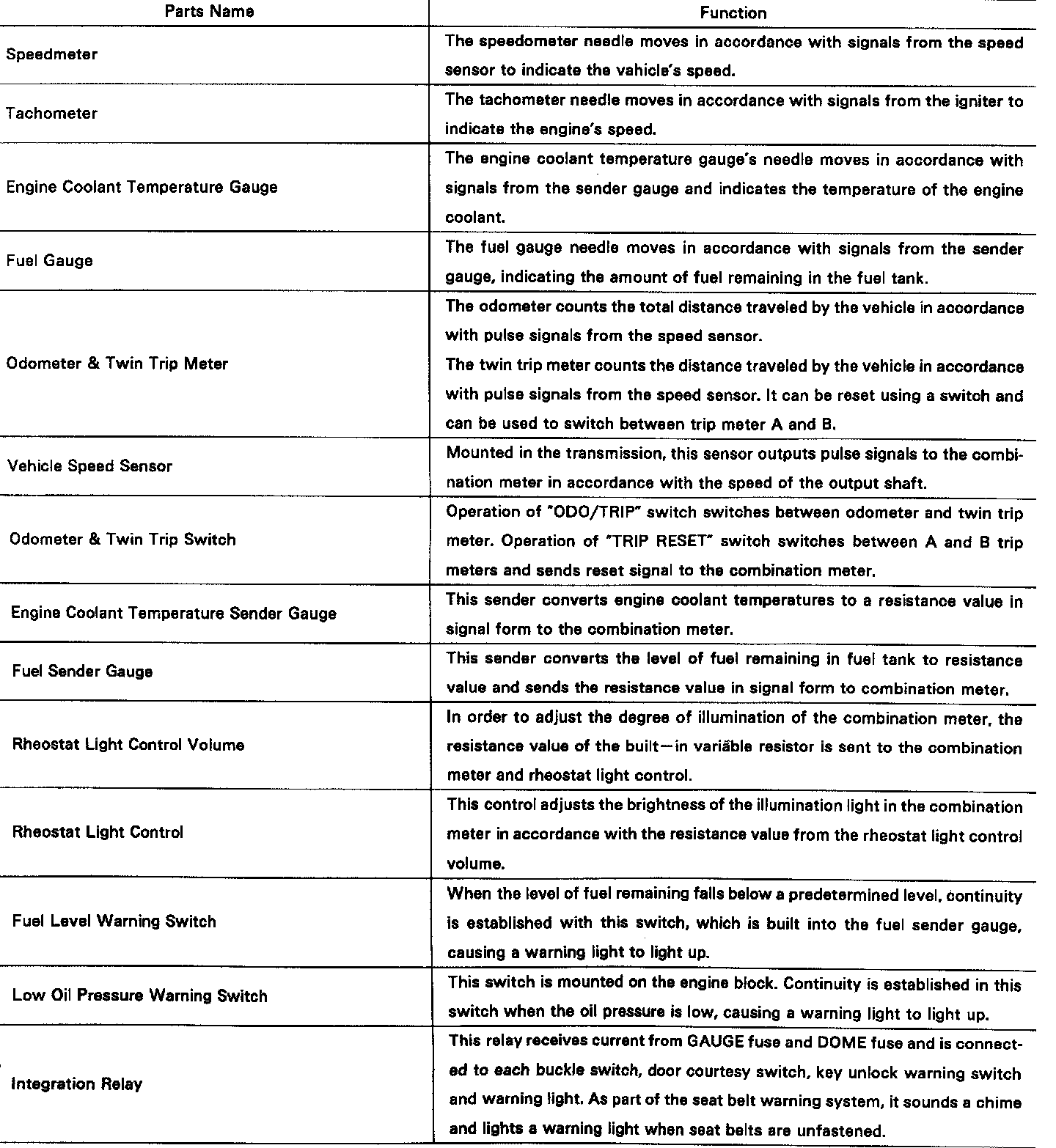

The combination meter has various meters and gauges which show the vehicle's condition, warning lights which monitor abnormalities in the vehicle and inform the driver, indicator lights which inform the driver of the condition of each part of vehicle, and a function for illumination and brightness adjustment of meters and gauges. The component parts of this system and their functions are described in the following table.
