Assembly
CYLINDER HEAD ASSEMBLYHINT:
- Thoroughly clean all parts to be assembled.
- Before installing the parts. apply fresh engine oil to all sliding and rotation surfaces.
- Replace all gaskets and oil seals with new ones.
1. Install spark plug tubes
HINT: When using a new cylinder head, spark plug tubes must be installed.

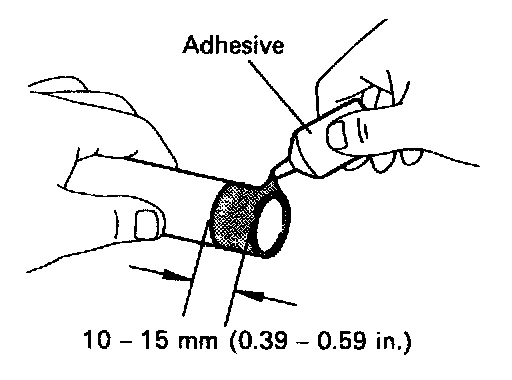

(a) Apply adhesive to the end of the spark plug tube.
Adhesive: Part No.08833-00070, THREE BOND 1324 or equivalent

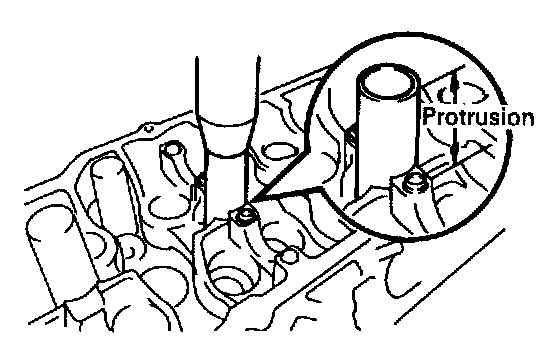

(b) Using a press. press in a new spark plug tube until there is 42.4 - 43.4 mm (1 .669 - 1.709 in.) protruding from the camshaft bearing cap installation surface of the cylinder head.
NOTE: Avoid pressing a new spark plug tube in too far by measuring the amount of the protrusion while pressing.
2. Install PCV pipes
HINT: When using a new cylinder head, PCV pipe must be installed.

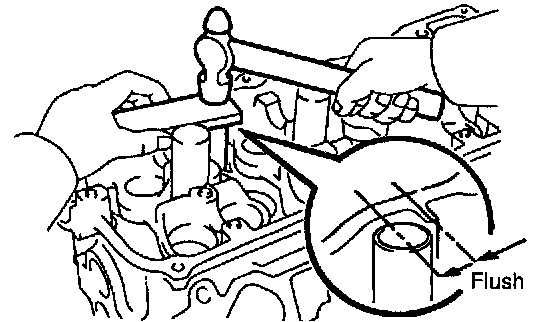

Using a wooden block and hammer, tap in a new PCV pipe until its top side is flush with the cylinder head edge.
NOTE: Be careful not to damage the cylinder head edge.
3. Install valves

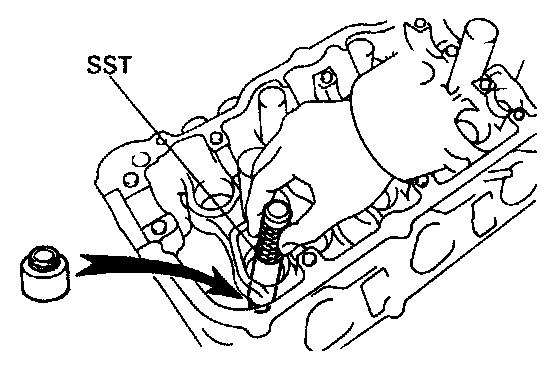

(a) Using SST, push in a new oil seal. SST 09201-41020

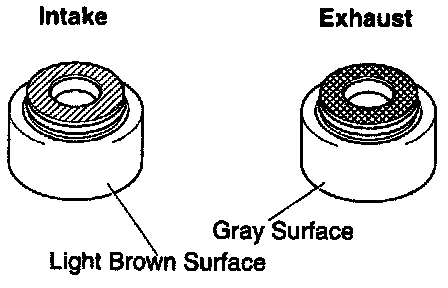

HINT: The intake valve oil seal is light brown and the exhaust valve oil seal is gray.

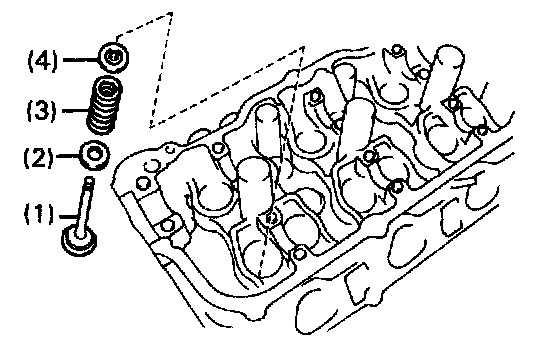

(b) Install these parts:
(1) Valve
(2) Spring seat
(3) Valve spring
(4) Spring Retainer

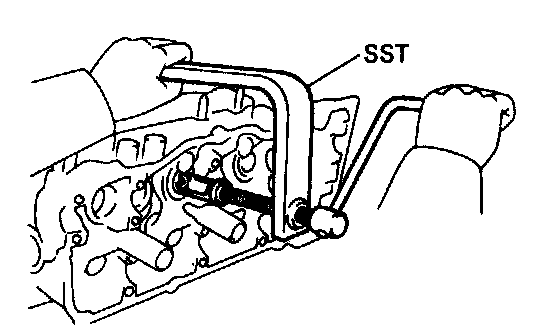

(c) Using SST, compress the valve spring and place the 2 keepers around the valve stem.
SST 09202-70020 (09202-00010)

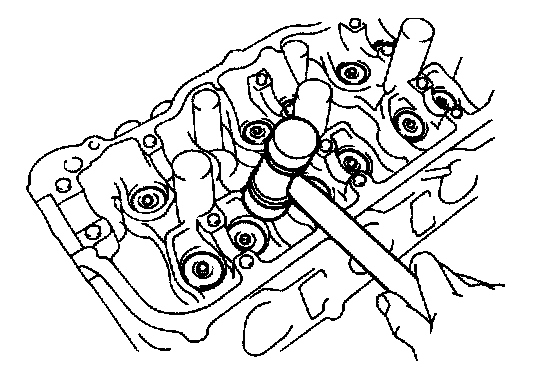

(d) Using a plastic-faced hammer, lightly tap the valve stem tip to ensure a proper fit.
4. Install valve lifters and shims
(a) Install the valve lifter and shim.
(b) Check that the valve lifter rotates smoothly by hand.
