Lexus
>>
1996
>>
ES 300 V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse, Relay, and Junction Block Data
>>
Junction Blocks
>>
Number 3
Number 3
Locations-J/B No.3 Behind Combination Meter (Fig 24):

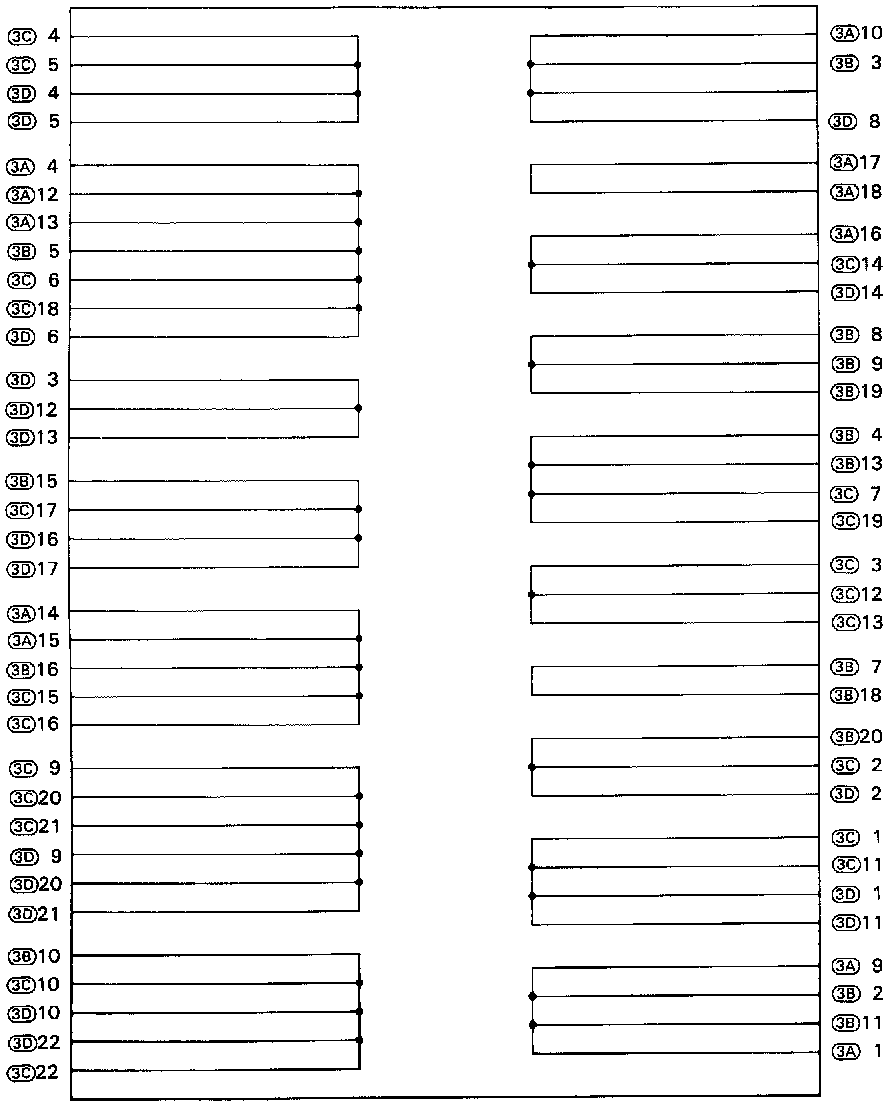

Locations-J/B No.3 Inner Circuit (Fig 24):
