Shift Indicator - A/T

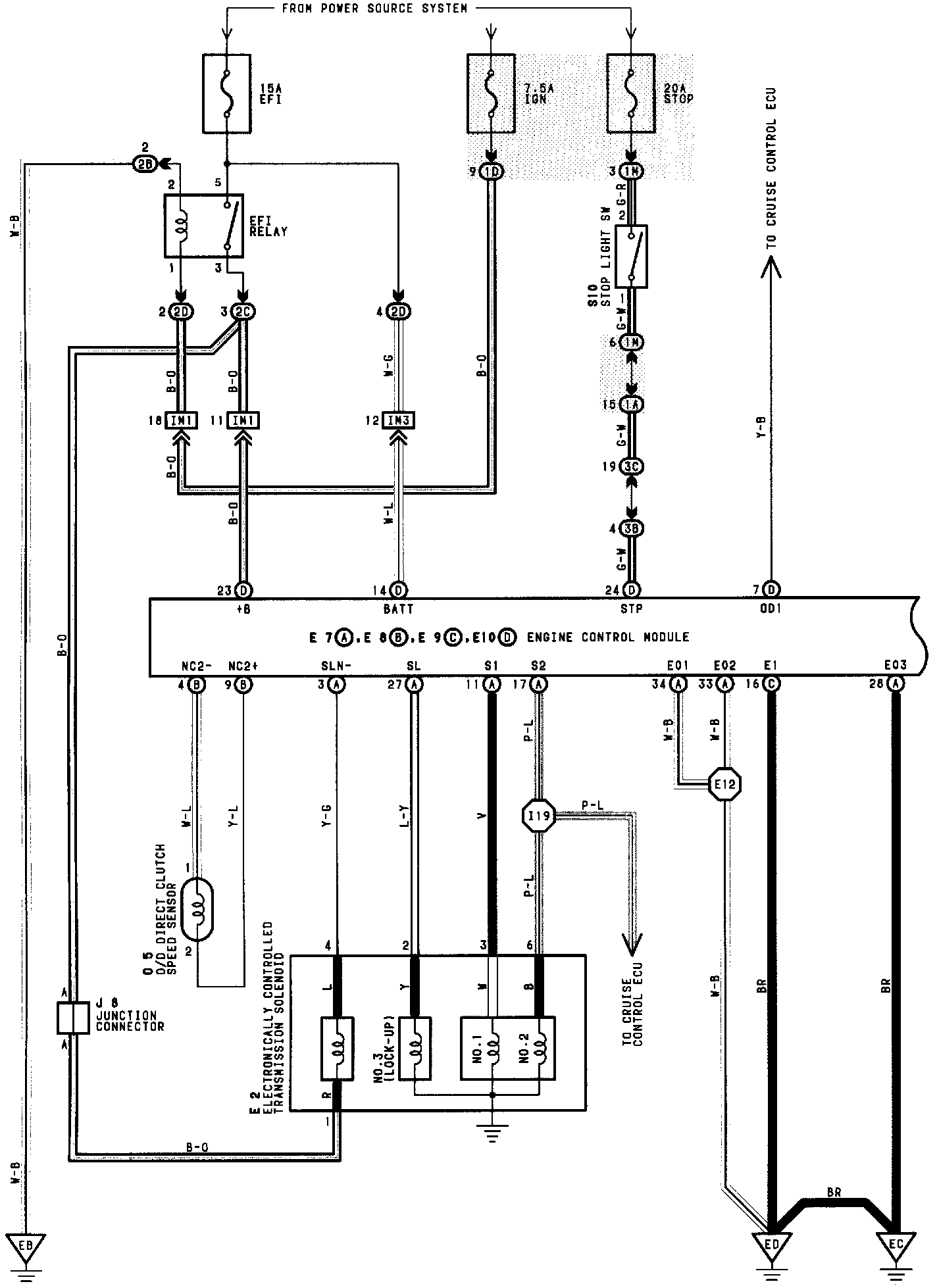

Electronically Controlled Transmission And A/T Indicator (Part 1 Of 2):

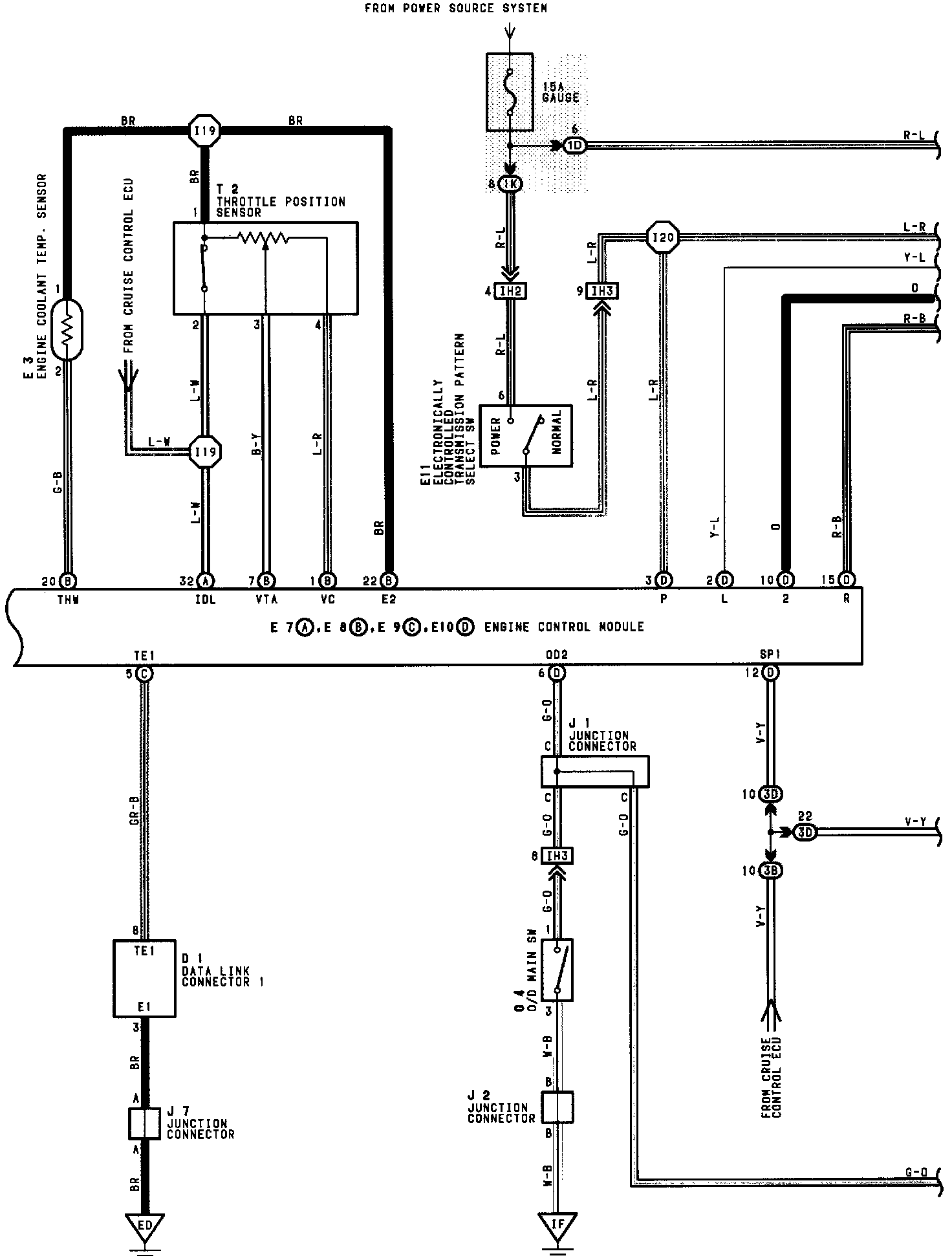

Electronically Controlled Transmission And A/T Indicator (Part 2 Of 2):




Electronically Controlled Transmission And A/T Indicator (Part 3 Of 2):
