Rear Door: Adjustments

REAR DOOR ADJUSTMENT

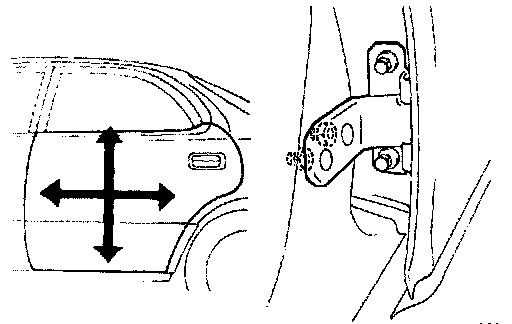

1. ADJUST REAR DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
(a) Remove the center pillar garnish.
(b) Using a wrench, loosen the 2 body-side upper hinge nuts.

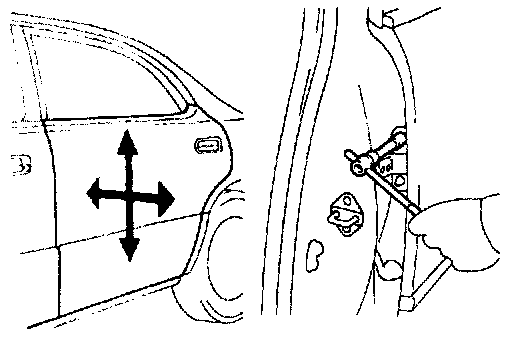

2. ADJUST REAR DOOR IN LEFT/RIGHT VERTICAL DIRECTIONS
Using a wrench, loosen the door-side hinge boils.

3. ADJUST REAR DOOR LOCK STRIKER
Adjust the rear striker in the same way as the front.
