Front Door: Adjustments

FRONT DOOR ADJUSTMENT

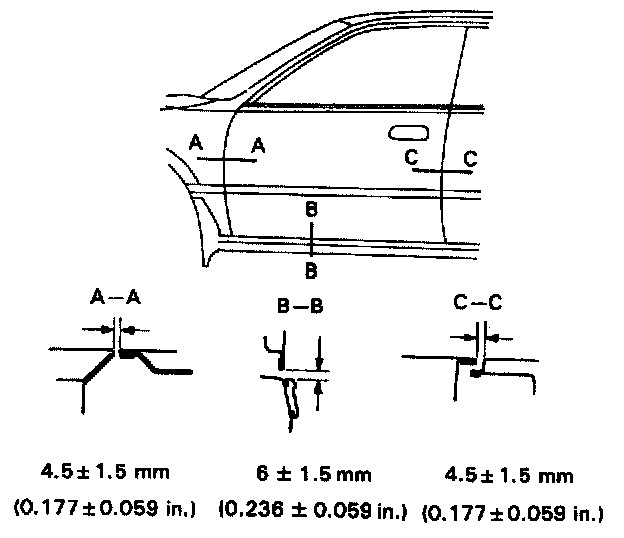

HINT: Adjust the door panel according to the following method.

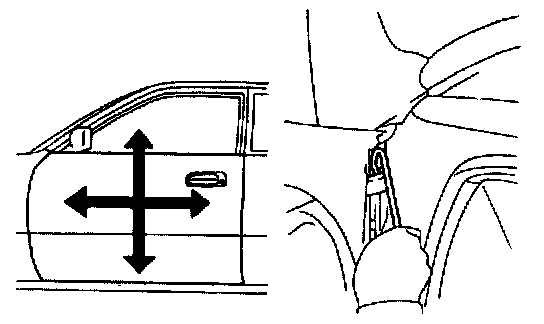

1. ADJUST FRONT DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using SST, adjust the door by loosening the body- side hinge nuts. SST 09812-00020

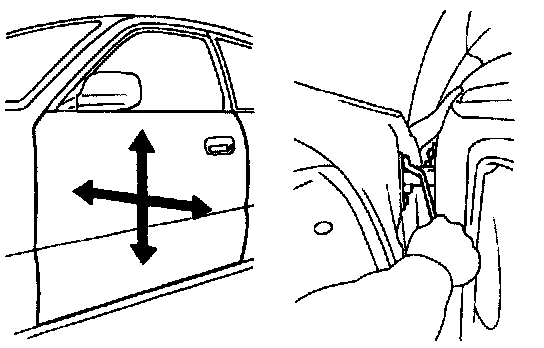

2. ADJUST FRONT DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Loosen the door-side hinge bolts to adjust.

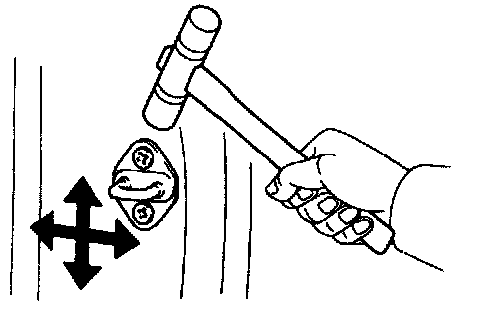

3. ADJUST FRONT DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are adjusted correctly.
(b) Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer. Tighten the striker mounting screws again.
