P1705

CIRCUIT DESCRIPTION

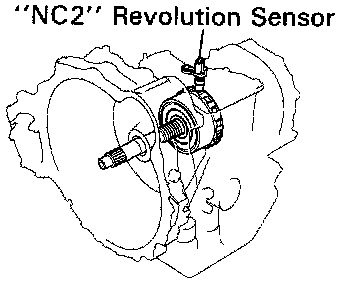

This sensor detects the rotation speed of the direct clutch drum. By comparing the direct clutch speed signal and the vehicle speed sensor signal, the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure in response to various conditions, thus performing smooth gear shifting.





DETECTING CONDITION





WIRING DIAGRAM

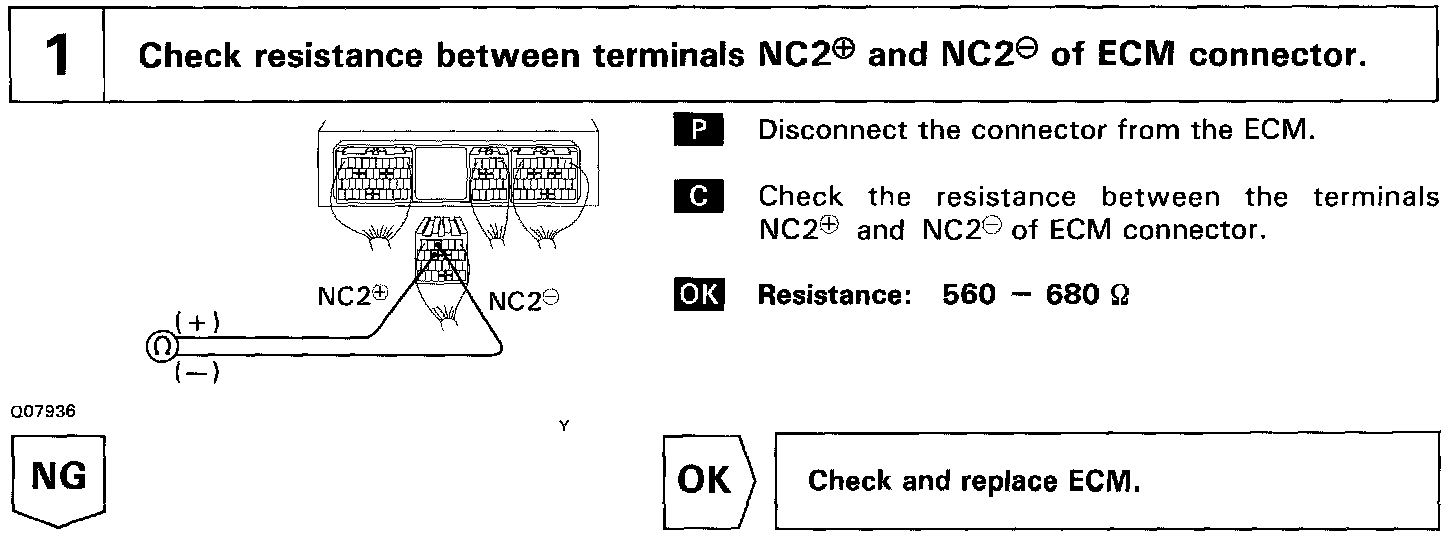

INSPECTION PROCEDURE
