Troubleshooting

CIRCUIT DESCRIPTION
Refer to Insufficient Coolant Temp. for Closed Loop Fuel Control.

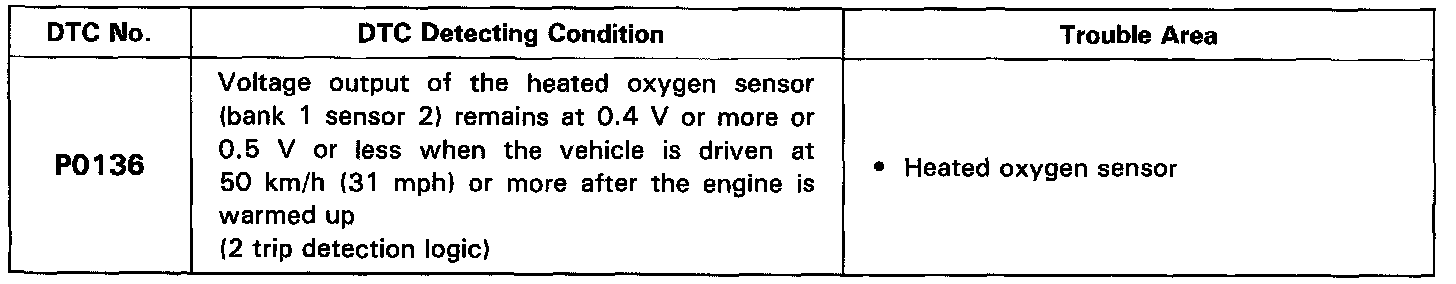

DETECTING CONDITION

HINT: Bank 1 refers to the bank that includes cylinder No.1. Sensor 2 refers to the sensor farther away from the engine body.

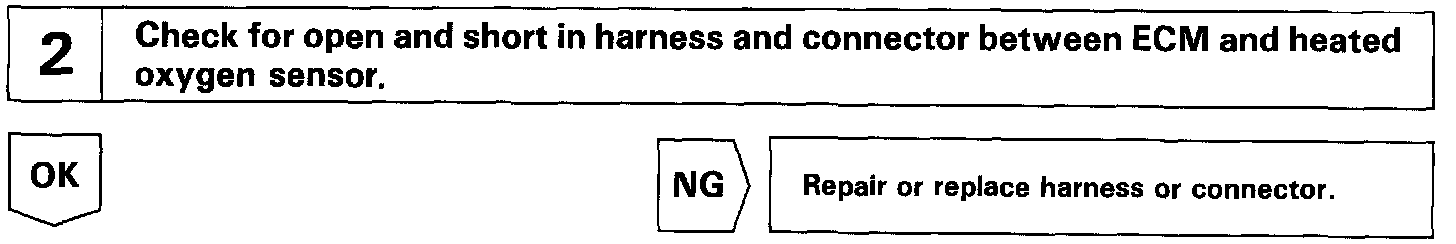

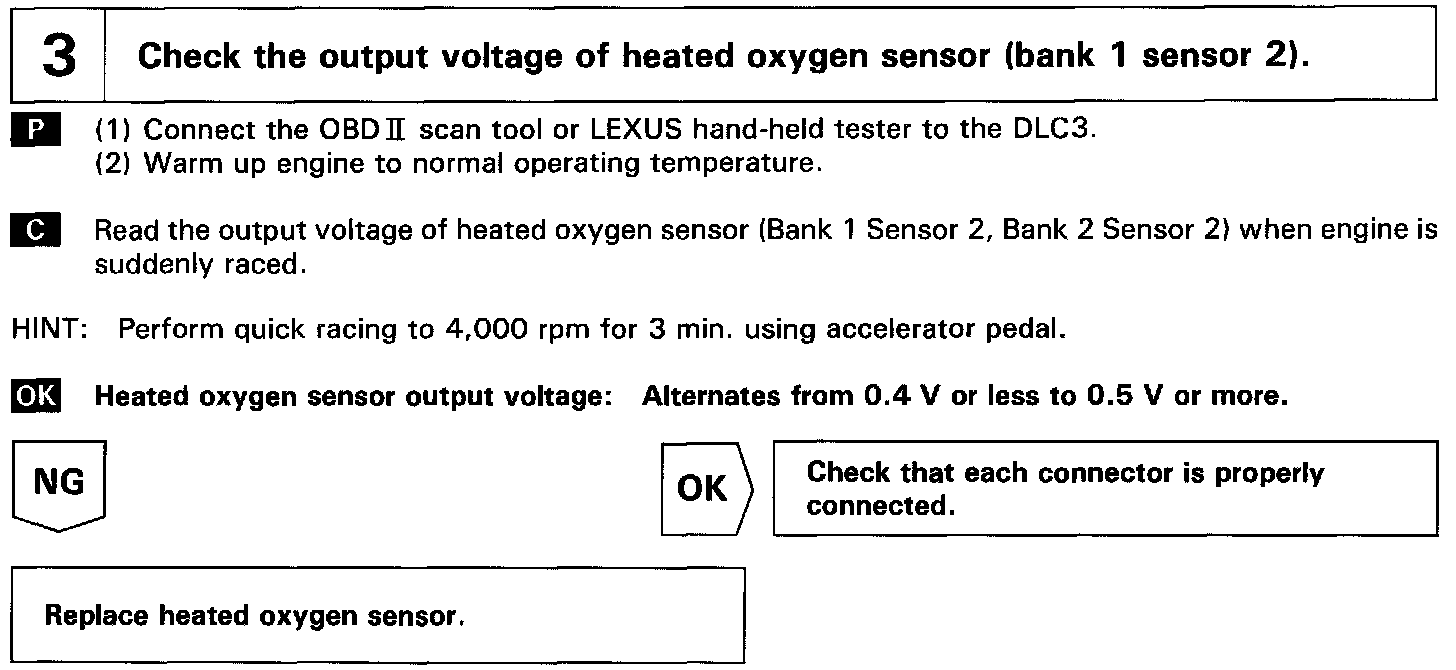

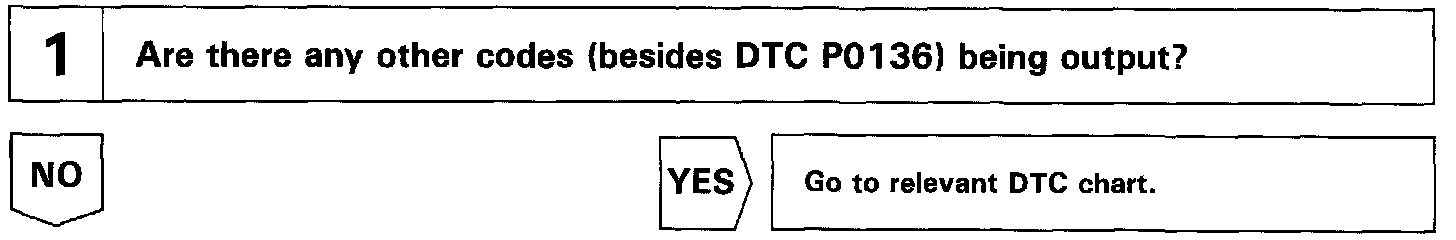

INSPECTION PROCEDURE
