Home >> Lexus >> 1996 >> ES 300 V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0101 >> Troubleshooting

Troubleshooting




CIRCUIT DESCRIPTION
Refer to mass air flow circuit malfunction.P0100

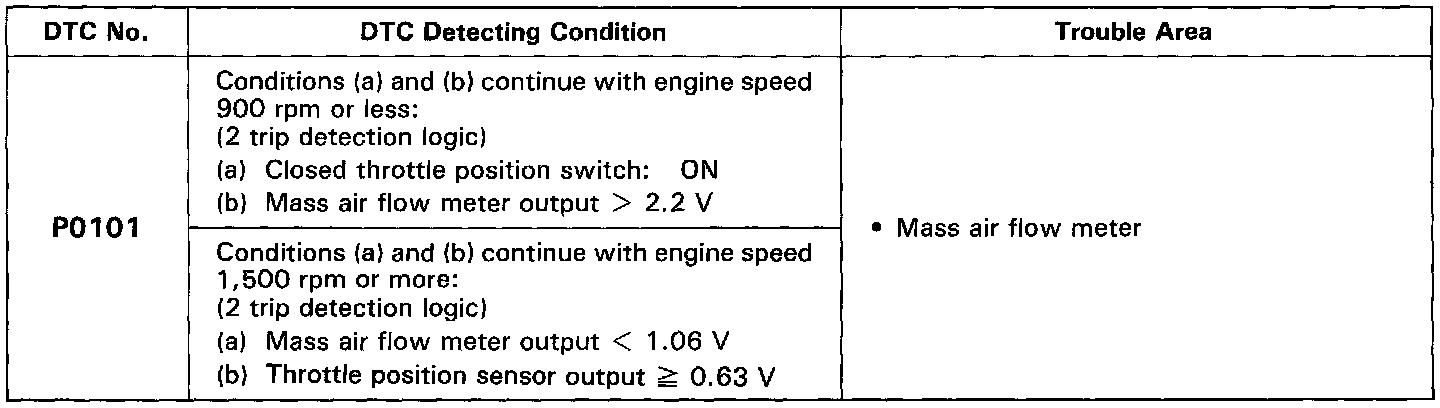

DETECTING CONDITION

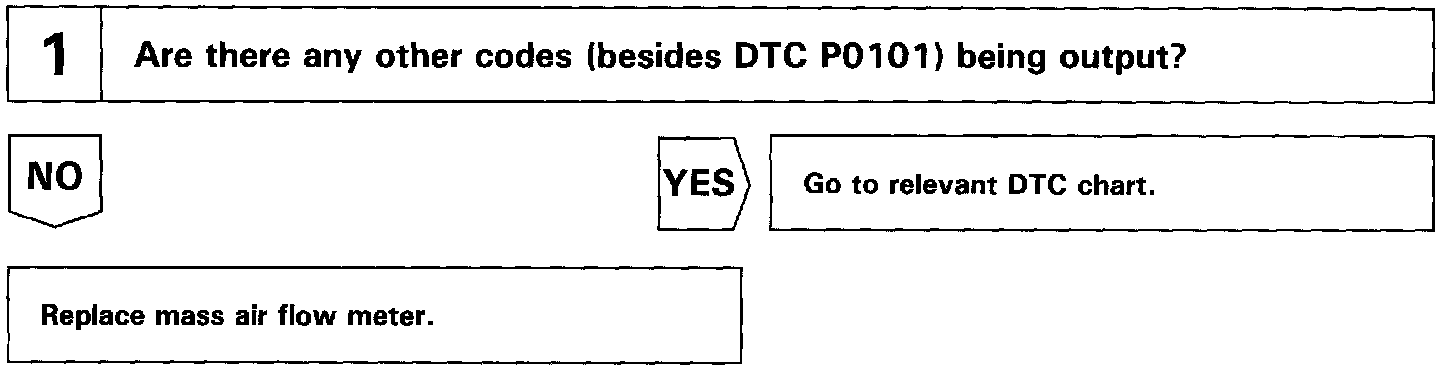

INSPECTION PROCEDURE
