Symptom Related Diagnostic Procedures

If a normal code is displayed during the diagnostic trouble code check but the trouble still occurs, check the circuits for each symptom in the order given in the charts on the following pages and proceed to the area given for troubleshooting.
The Matrix Chart is divided into 3 chapters. Chapter 1: Electronic Circuit Matrix Chart Chapter 2: On-vehicle Repair Matrix Chart Chapter 3: Off-vehicle Repair Matrix Chart In troubleshooting, check Chapter 1 first. If instructions are given in Chapter 1 to proceed to Chapter 2 or 3, proceed to it.
1. If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
2. If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check or replace the ECM.

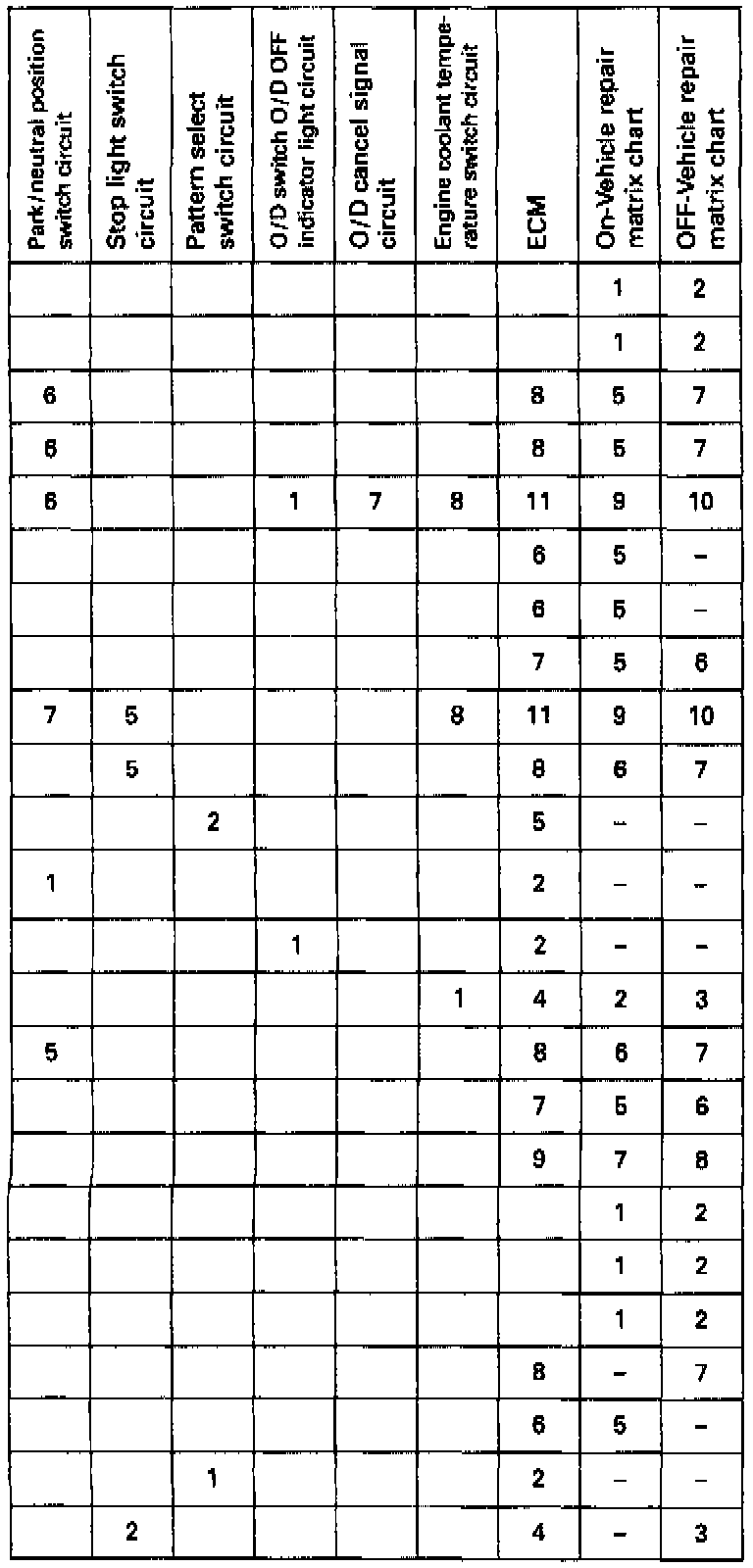

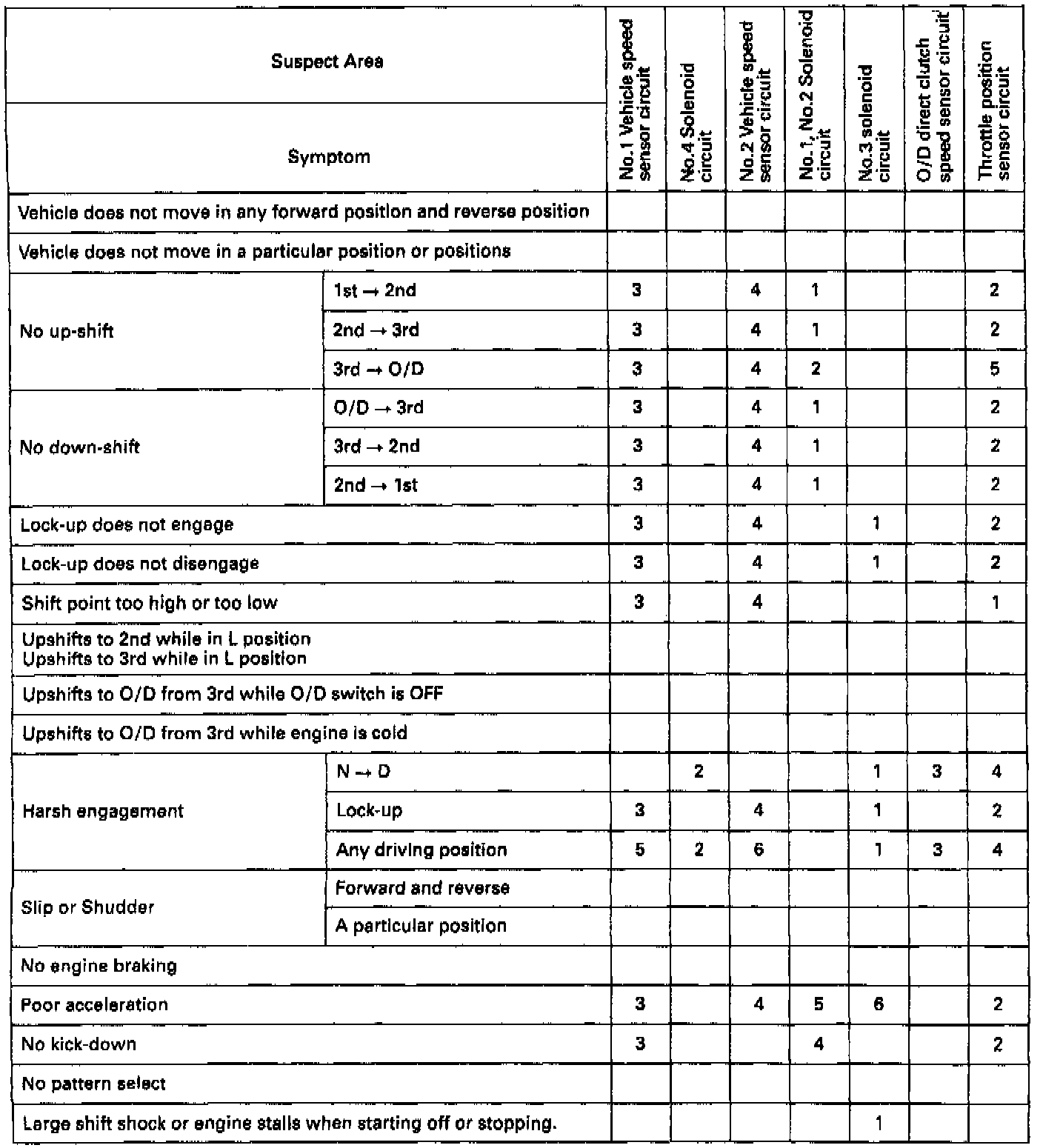

Diagnosis By Symptom: Electronic Circuit (Part 1 Of 2):

Diagnosis By Symptom: Electronic Circuit (Part 2 Of 2):

Chapter 1. Electronic Circuit

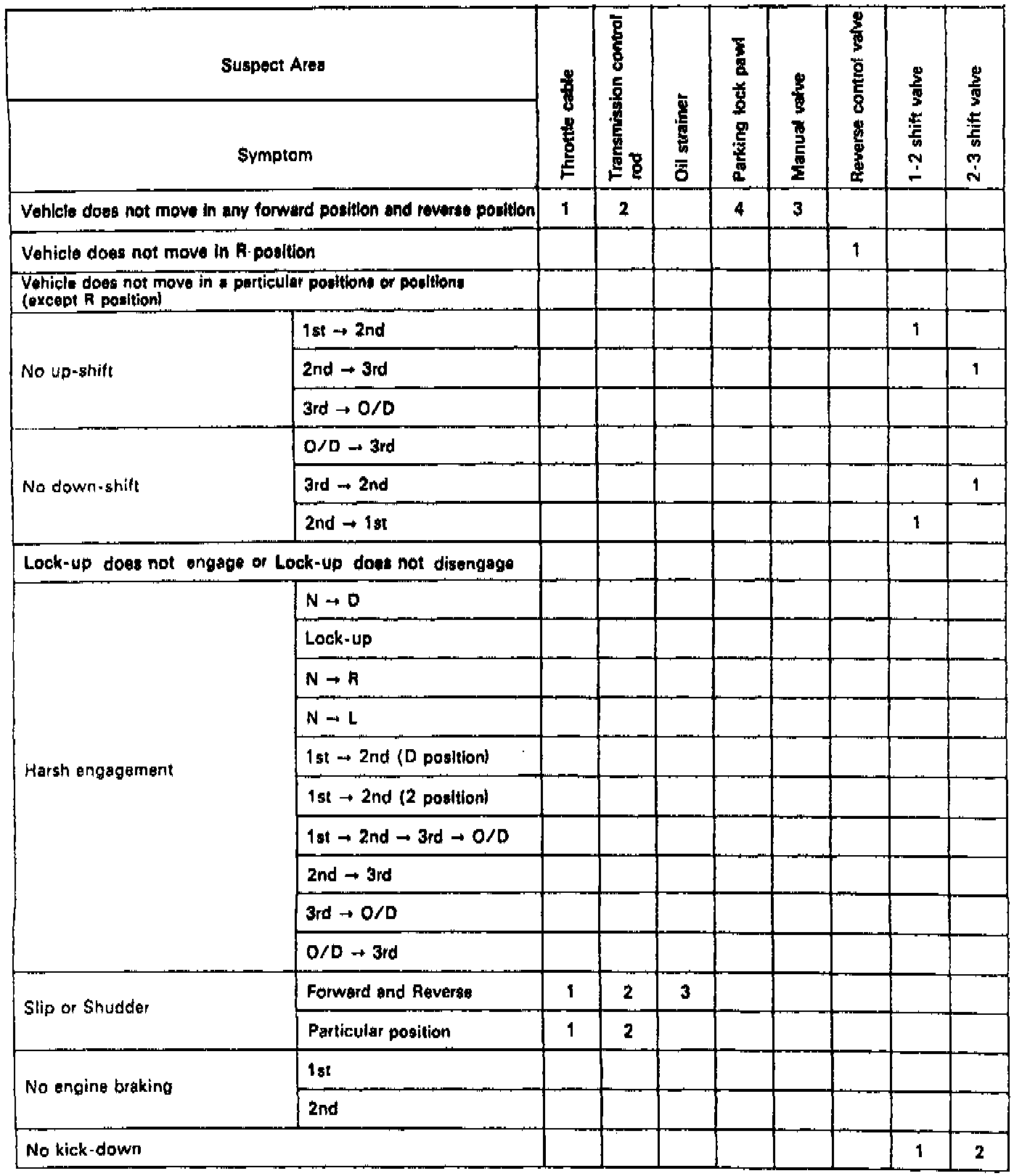

Diagnosis By Symptom: On-Vehicle Repair (Part 1 Of 2):

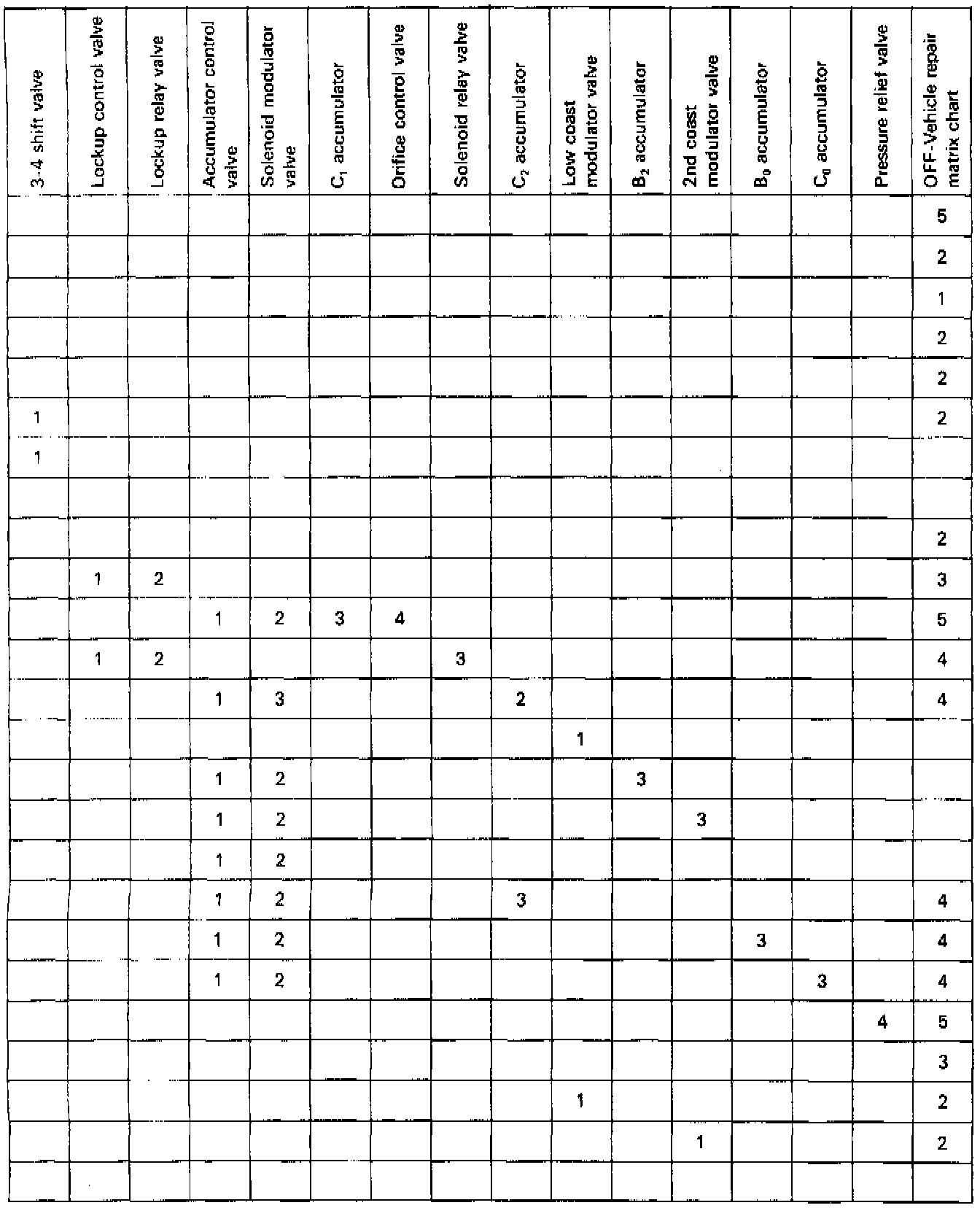

Diagnosis By Symptom: On-Vehicle Repair (Part 2 Of 2):

Chapter 2. On-Vehicle Repair

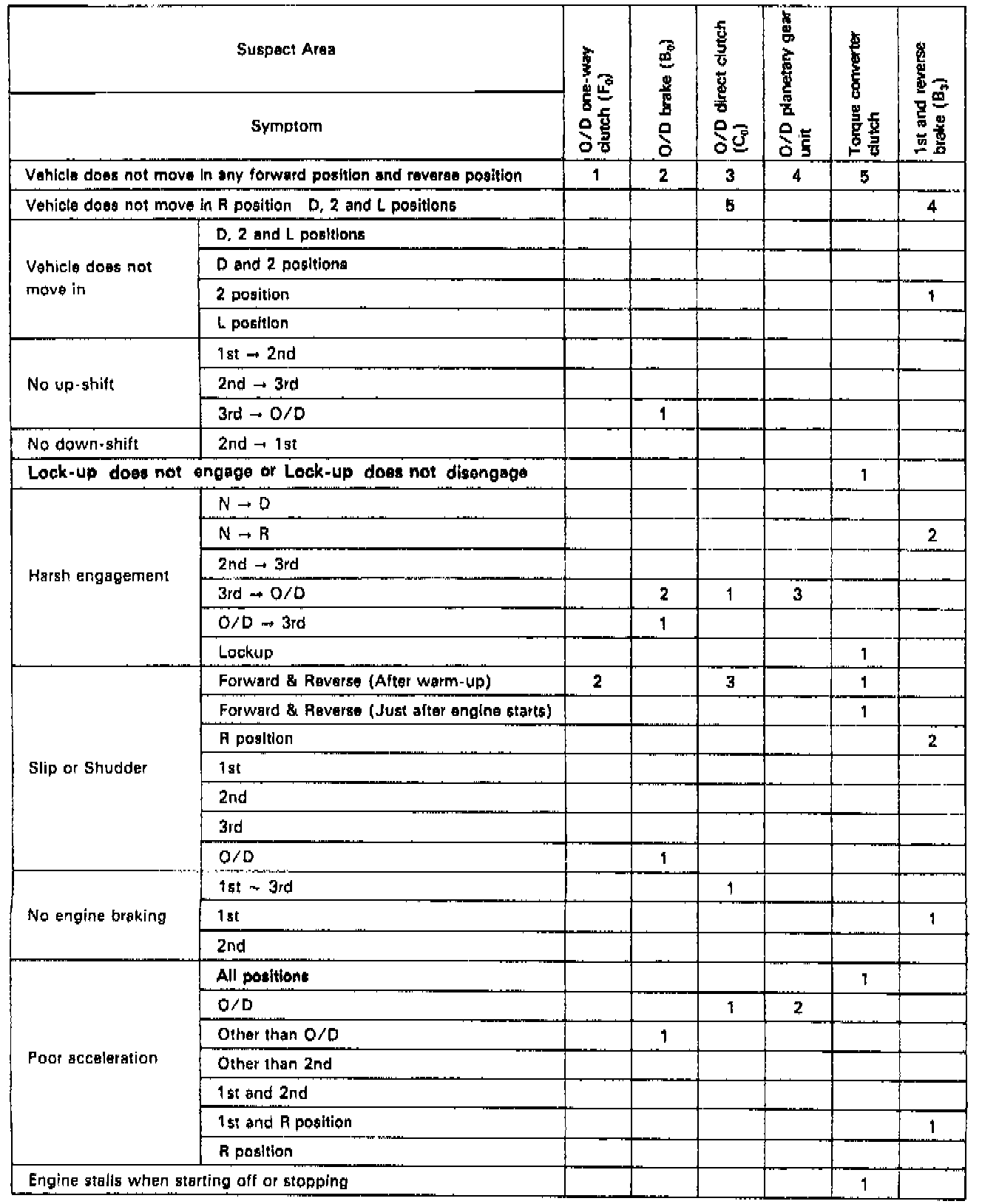

Diagnosis By Symptom: Off-Vehicle Repair (Part 1 Of 2):

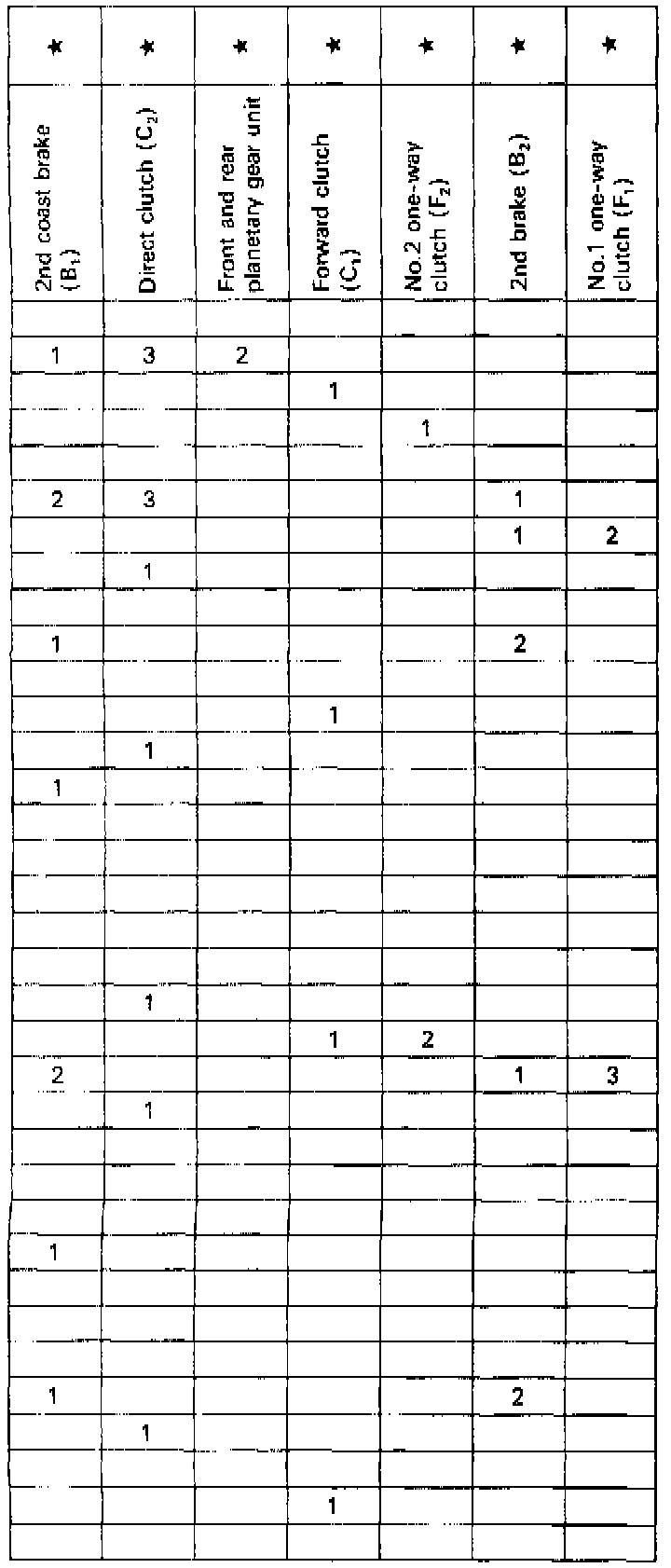

Diagnosis By Symptom: Off-Vehicle Repair (Part 2 Of 2):

Chapter 3. Off-Vehicle Repair
