TE1 Terminal Circuit
CIRCUIT DESCRIPTIONECM displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.

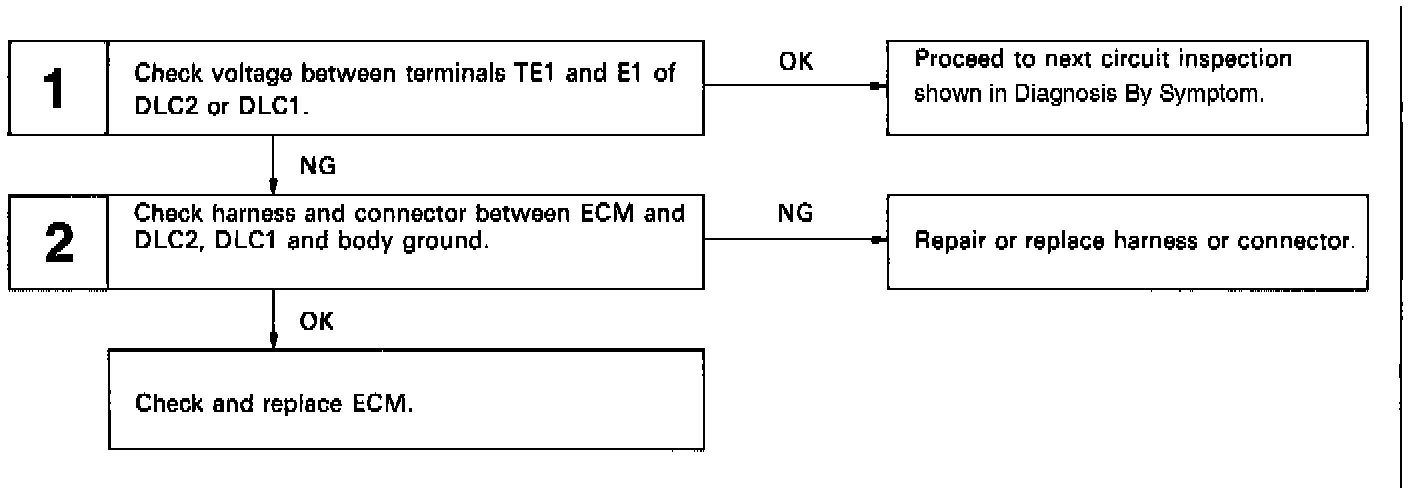

DIAGNOSTIC CHART

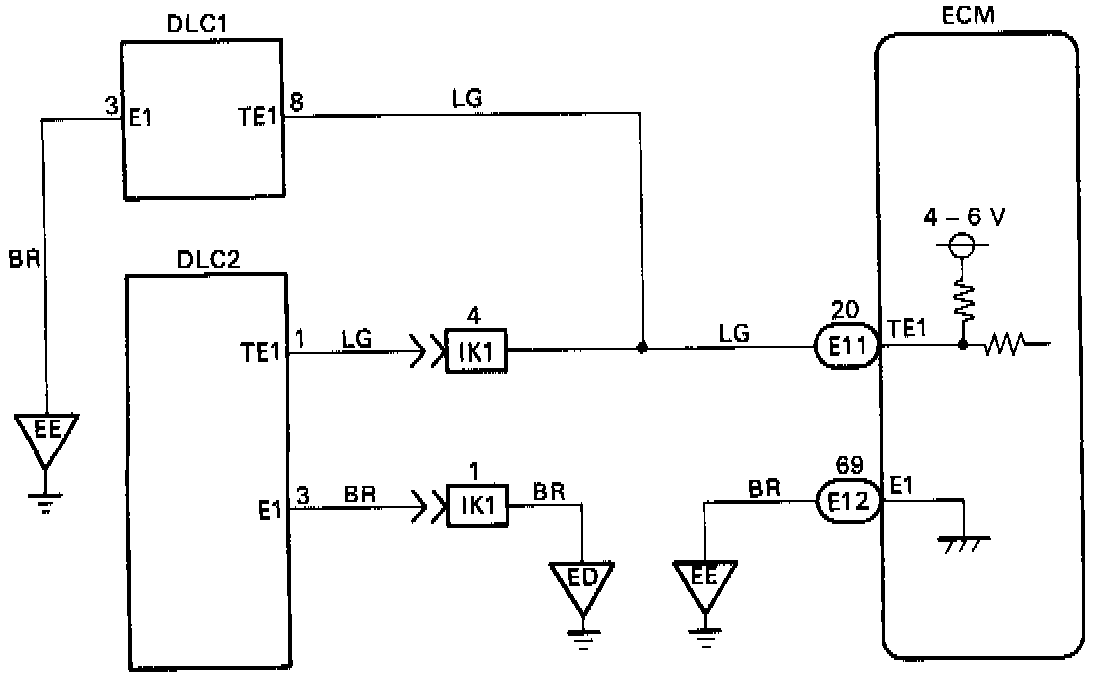

WIRING DIAGRAM

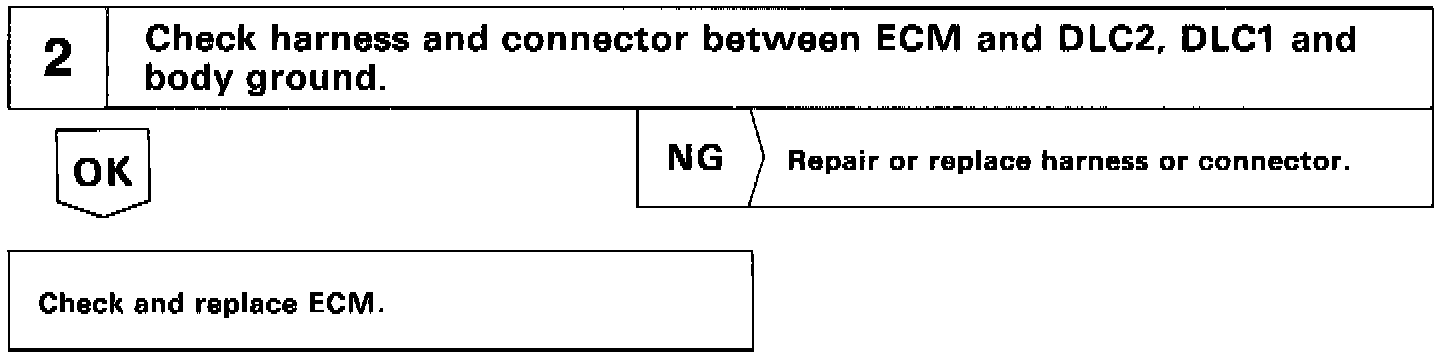

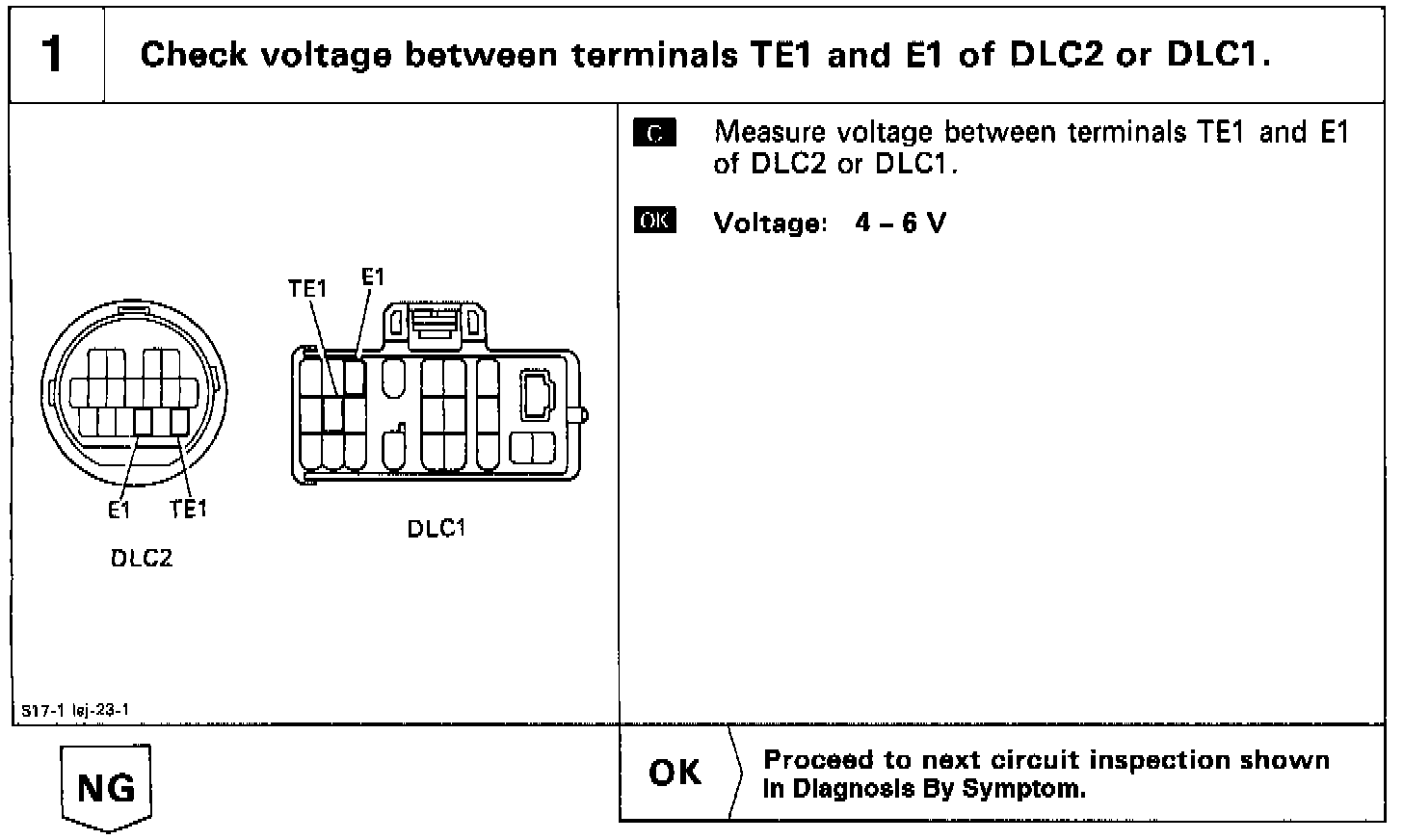

INSPECTION PROCEDURE
ECM displays diagnostic trouble codes using the O/D OFF indicator light when terminals TE1 and E1 of the DLC2 or DLC1 are connected.
DIAGNOSTIC CHART
WIRING DIAGRAM
INSPECTION PROCEDURE
