Manual Shifting Test

HINT: With this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.

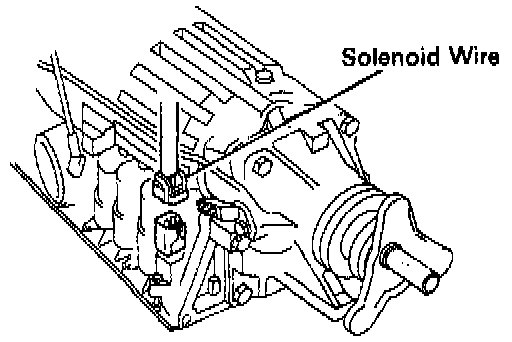

1. DISCONNECT SOLENOID WIRE.








2. INSPECT MANUAL DRIVING OPERATION.
- Check that the shift and gear positions correspond with the table above.

HINT: If the L, 2 and D position gear positions are difficult to distinguish, perform the following road test.

- While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.
- If any abnormality is found in the above test. the problem is in the transmission itself.
3. CONNECT SOLENOID WIRE.
4. CANCEL OUT DIAGNOSTIC TROUBLE CODE.
