Connector Locations

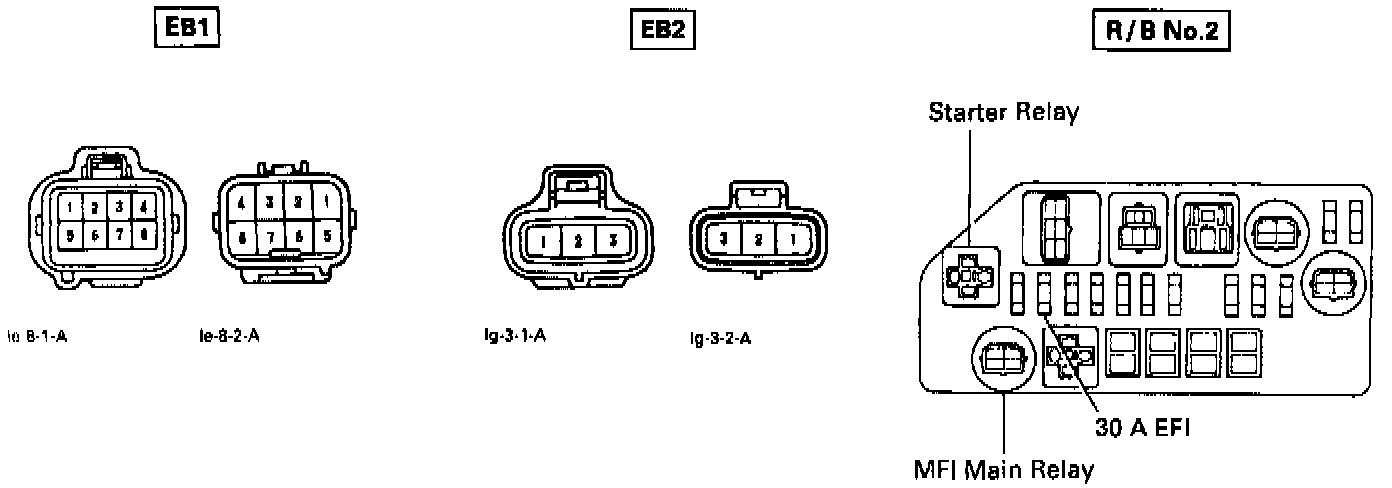

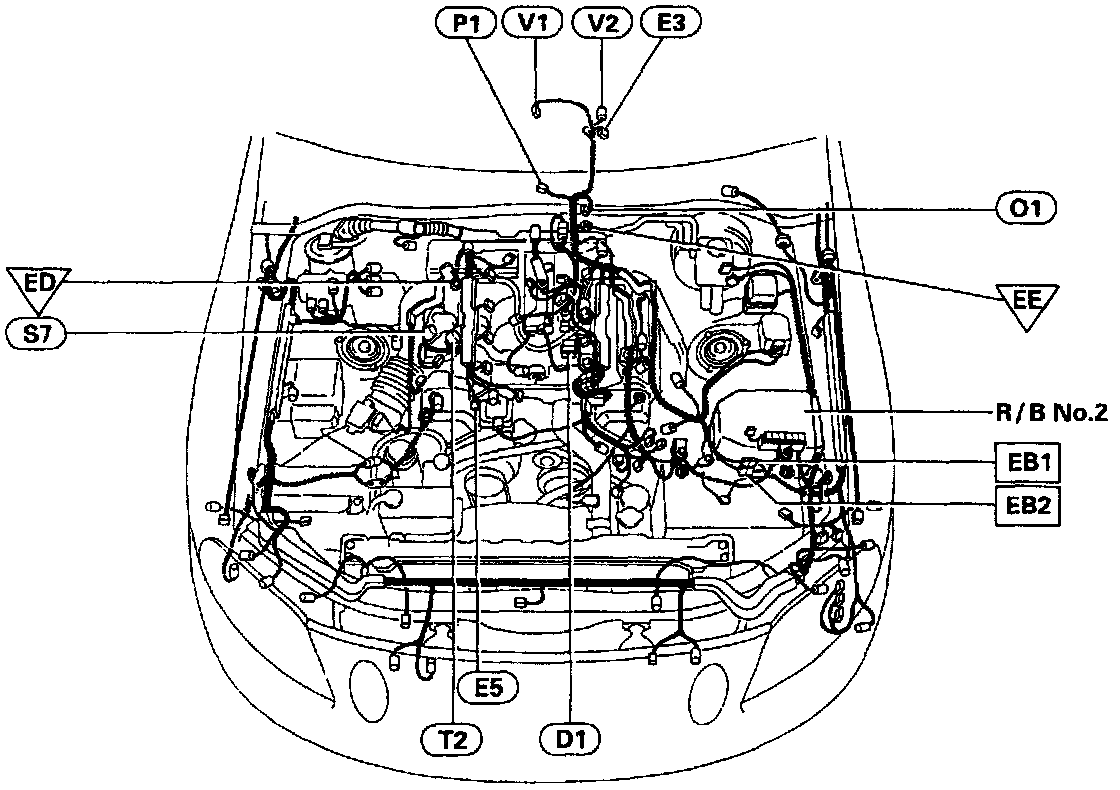

Location of Connectors in Engine Compartment

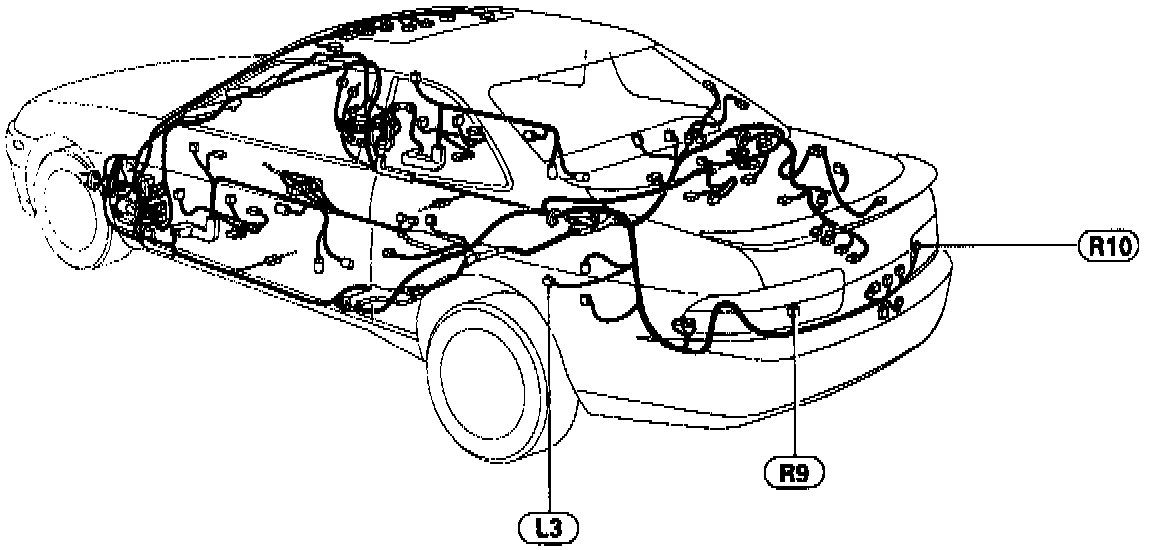

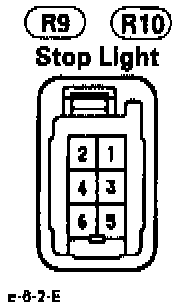

Location of Connectors in Body

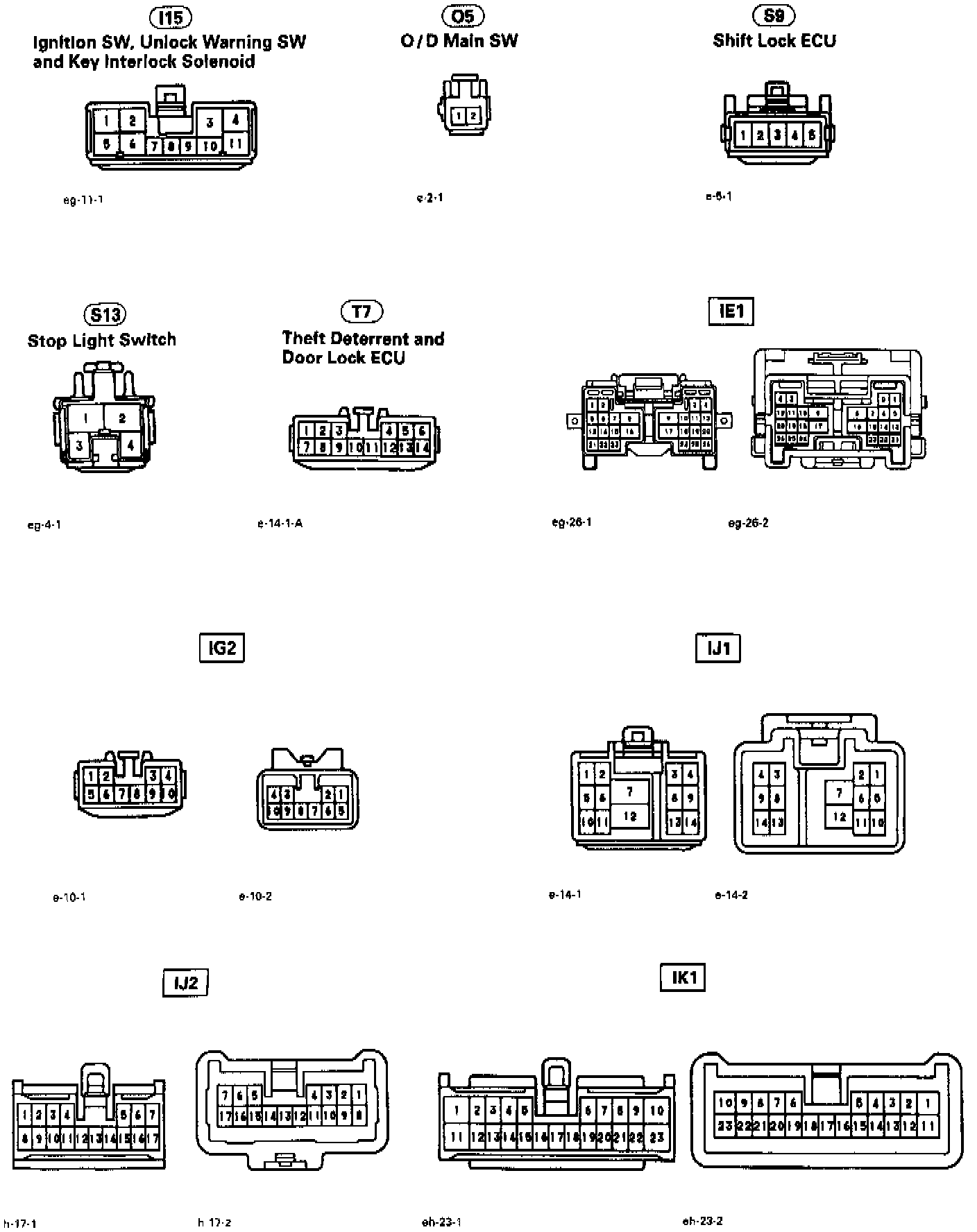

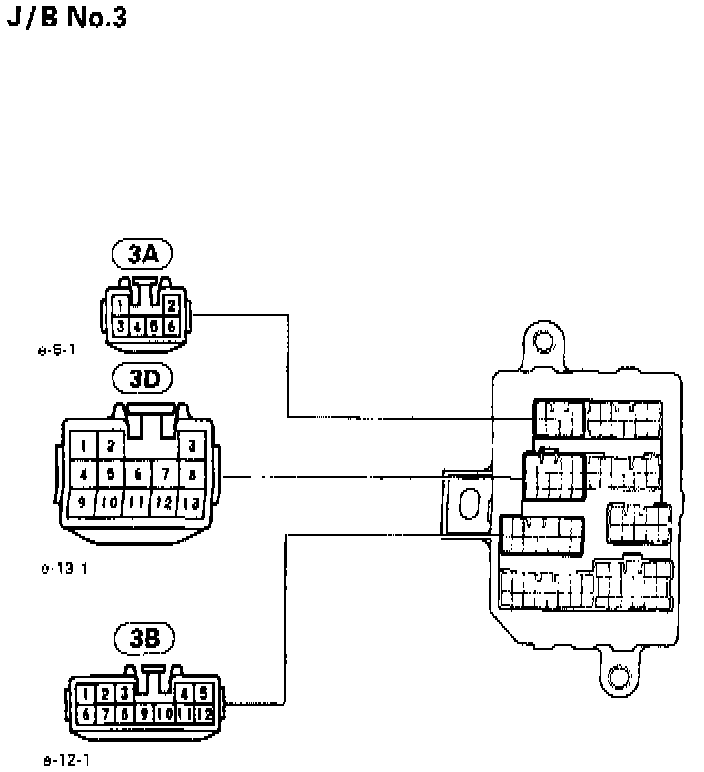

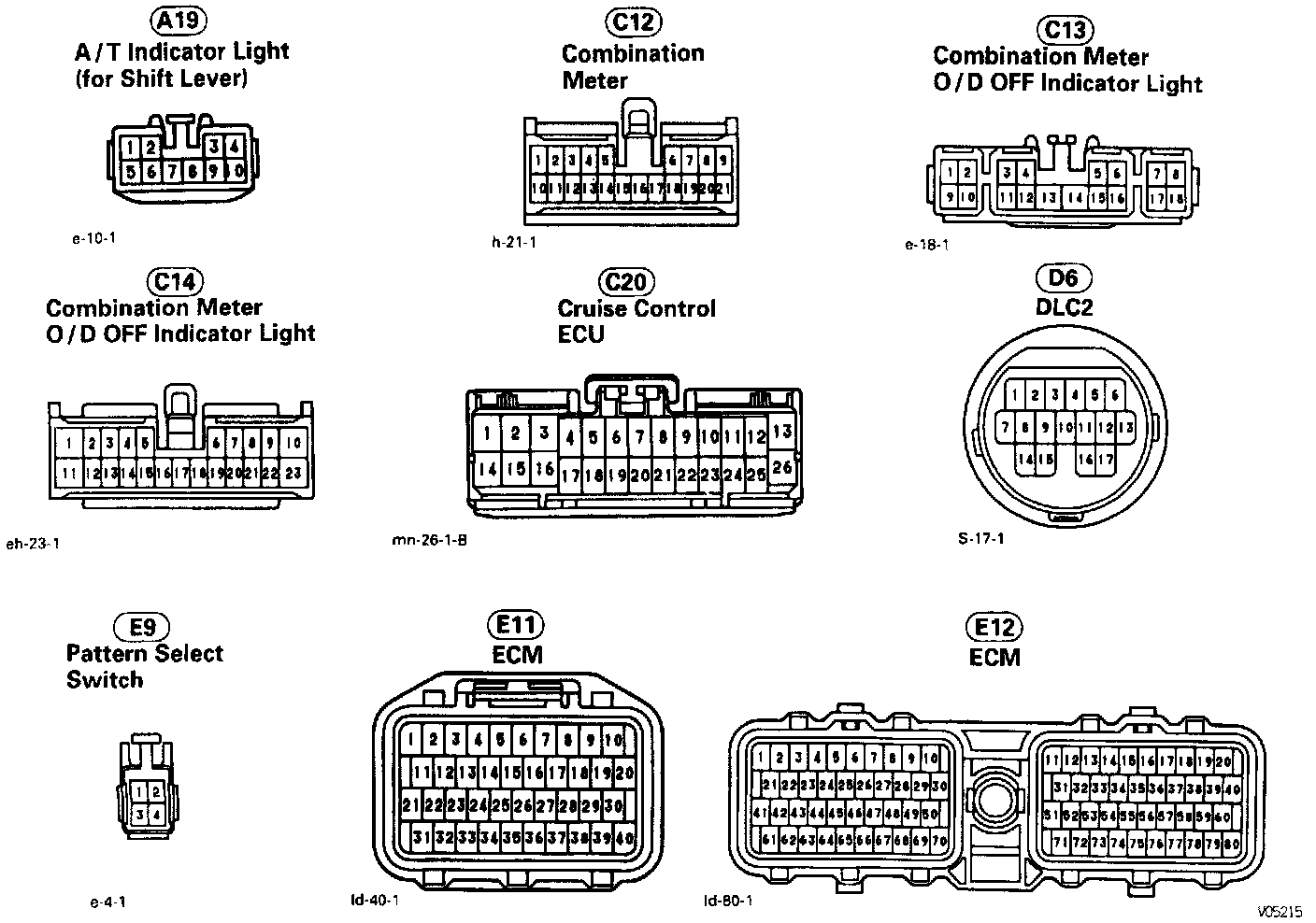

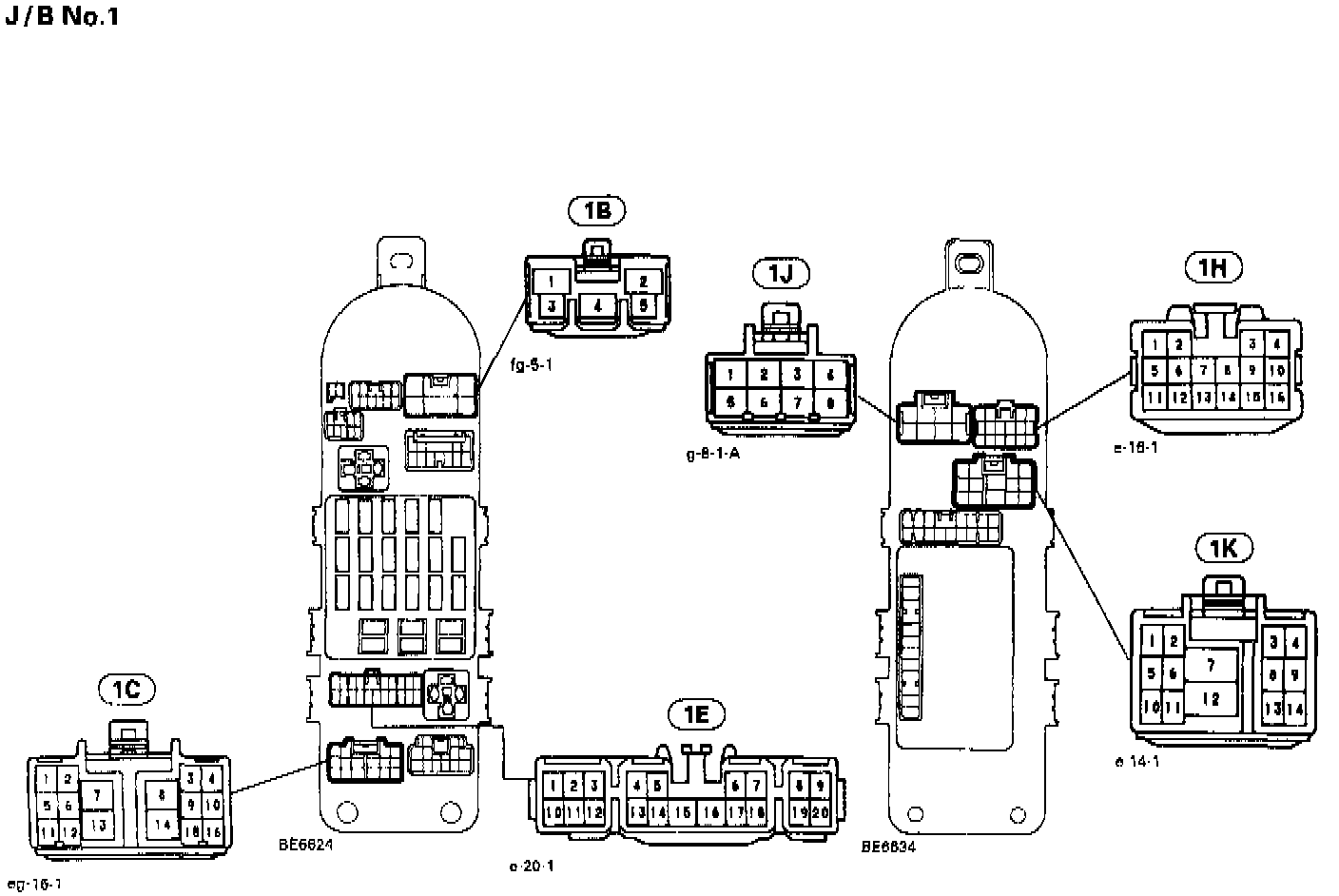

Location of Connectors in Instrument Panel
