RH Ignition Coil

COMPONENTS FOR REMOVAL AND INSTALLATION

REMOVAL:

1. REMOVE RH ENGINE WIRE COVER.
- Refer to Ignition Cable - Service and Repair.

2. DISCONNECT HIGH-TENSION CORD.
3. DISCONNECT IGNITION COIL CONNECTOR.





4. REMOVE IGNITION COIL.

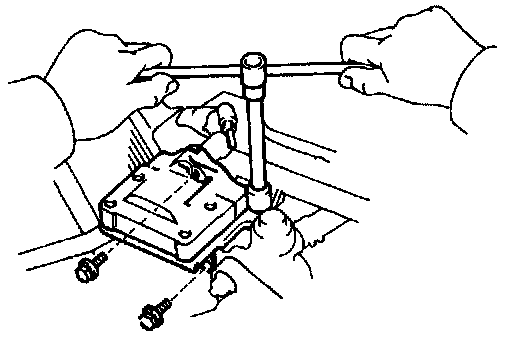

- Remove the 3 bolts, and disconnect the ignition coil.
- Except Calif:
Disconnect the camshaft position sensor connector.
- Remove the ignition coil.

INSTALLATION:





1. INSTALL IGNITION COIL.
- Install the ignition coil with the 3 bolts.





- Except Calif.:
Install the camshaft position sensor connector to the ignition coil bracket.
2. CONNECT IGNITION COIL CONNECTOR.
3. CONNECT HIGH-TENSION CORD.
- Refer to Ignition Cable - Service and Repair.
4. INSTALL RH ENGINE WIRE COVER.
