LH Ignition Coil

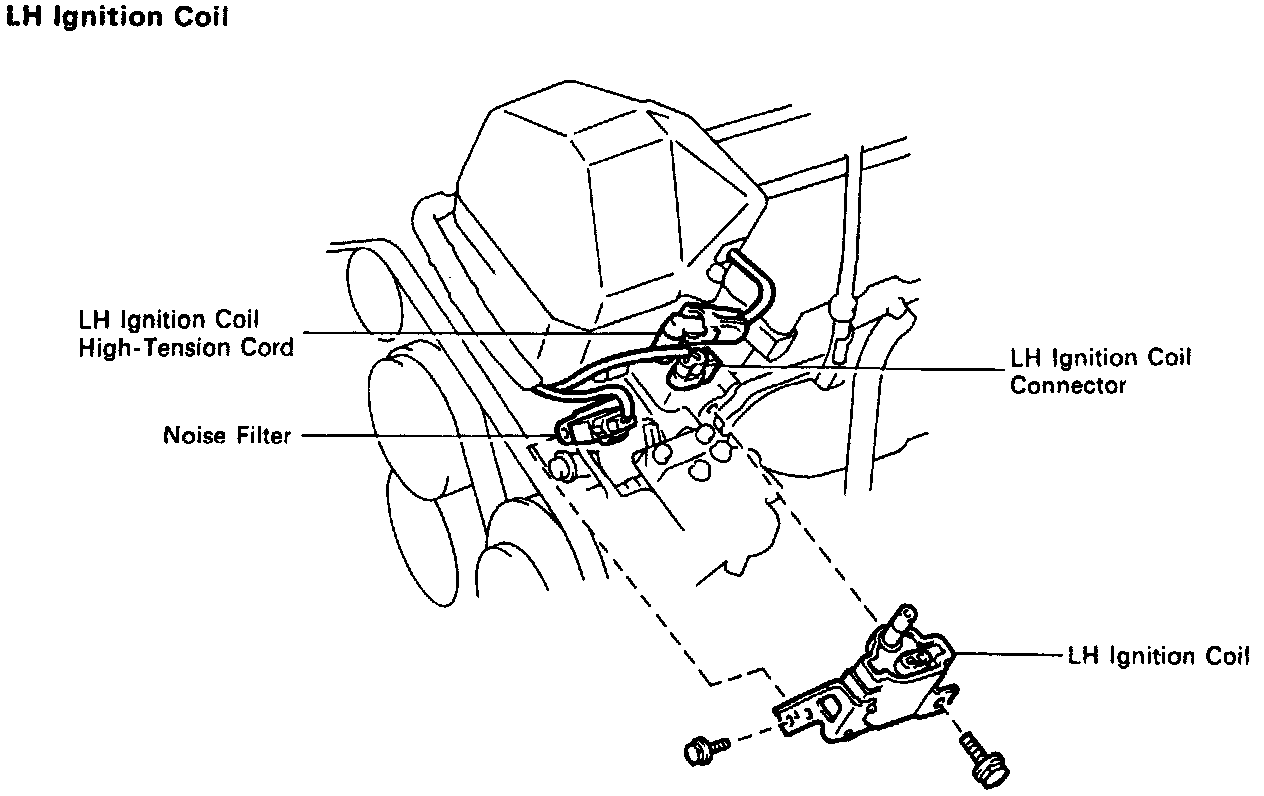

COMPONENTS FOR REMOVAL AND INSTALLATION

REMOVAL:





1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.





2. DISCONNECT IGNITION COIL CONNECTOR.
3. DISCONNECT HIGH-TENSION CORD.
- Refer to Ignition Cable - Service and Repair.
4. DISCONNECT NOISE FILTER FROM IGNITION COIL.

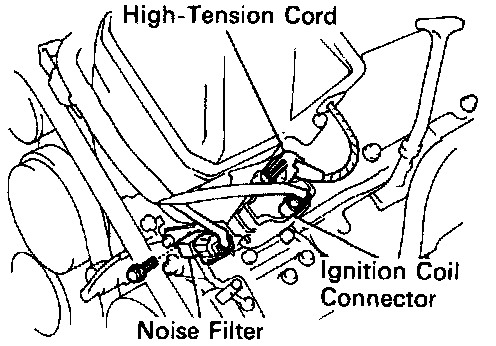

- Remove the bolt, and disconnect the noise filter.





5. REMOVE IGNITION COIL.

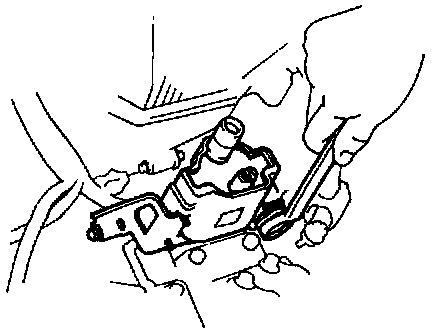

- Remove the 2 bolts and ignition coil.

INSTALLATION:





1. INSTALL IGNITION COIL.
- Install the ignition coil with the 2 bolts.





2. INSTALL NOISE FILTER TO IGNITION COIL.
- Install the noise filter with the bolt.
3. CONNECT HIGH-TENSION CORD.
- Refer to Ignition Cable - Service and Repair.
4. CONNECT IGNITION COIL CONNECTOR.
5. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
