Removal

1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. DRAIN ENGINE COOLANT.





3. REMOVE THROTTLE BODY COVER.
- Disconnect the EVAP hose from the hose clamp.
- Remove the cap nut.

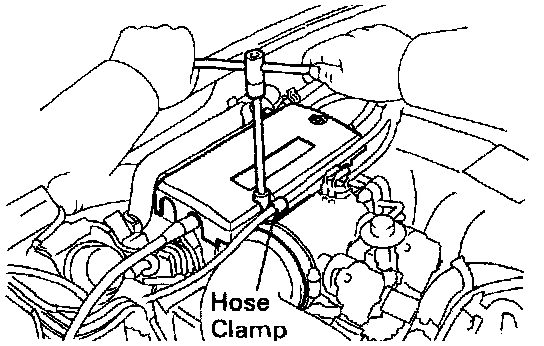

- Loosen the 2 bolts, and remove the hose clamp and throttle body cover.





4. DISCONNECT CONTROL CABLES FROM THROTTLE BODY.

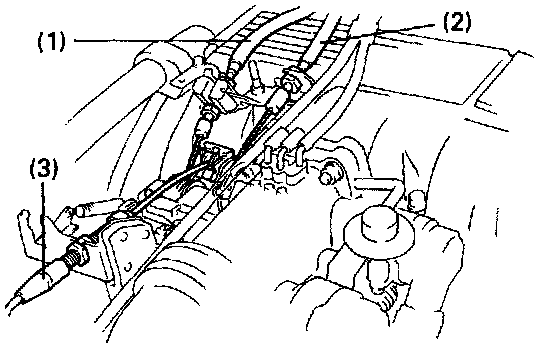

- Disconnect the following cables:
- Accelerator cable
- Transmission throttle control cable
- Cruise control actuator cable

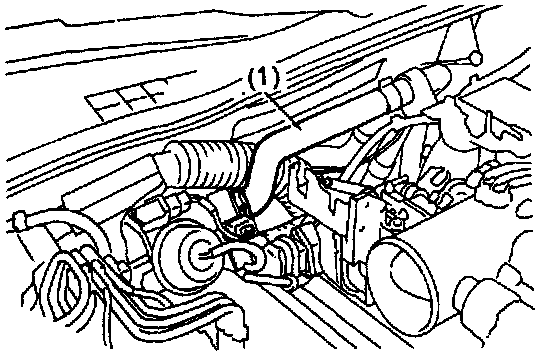

5. REMOVE INTAKE AIR CONNECTOR.

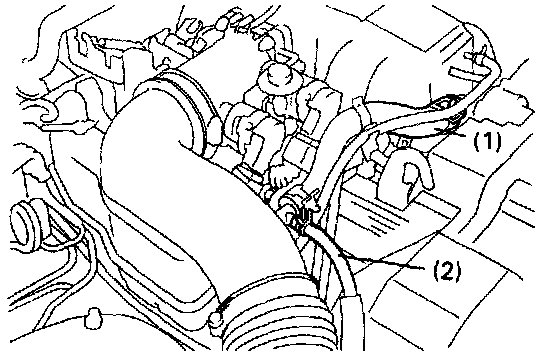

- Disconnect the following hoses:
- Air hose from Idle Air Control (IAC) valve
- Air hose (from air control valve on PS pump) from intake air connector





- Remove the bolt holding the intake air connector to the cylinder head cover.
- Loosen the 2 hose clamps.
- Disconnect the intake air connector from the throttle body and air cleaner hose, and remove the intake air connector.





6. REMOVE UPPER HIGH-TENSION CORD COVER.
- Remove the 2 bolts.

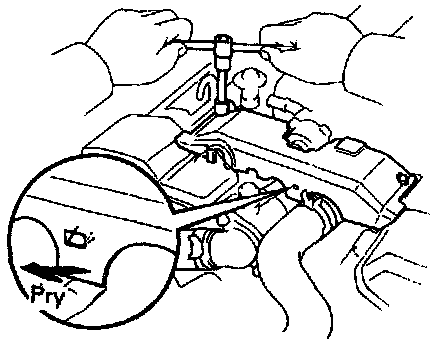

- Disconnect the front side claw groove of the upper cord cover from the claw of lower cord cover, and remove the upper cord cover.





7. REMOVE THROTTLE BODY.

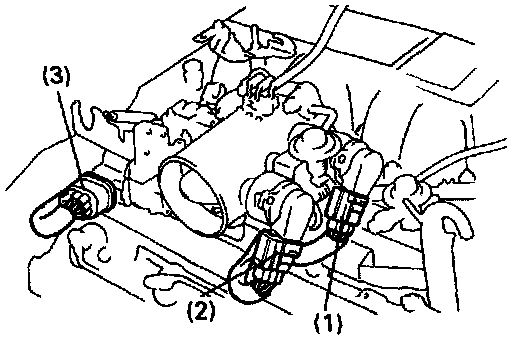

- Disconnect the following connectors:
- Throttle position sensor connector.
- w/ TRAC: Sub -throttle position sensor connector.
- w/ TRAC: Sub-throttle actuator connector.

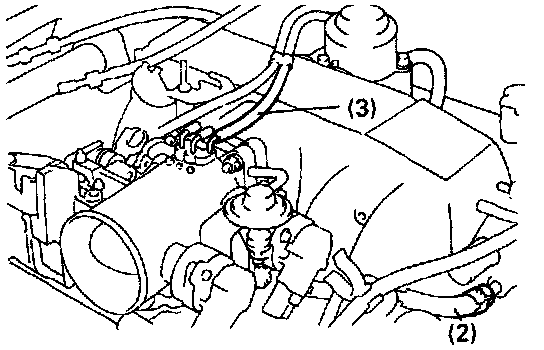

- Disconnect the following hoses:
- Heater water hose from heater water valve.





- Water bypass hose from IAC valve.
- Vacuum hose from throttle body.

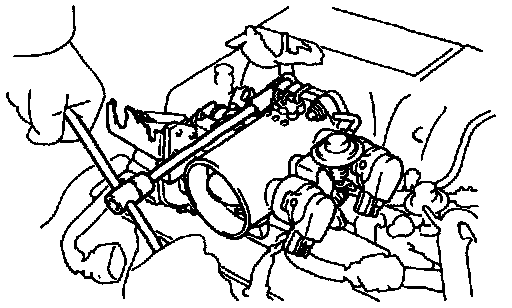

- Remove the 2 bolts and 2 nuts, disconnect the throttle body from the air intake chamber.

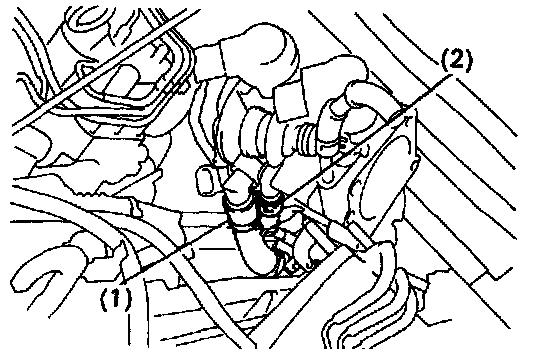

- Disconnect the following hoses from the throttle body and remove the throttle body:
- PCV hose from throttle body
- Water bypass hose from throttle body
- Remove the throttle body gasket.





- Remove the 2 water bypass hoses and pipe assembly.
