Removal

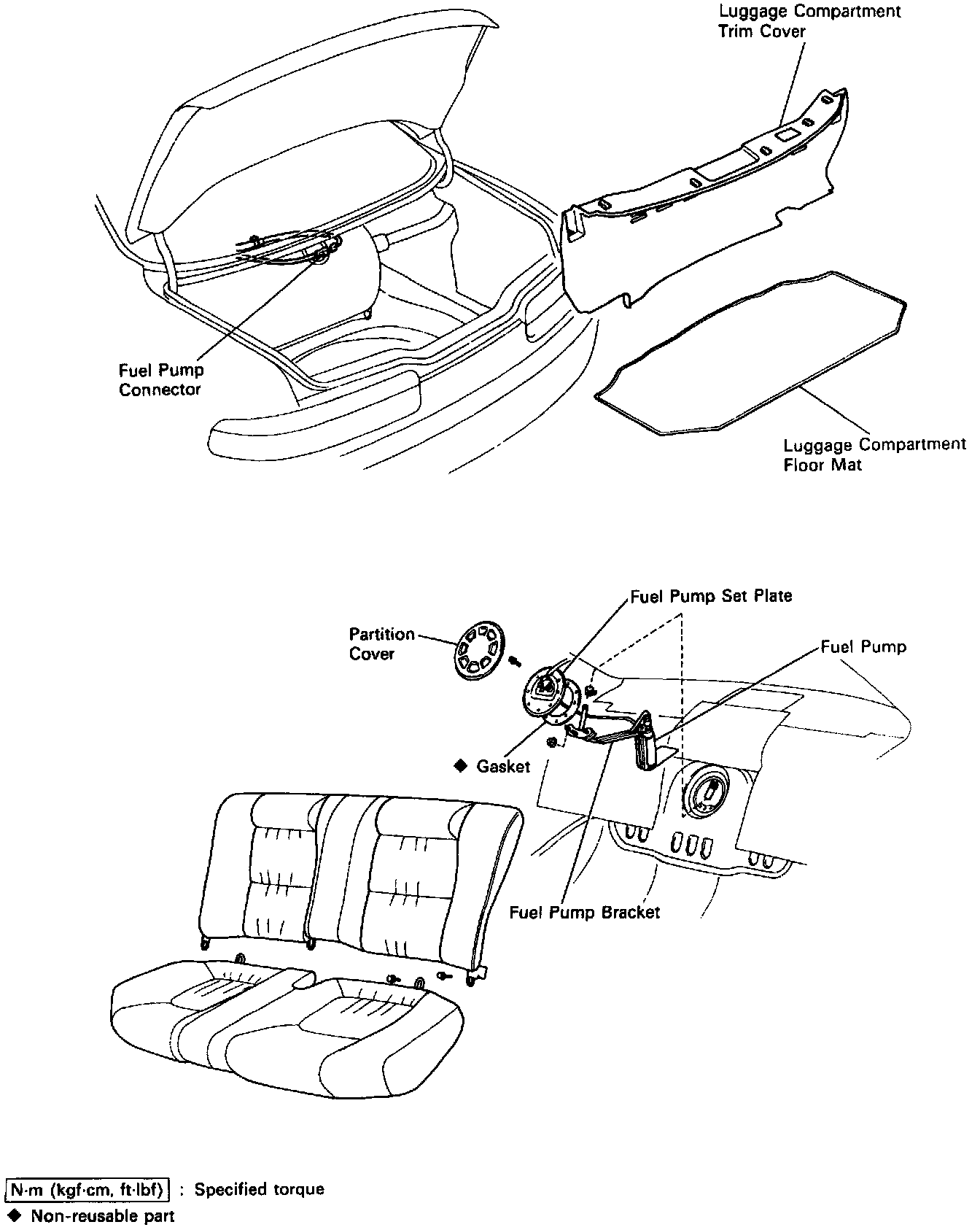

FUEL PUMP REMOVAL:

CAUTION: Do not smoke or work near an open flame when working on the fuel pump.

1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY:

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT.
3. REMOVE SPARE TIRE.
4. REMOVE LUGGAGE COMPARTMENT TRIM COVER.

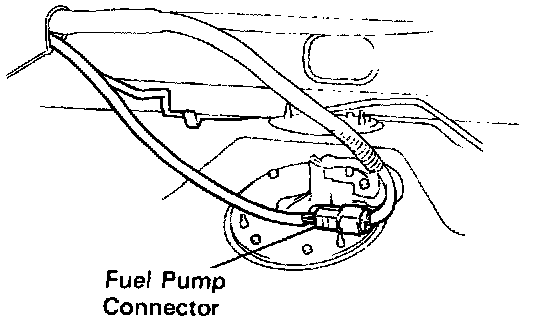

5. DISCONNECT FUEL PUMP CONNECTOR.
6. REMOVE SEAT CUSHION AND BACK.





7. REMOVE PARTITION COVER.

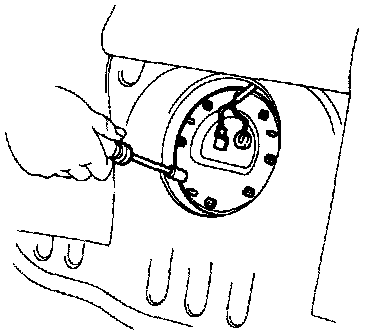

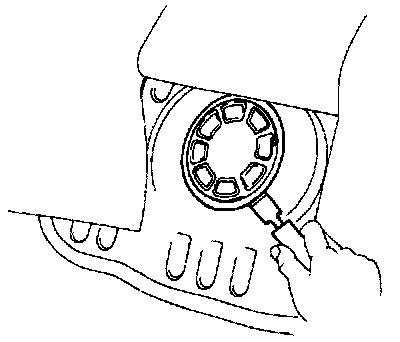

- Using a scraper, pry out the partition cover.

8. REMOVE FUEL PUMP.

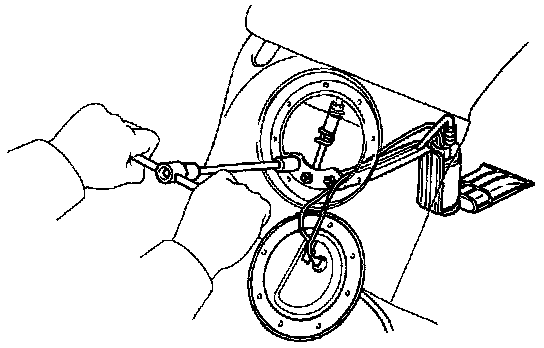

- Remove the 8 bolts, and disconnect the fuel pump set plate from the fuel tank.





- Remove the 3 nuts, and disconnect the fuel pump bracket from the fuel tank.
- Disconnect the fuel hose from the fuel pump bracket, and remove the fuel pump, bracket and set plate assembly.
