Installation

COMPONENTS FOR REMOVAL AND INSTALLATION

1. INSTALL FUEL PRESSURE REGULATOR AND FUEL RETURN PIPE.
- Fully loosen the lock nut on the pressure regulator.

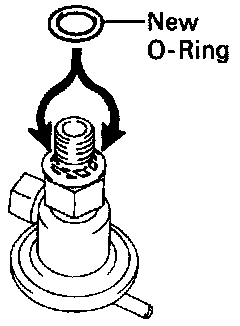

- Apply a light coat of gasoline to a new 0-ring and install it to the pressure regulator.

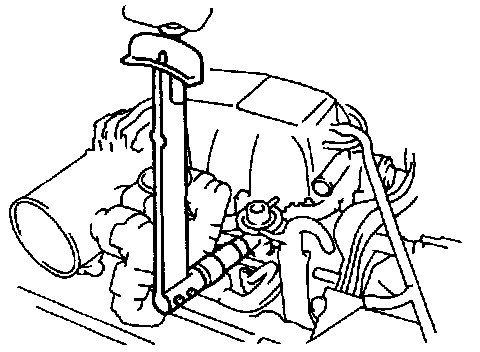

- Lift up the water bypass hose between the Idle Air Control (IAC) valve and throttle body, and completely insert the pressure regulator into the delivery pipe by hand.

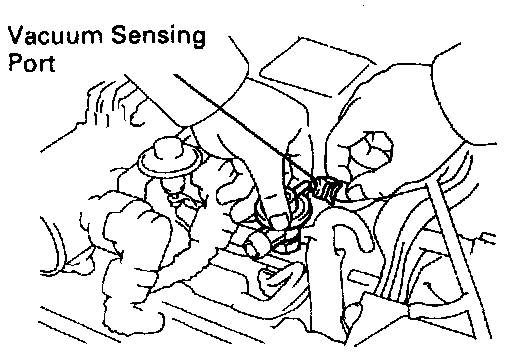

- Turn the pressure regulator counterclockwise until the vacuum sensing port faces in the direction indicated in the illustration.





- Connect the fuel return pipe to the pressure regulator with 2 new gaskets and the union bolt.

Torque: 35 Nm (26 ft lb)

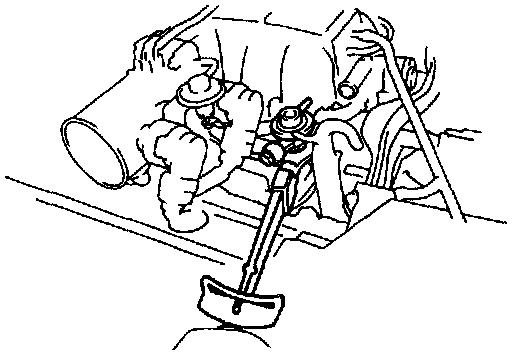

- Tighten the lock nut.

Torque: 29 Nm (22 ft lb)





2. CONNECT VACUUM SENSING HOSE TO FUEL PRESSURE REGULATOR.





3. INSTALL RH ENGINE WIRE COVER.

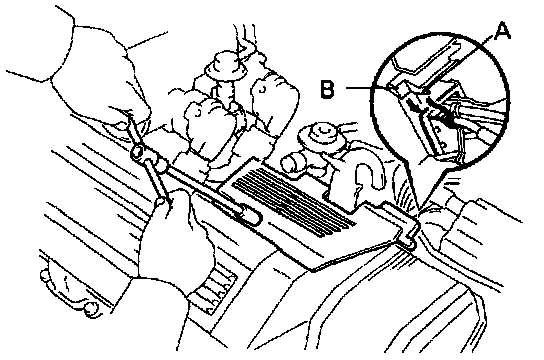

- Fit the portions A and B of the engine wire cover, matching them with the lower high-tension cord cover and No.3 timing belt cover.
- Install the engine wire cover with the bolt.





4. INSTALL UPPER HIGH-TENSION CORD COVER.
- Fit portion A of the upper high-tension cord cover matching the top of the lower high-tension cord cover.

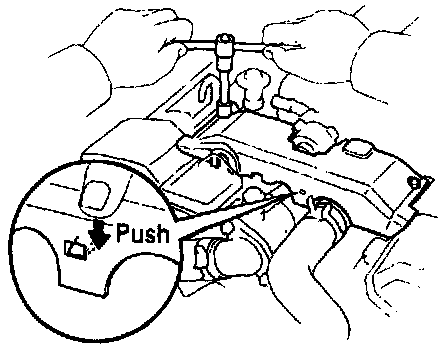

- Push the front side of the upper high-tension cord cover, and fit the front side claw groove of the upper high -tension cord cover to the claw of the lower high -tension cord cover.
- Install the upper high-tension cord cover with the 2 bolts.





5. INSTALL INTAKE AIR CONNECTOR.
- Connect the end portions of the intake air connector to the throttle body and air cleaner hose.
- Tighten the 2 hose clamps.

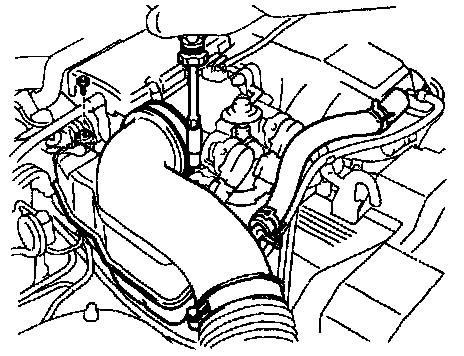

- Install the bolt holding the intake air connector to the cylinder head cover.

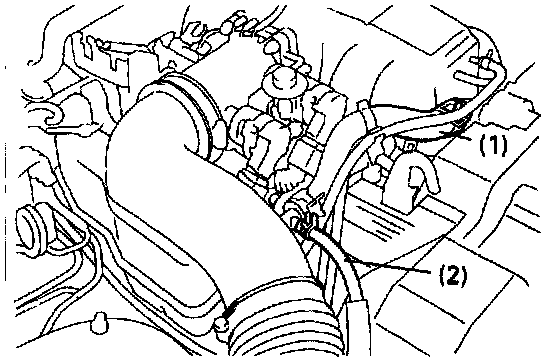

- Connect the following hoses:
- Air hose to IAC valve.
- Air hose (from air control valve on PS pump to intake air connector.
6. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
7. CHECK FOR FUEL LEAKS.
