FUEL SYSTEM:

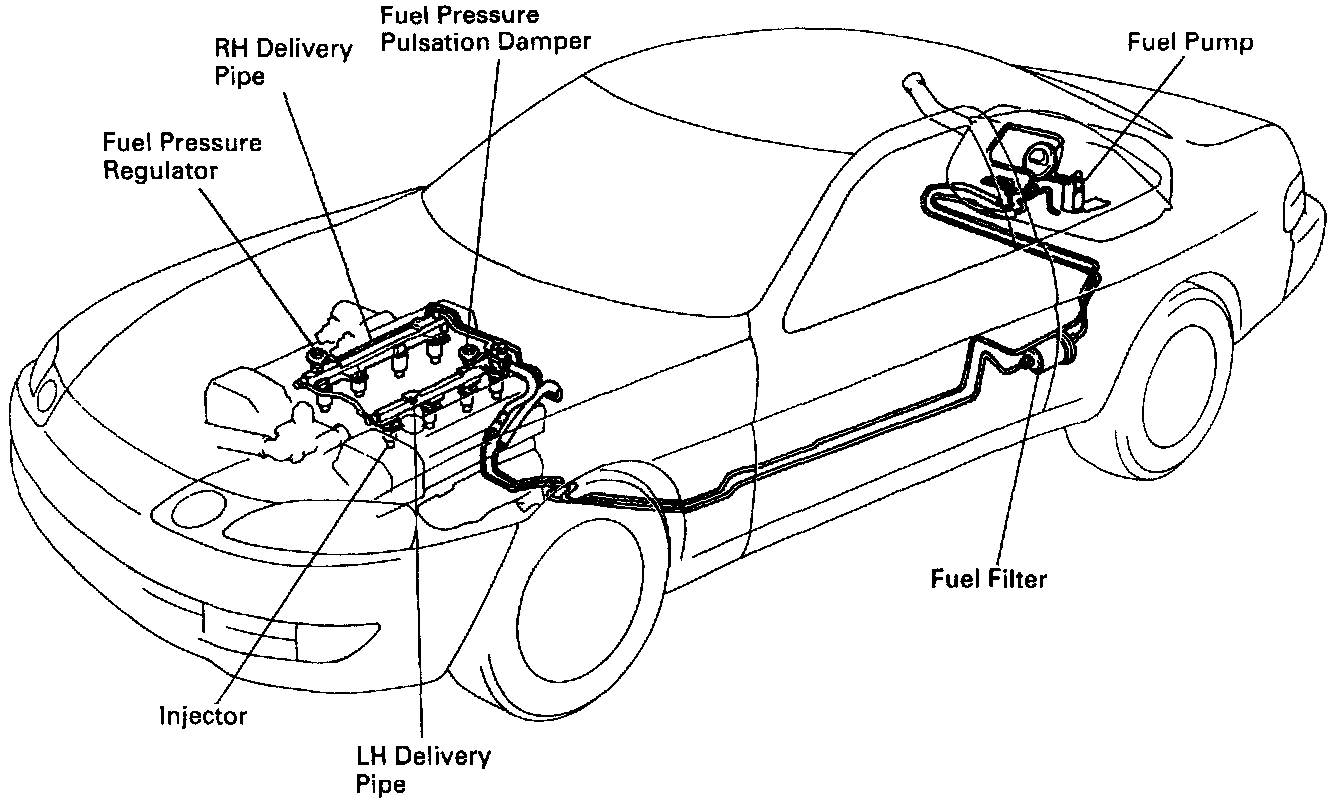

Fuel is pumped up by the fuel pump, which flows through the fuel filter under pressure through the fuel pipe to the delivery pipe where it is distributed to each injector.
The fuel pressure regulator adjusts the pressure of the fuel from the fuel line (high pressure side) to a pressure 284 kPa (2.9 kgf/cm2, 41 psi) higher than the pressure inside the intake manifold, and excess fuel is returned to the fuel tank through the return pipe.
When the engine is hot, the fuel pressure is increased to control percolation in the fuel system and improve restartability and idling stability.
The pulsation damper absorbs the slight fluctuations in fuel pressure caused by the injector.
The injector operate on input of injector signals from the ECM and inject fuel into the intake manifold.





AIR INDUCTION SYSTEM:

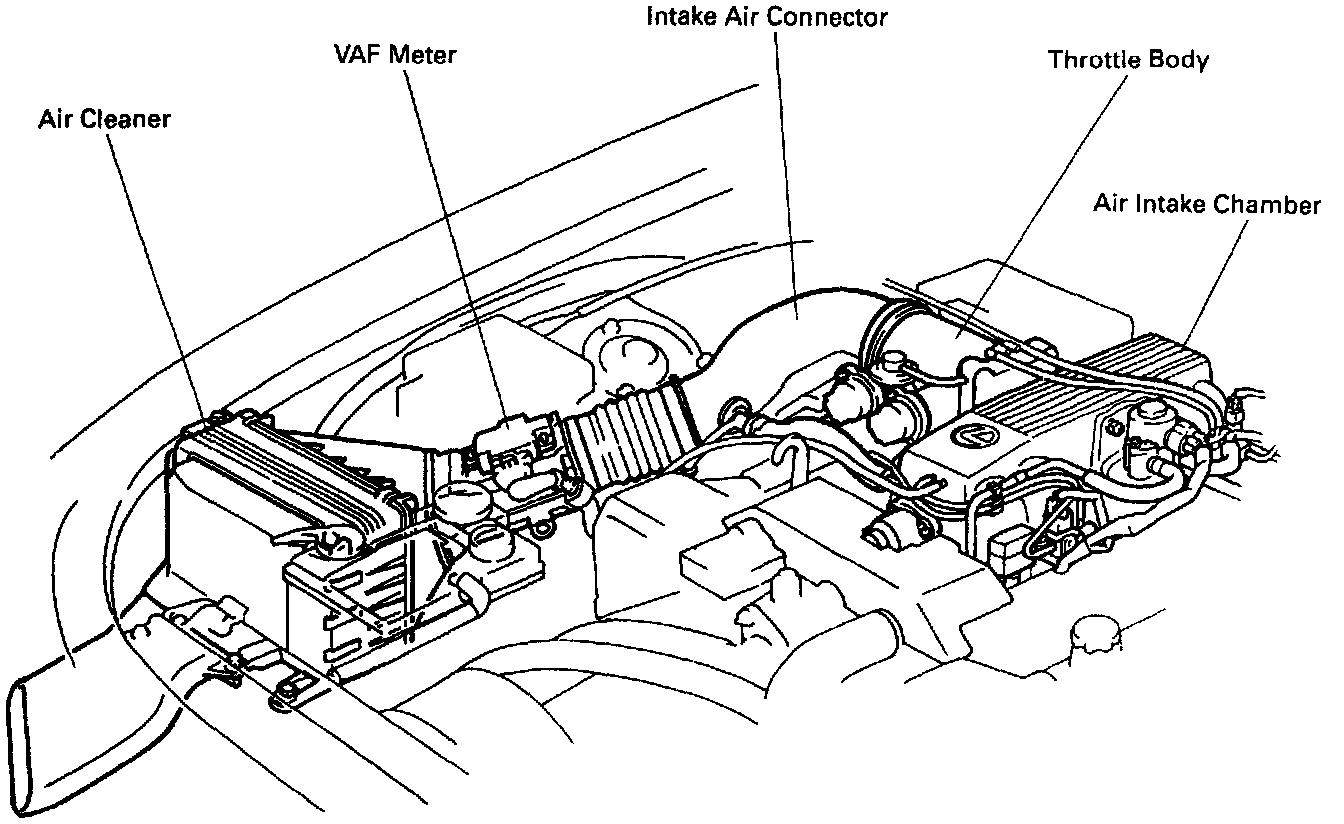

Air filtered through the air cleaner passes through the VAF meter and the amount flowing to the air intake chamber is determined according to the throttle valve opening in the throttle body and the RPM.
VAF meter measures the air intake flow to the engine by the swirl frequency.
Located in the throttle body is the throttle valve, which regulates the volume of air intake to the engine. Air intake controlled by the throttle valve opening is distributed from the intake chamber to the manifold of each cylinder and is drawn into the combustion chamber.
At low air temperature the IAC valve opens and the air flows through the AC valve, as well as the throttle body, into the air intake chamber. During engine warming up, even if the throttle valve is completely closed, air flows to the air intake chamber, thereby increasing the idle speed (first idle operation).
The air intake chamber prevents pulsation of the intake air, reduces the influence on the VAF meter and increase the air intake volume. It also prevents intake air interference in each cylinder.





ELECTRONIC CONTROL SYSTEM:

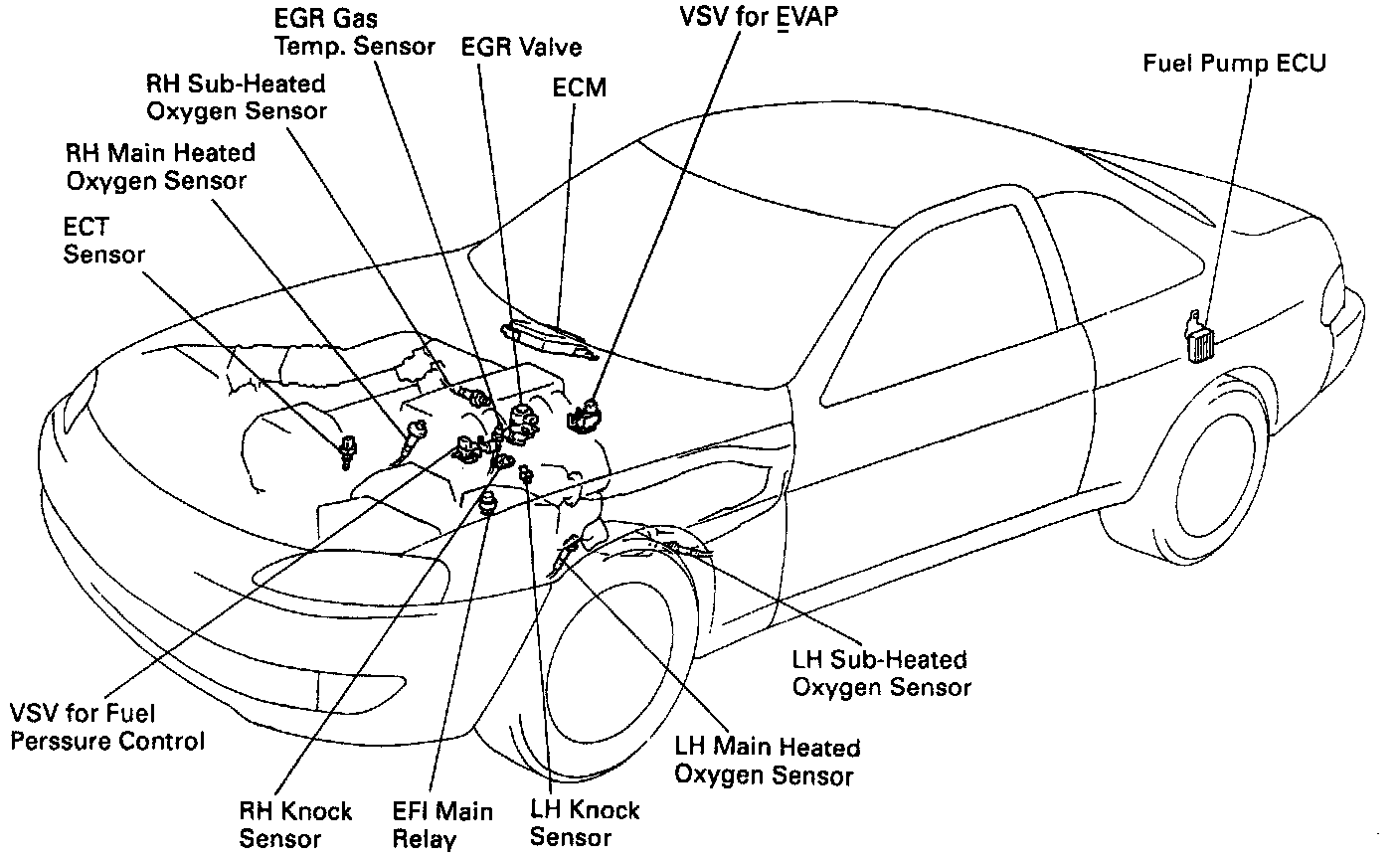

The control system consists of sensors which detect various engine conditions, and an ECM which determines the injection volume (timing) based on the signals from the sensors. The various sensors detect the air intake volume, RPM, oxygen density in the exhaust gas, ECT, IAT and atmospheric pressure etc. and convert the information into an electrical signal which is sent to the ECM. Based on these signals. the ECM calculates the optimum ignition timing for the operaing conditions and signals the injectors to inject fuel.
The ECM not only controls the fuel injection timing, but also the self diagnostic function which records the occurrence of a malfunction, ignition timing control, IAC, EGR control, fuel pressure control and fuel pump control.
