Evaporative Emissions System: Description and Operation

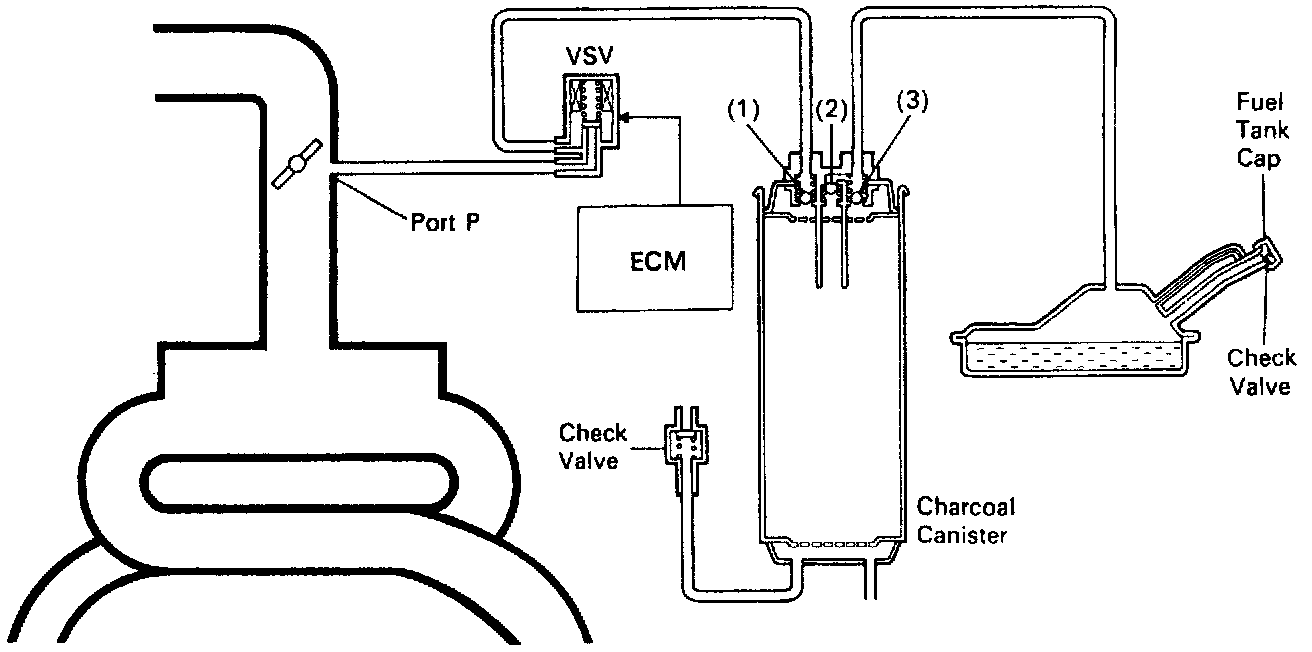

To reduce HC emission, evaporated fuel from the fuel tank is routed through the charcoal canister to the air intake chamber for combustion in the cylinders.
To reduce HC emission, evaporated fuel from the fuel tank is routed through the charcoal canister to the air intake chamber for combustion in the cylinders.
