TE1, TE2 Terminal Circuit

CIRCUIT DESCRIPTION
Terminal TE1 is located in the data link connector 1 in the engine compartment and terminals TE1 and TE2 are located in the data link 'connector 2 in the cabin. When these terminals are connected with the E1 terminal, diagnostic trouble codes in normal mode or test mode can be read from the malfunction indicator lamp on the combination meter.

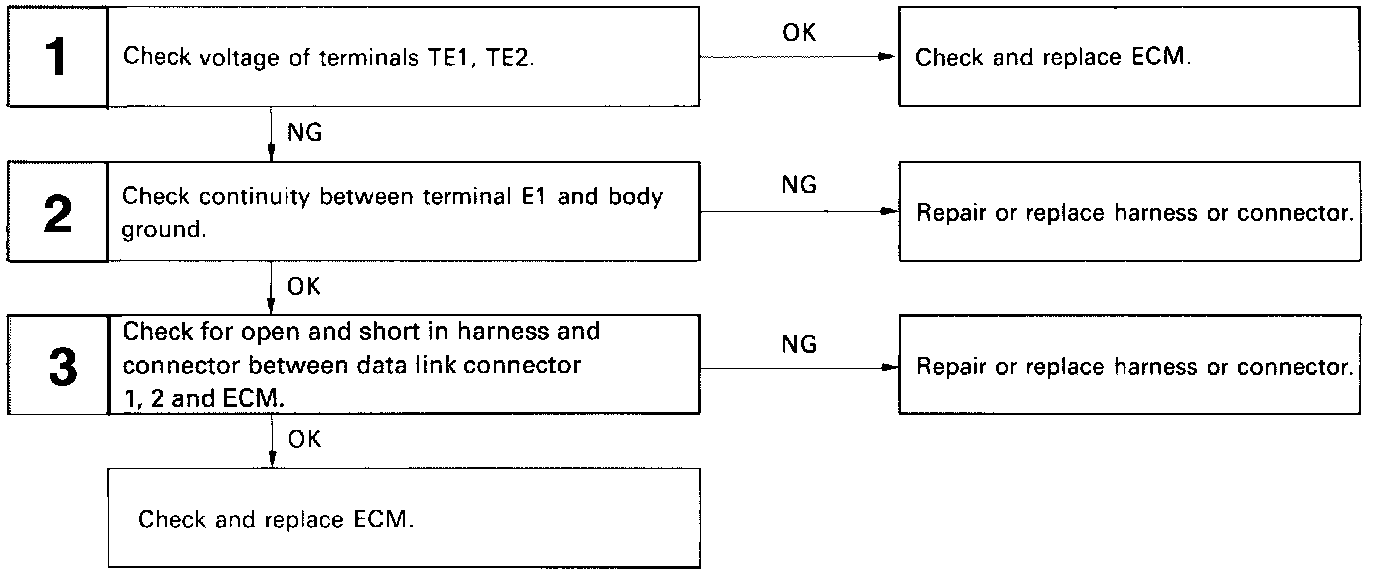

DIAGNOSTIC CHART

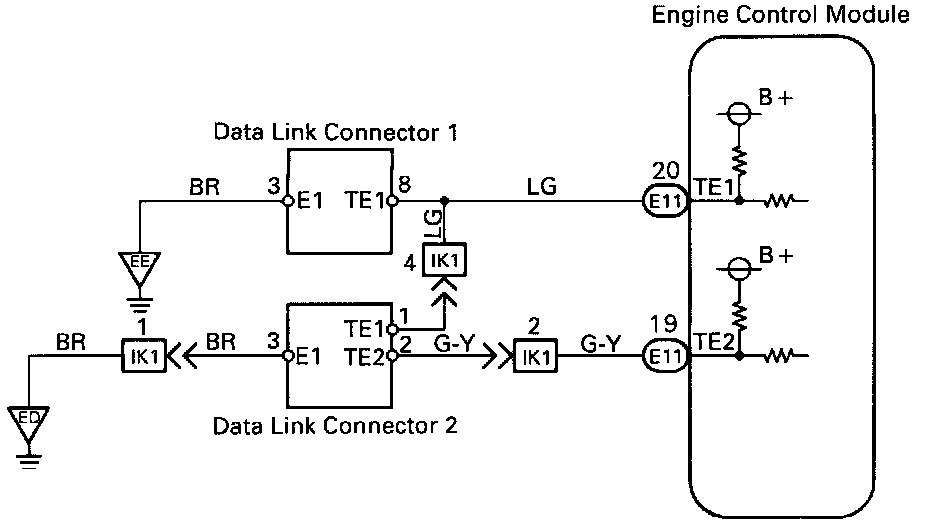

WIRING DIAGRAM

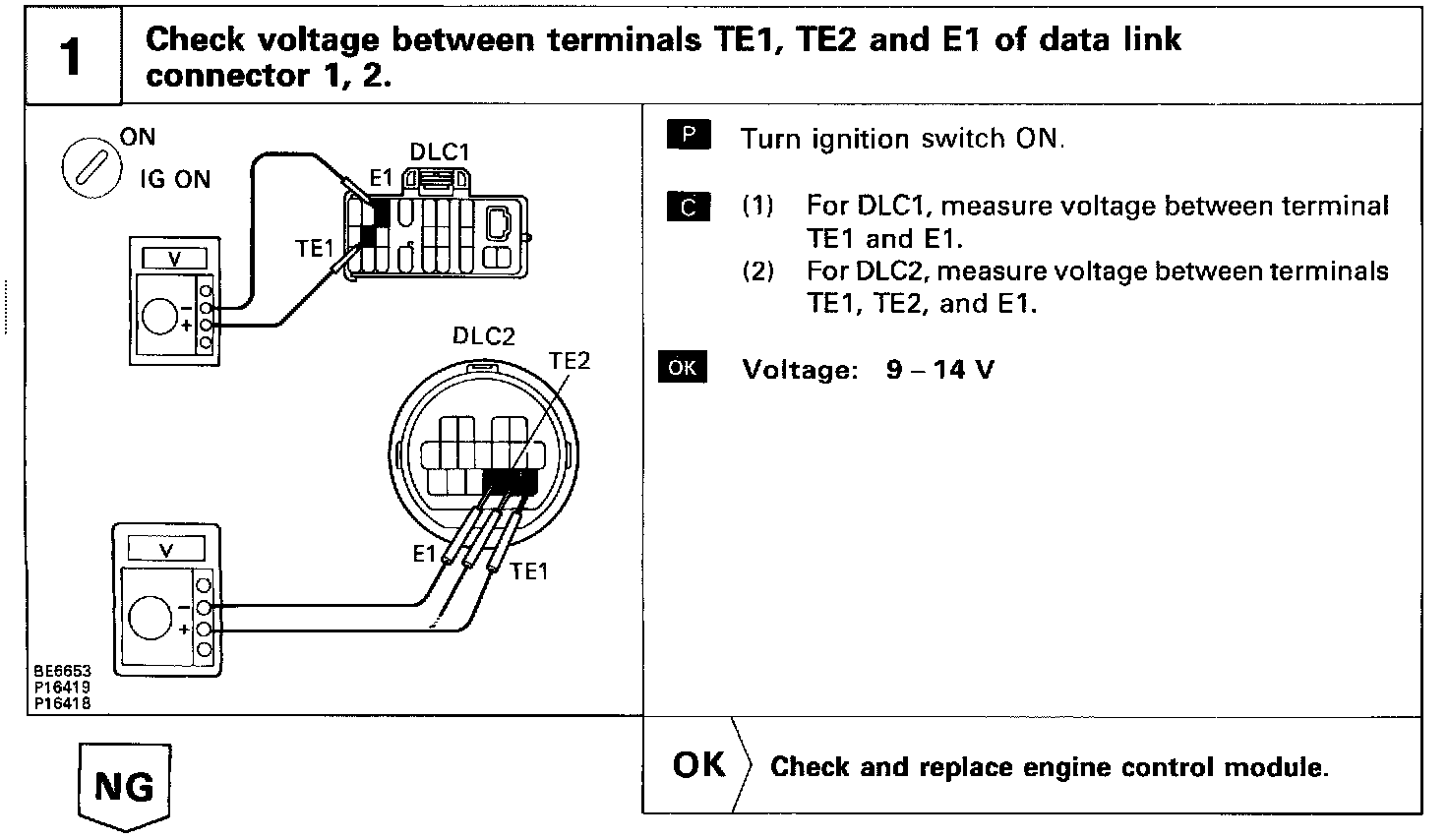

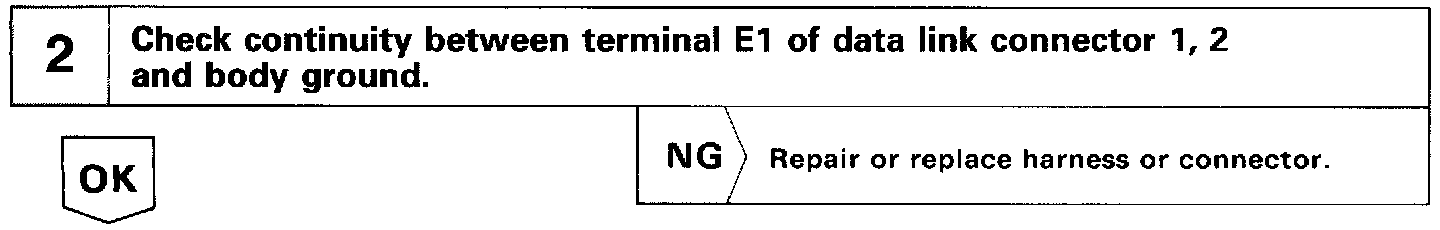

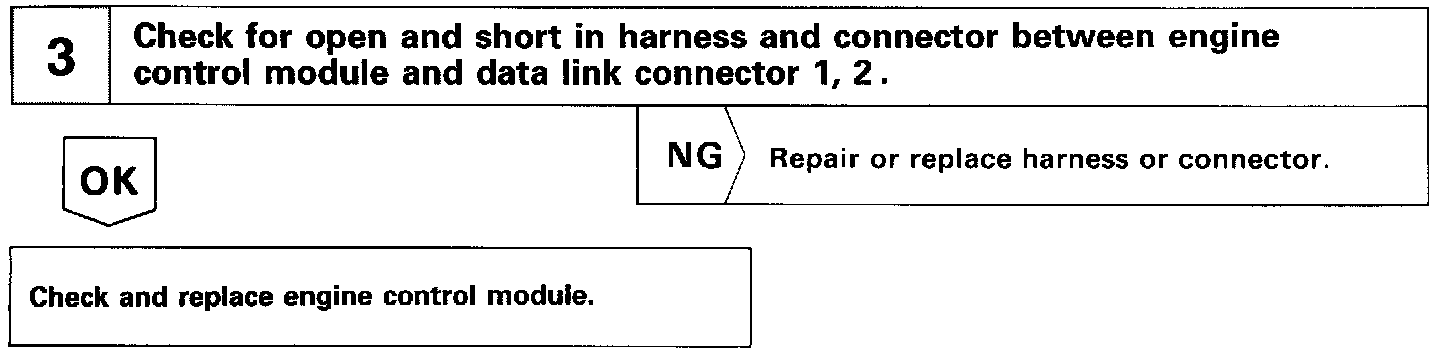

INSPECTION PROCEDURE
