Injector Circuit

CIRCUIT DESCRIPTION
The injectors provide fuel to the intake manifold. They inject fuel into the cylinders based on the signals from the engine control module.








INSPECTION USING OSCILLOSCOPE

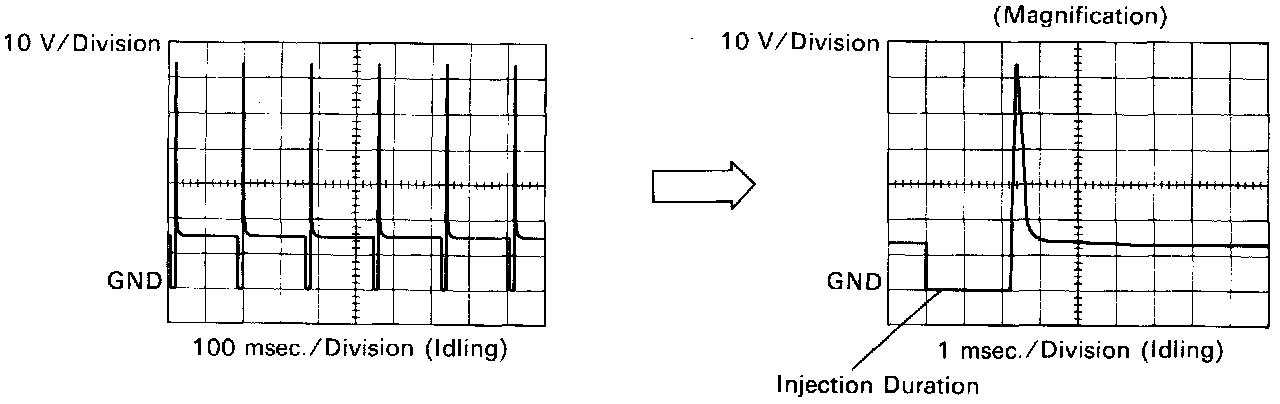

- INJECTOR SIGNAL WAVEFORM:
With the engine idling measure waveform between terminals #10 ~ #40 and EO1 of engine control module.

HINT: The correct waveform appears as shown in the images above.

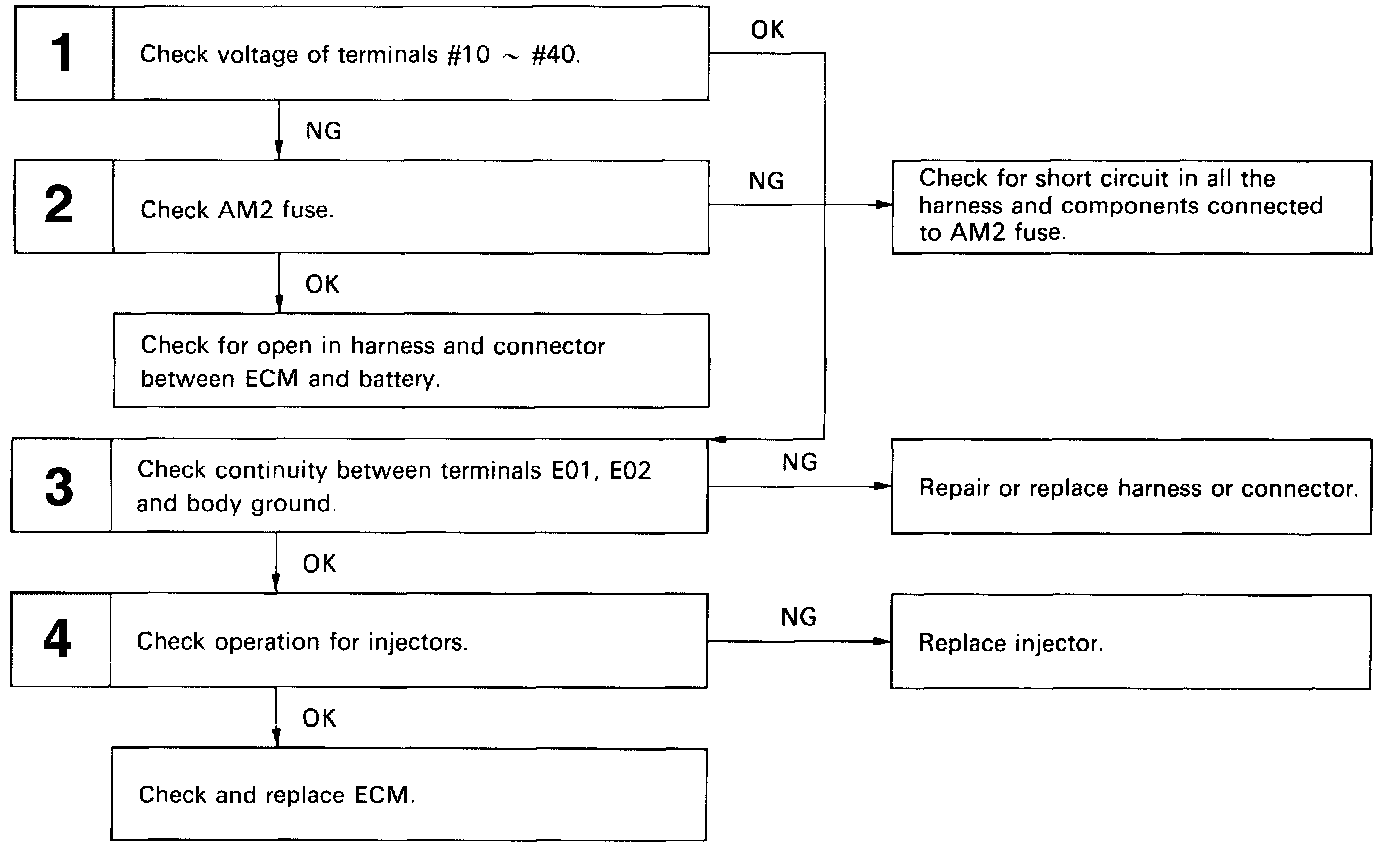

DIAGNOSTIC CHART

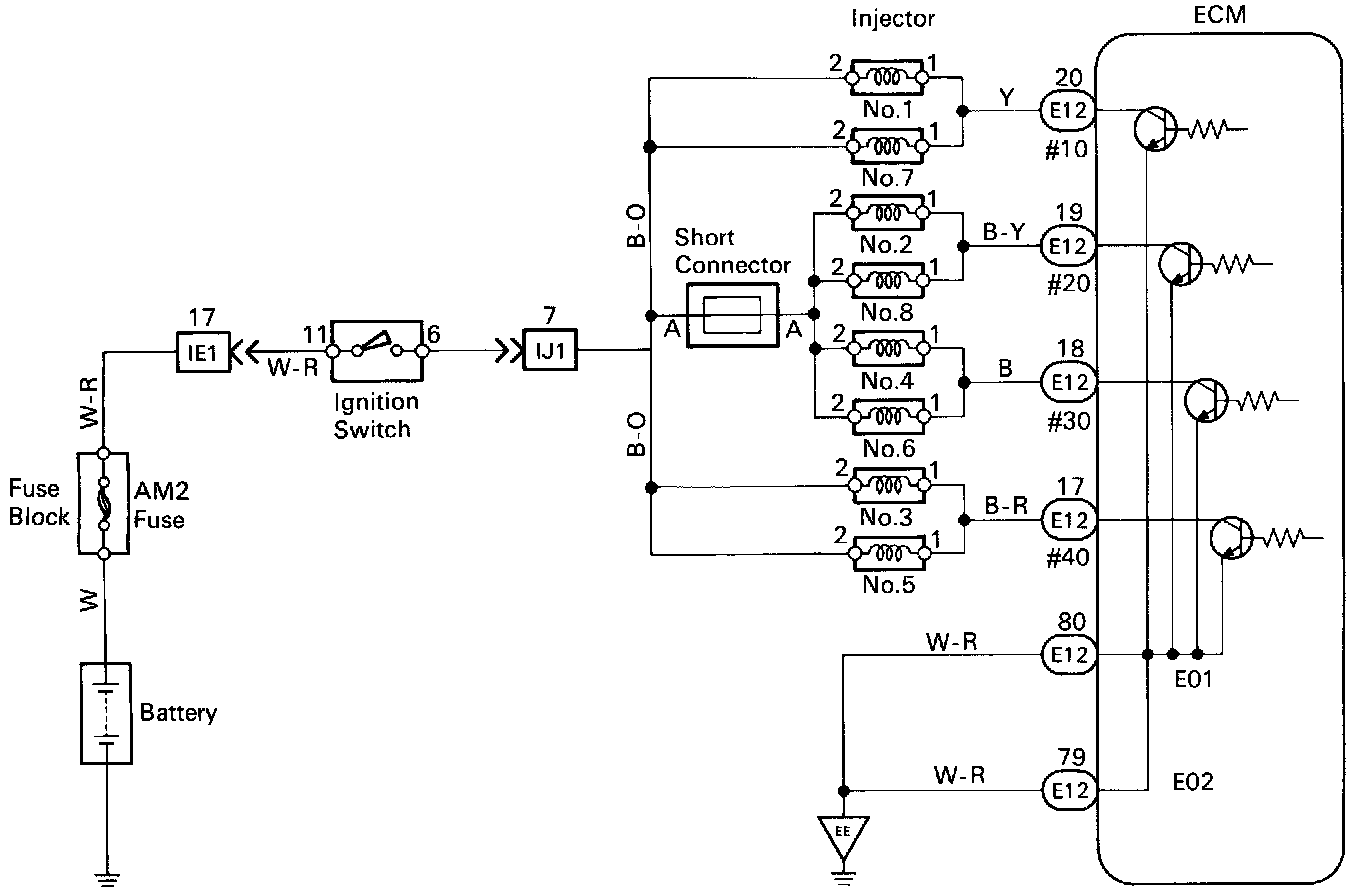

WIRING DIAGRAM

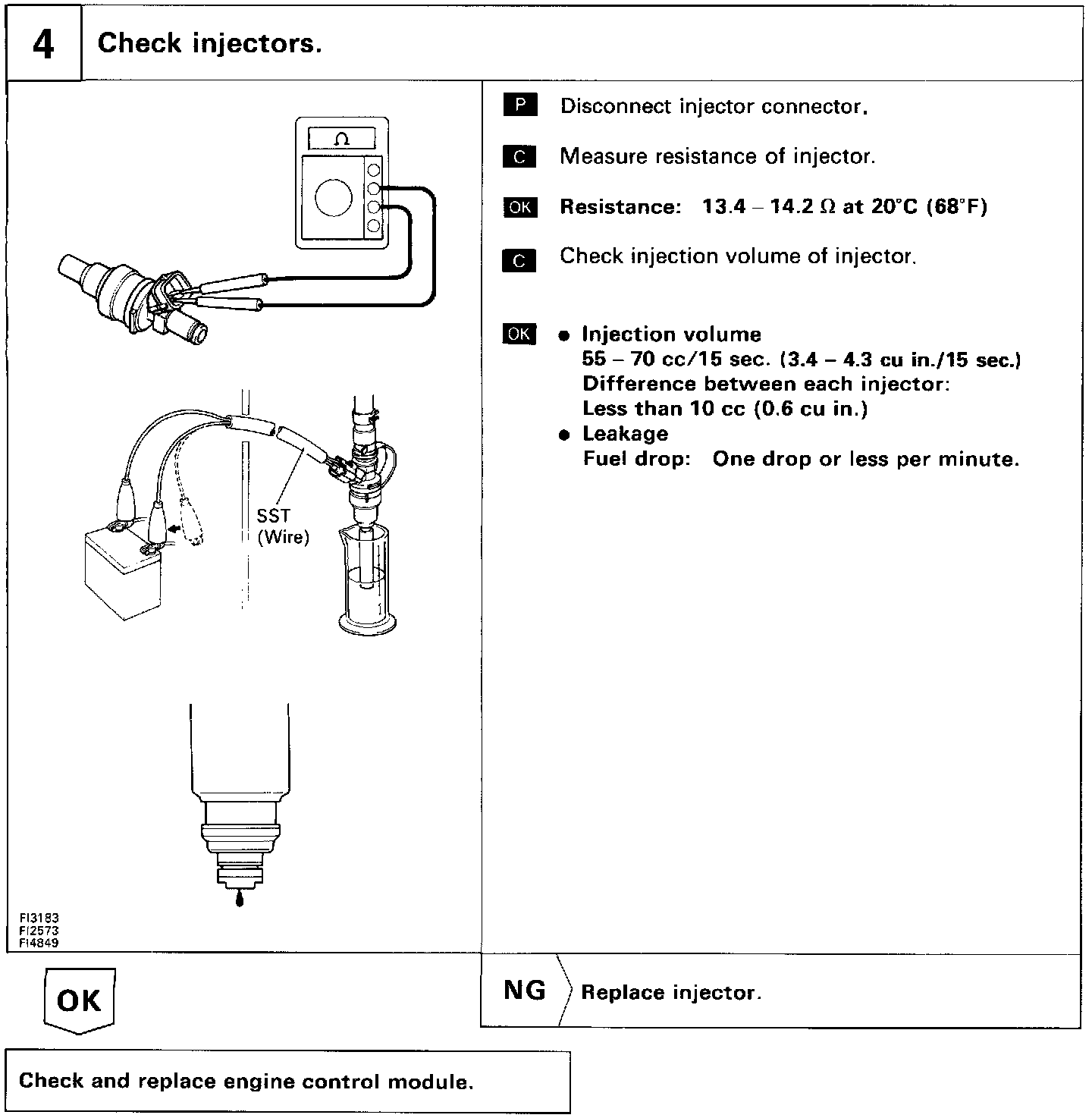

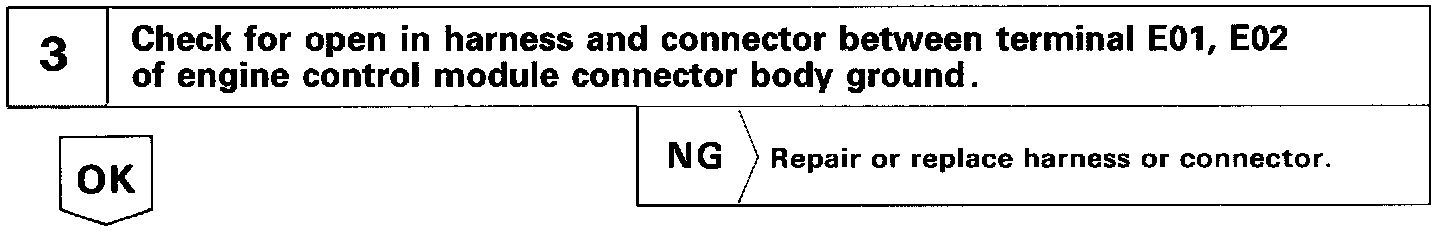

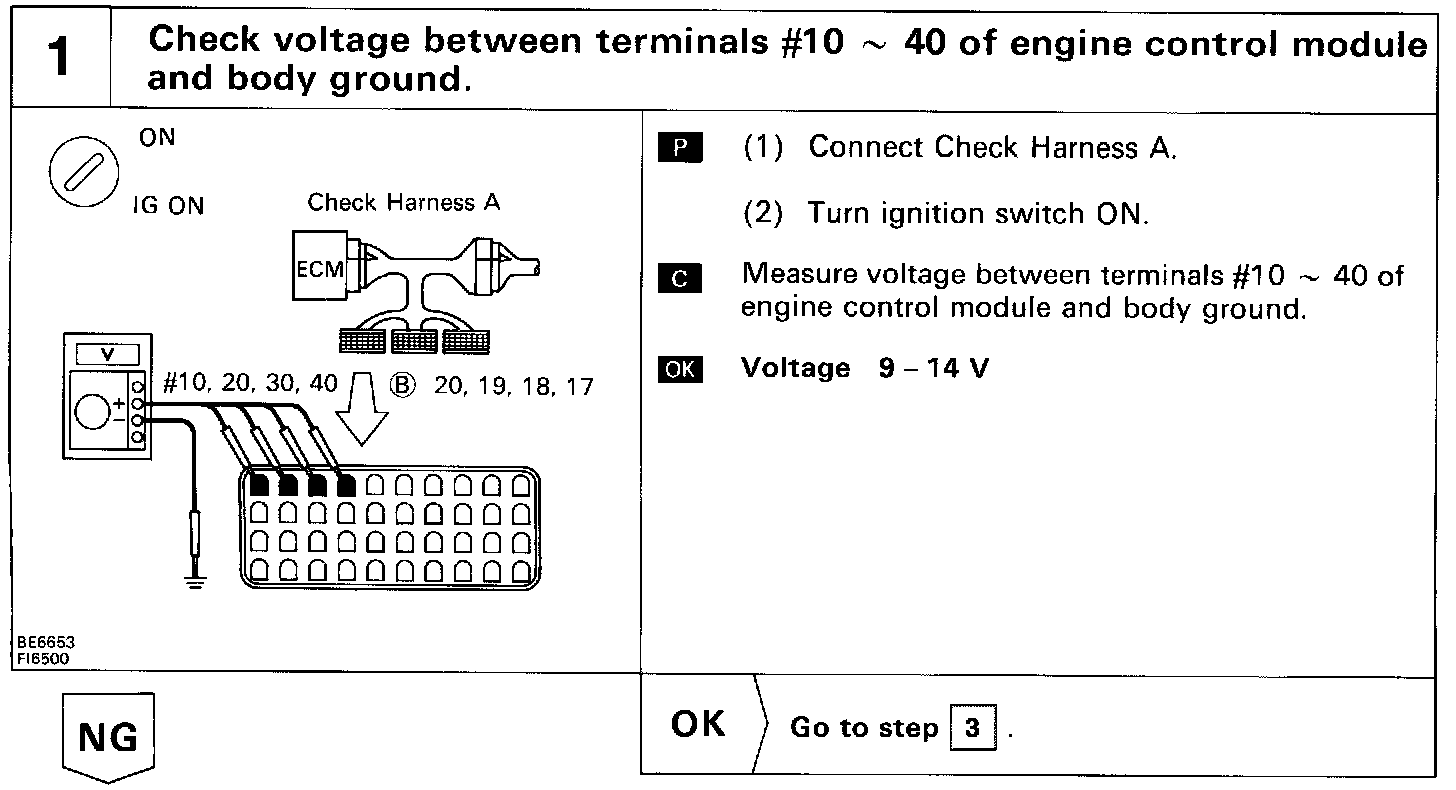

INSPECTION PROCEDURE
