Home >> Lexus >> 1995 >> SC 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Indicator - A/T

Shift Indicator - A/T

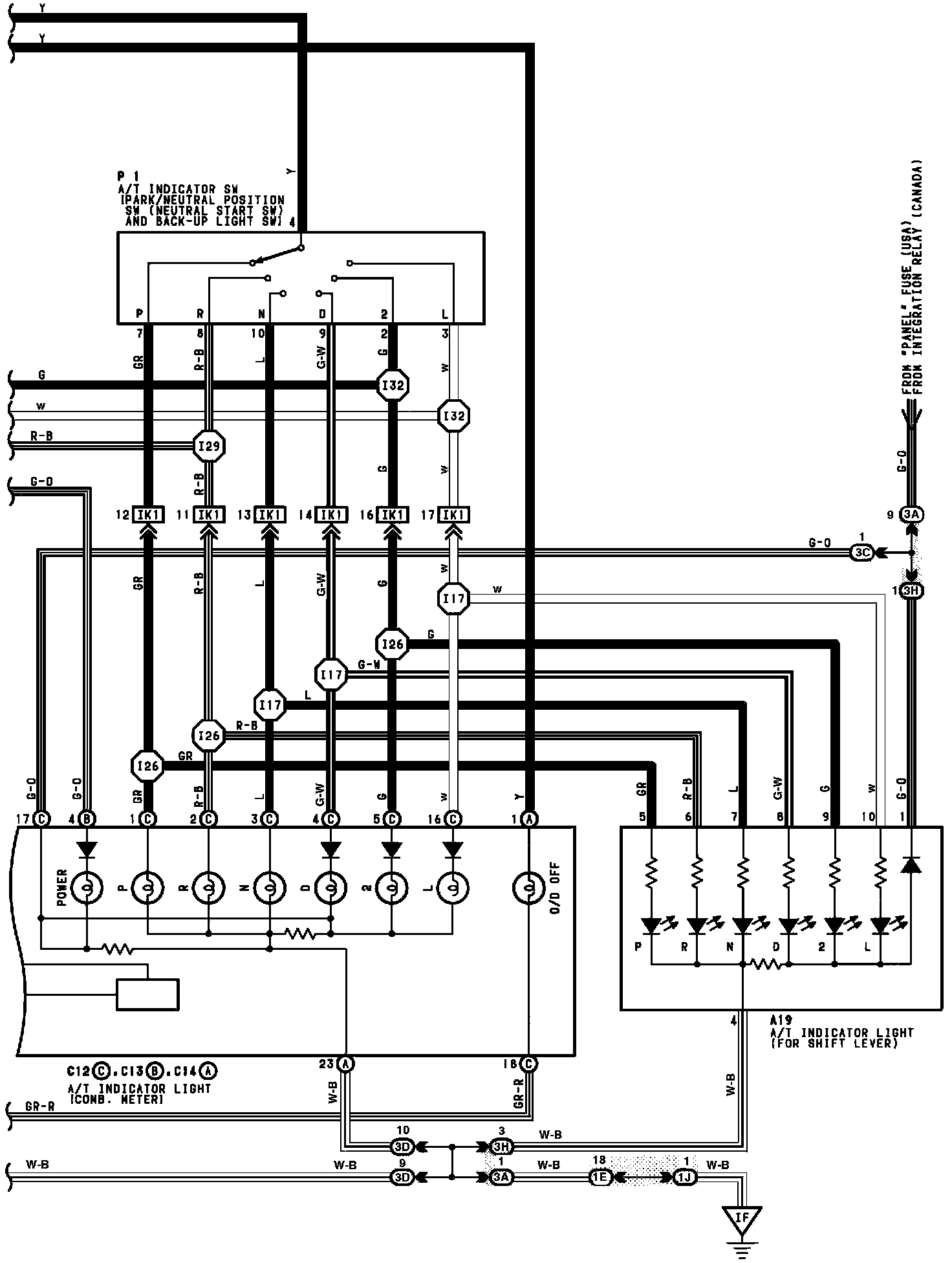

Electronically Controlled Transmission (Part 1 Of 4):

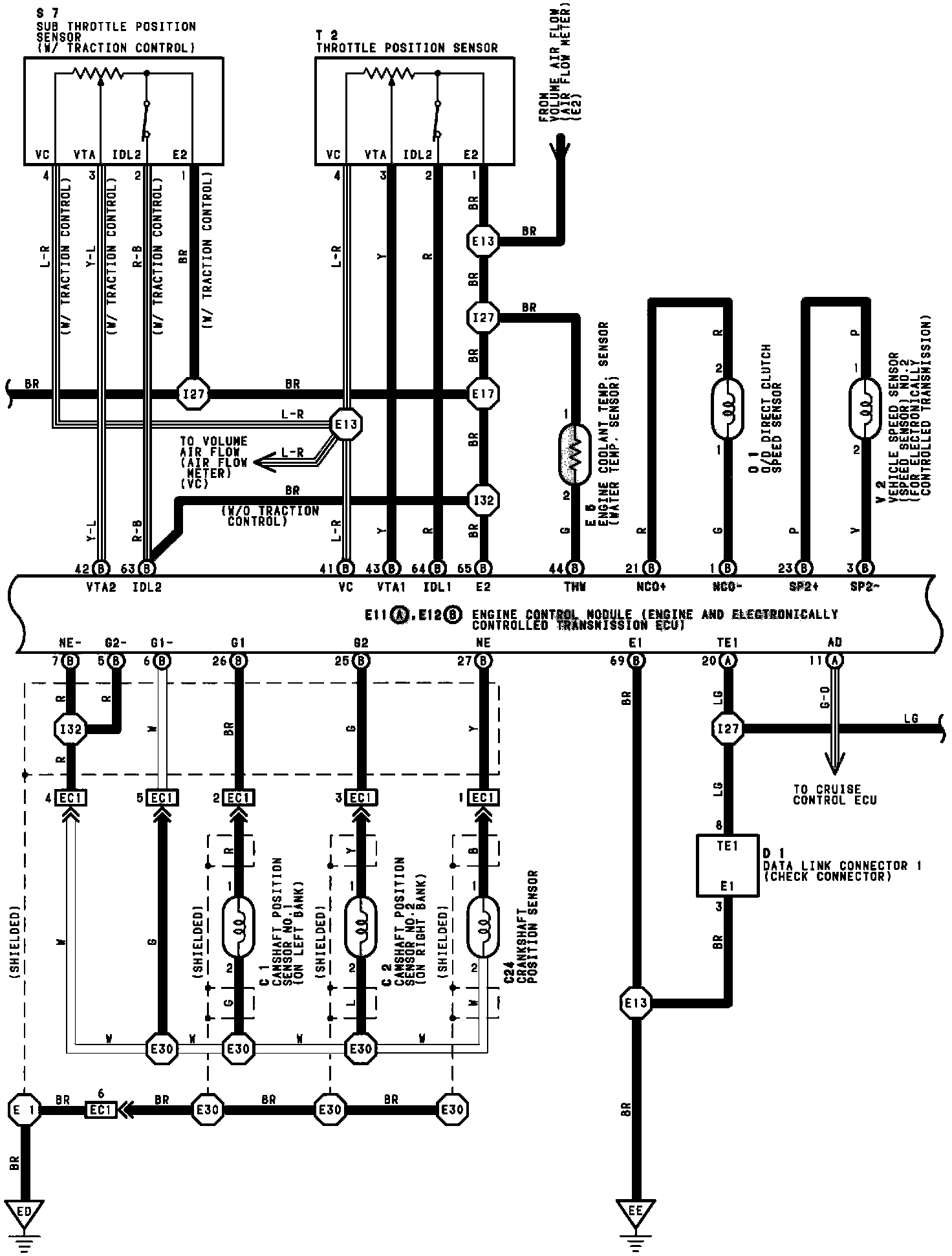

Electronically Controlled Transmission (Part 2 Of 4):

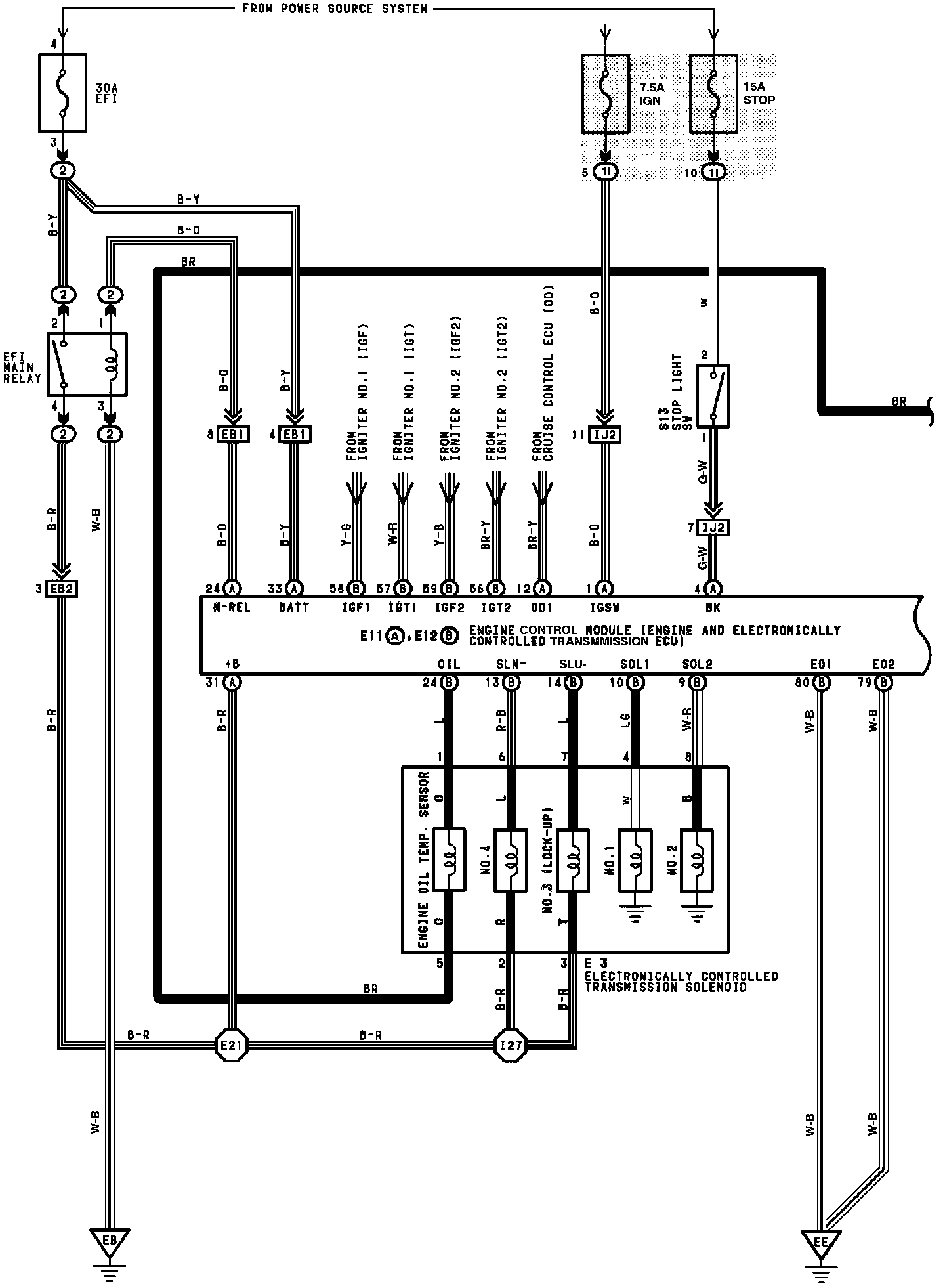

Electronically Controlled Transmission (Part 3 Of 4):




Electronically Controlled Transmission (Part 4 Of 4):
