Throttle Valve Cable/Linkage: Adjustments

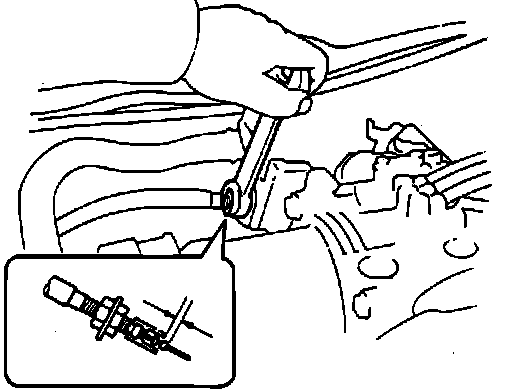

Fig. 8 Throttle Cable Adjustment:
1. Ensure throttle valve is fully closed.
2. Ensure inner cable has no slack.
3. Measure distance between outer cable end and stopper on end of cable, Fig. 8. Distance should be .04 inch.
4. If distance is not as specified, adjust cable by adjusting nuts.
