Reading and Clearing Diagnostic Trouble Codes
>>
Displaying & Reading Trouble Codes
>>
With LEXUS Hand-Held Tester
With LEXUS Hand-Held Tester
1.

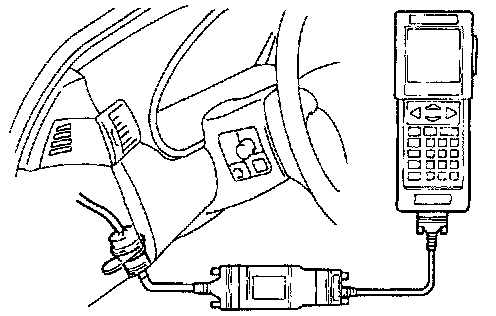

Hook up the LEXUS hand-held tester to the DLC2.
2.
Read the diagnostic trouble codes by following the prompts on the tester screen.
Please refer to the LEXUS hand - held tester operator's manual for further details.
