Throttle Position Sensor Circuit

CIRCUIT DESCRIPTION
The throttle position sensor detects the throttle valve opening angle and sends signals to ECM.

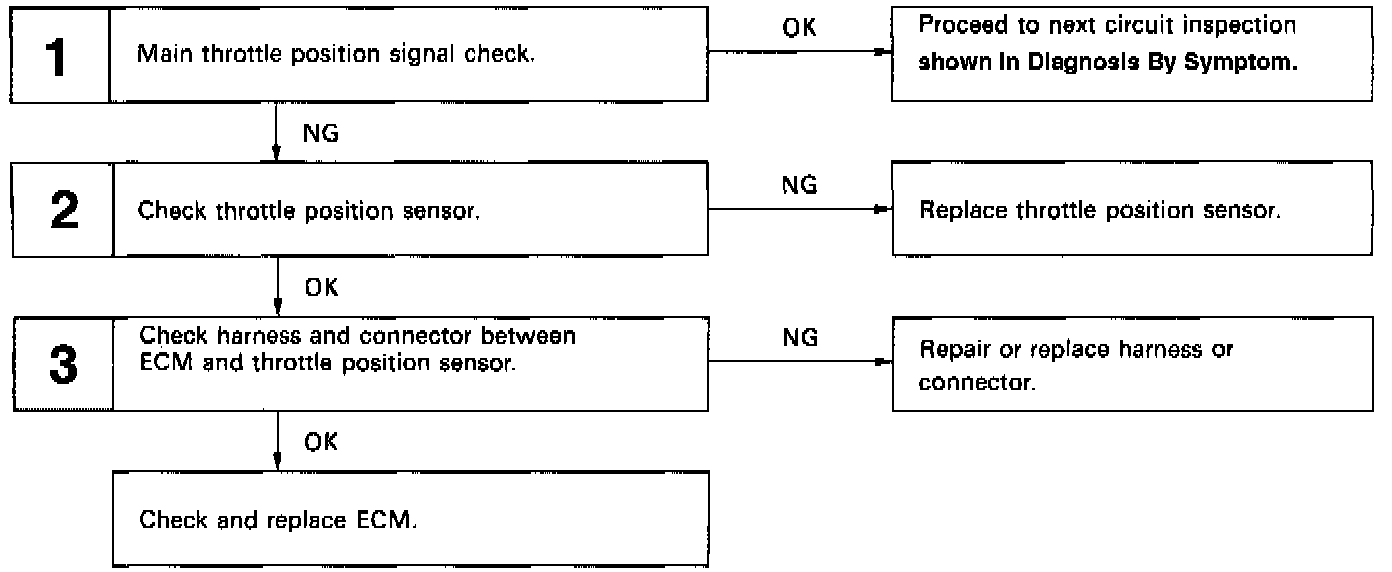

DIAGNOSTIC CHART





WIRING DIAGRAM

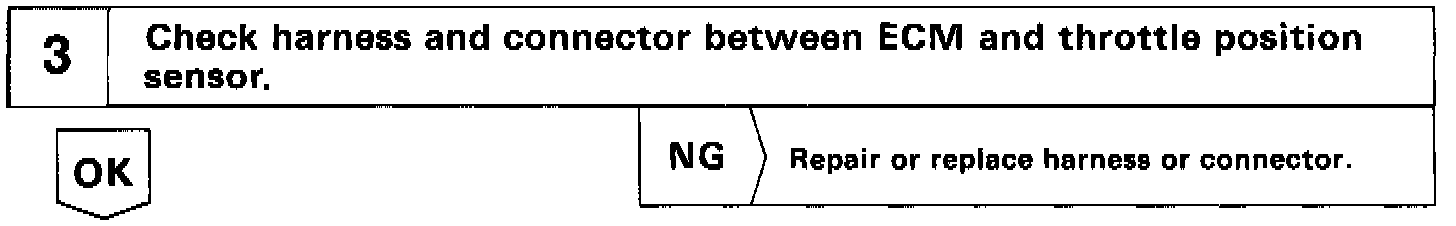

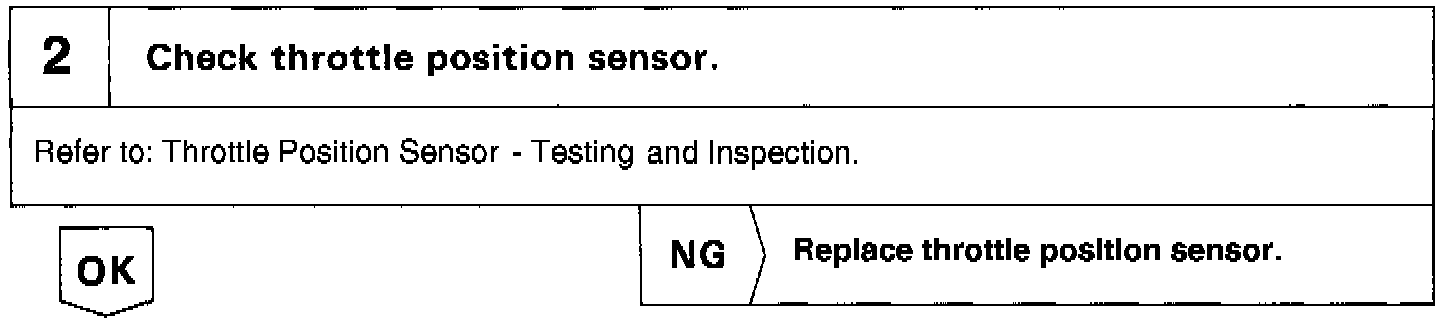

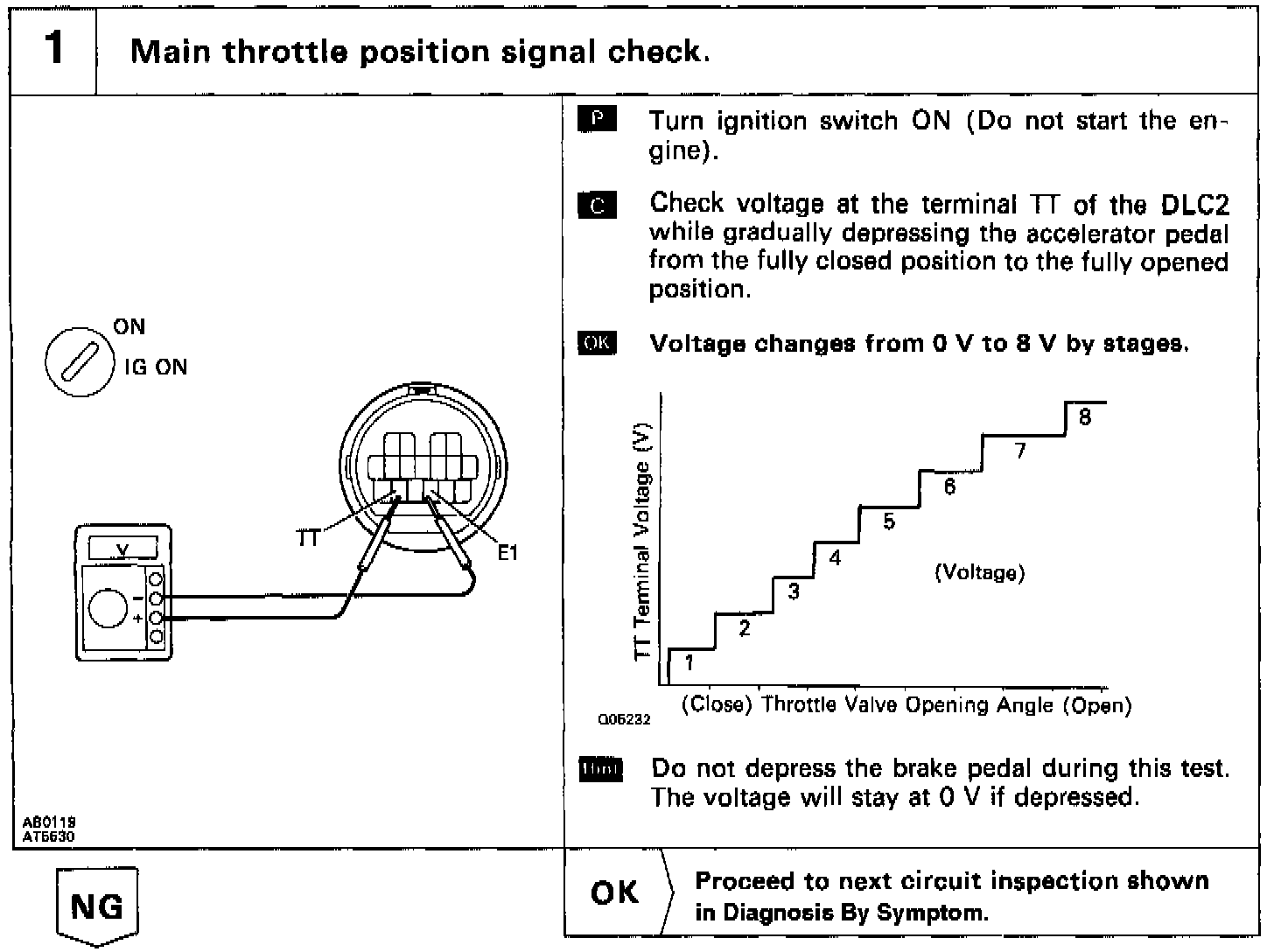

INSPECTION PROCEDURE
