O/D Main Switch & O/D OFF Indicator Light Circuit

CIRCUIT DESCRIPTION
The O/D main switch contacts go off when the switch is pushed in and comes on when it is pushed out. In O/D main switch OFF position, the O/D OFF indicator lights up, and the ECM prohibits shifting to overdrive. The ECM also causes the O/D OFF indicator light to blink when a malfunction is detected. In this case, connecting the terminals in the DLC2 or DLC1 can display the malfunction code.

DIAGNOSTIC CHART

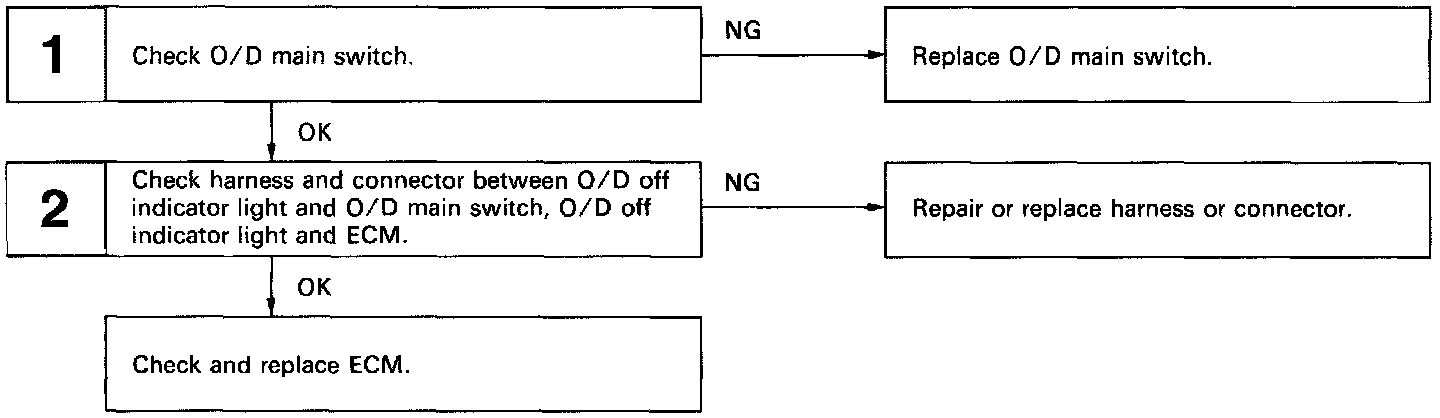

O/D OFF indicator light does not light up.

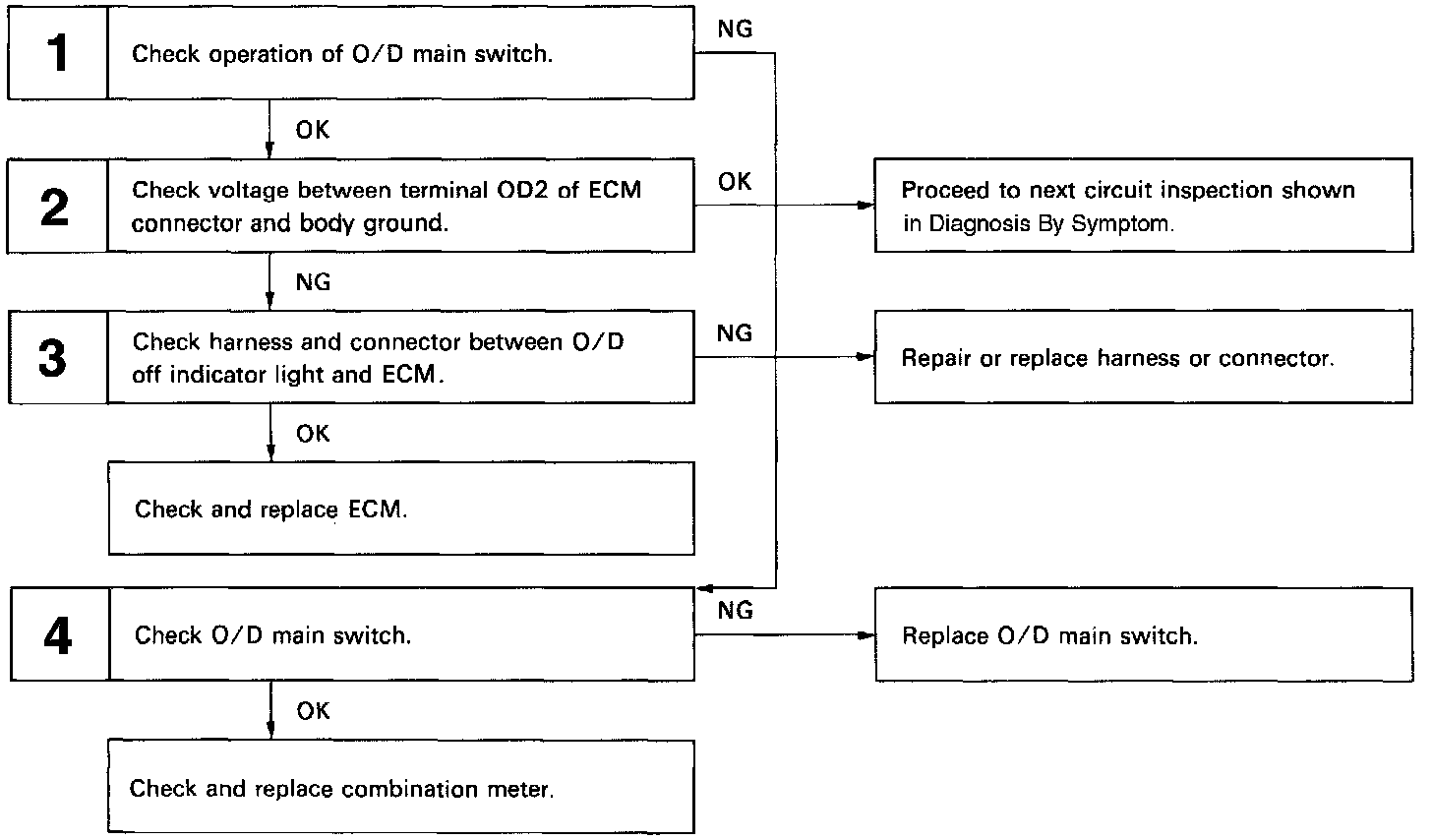

O/D OFF indicator light remains ON.

O/D OFF indicator light blinks:
- Perform diagnostic trouble code check.





WIRING DIAGRAM
(*) O/D Main Switch
Contacts go off with switch pushed in.
Contacts go on with switch pushed out.

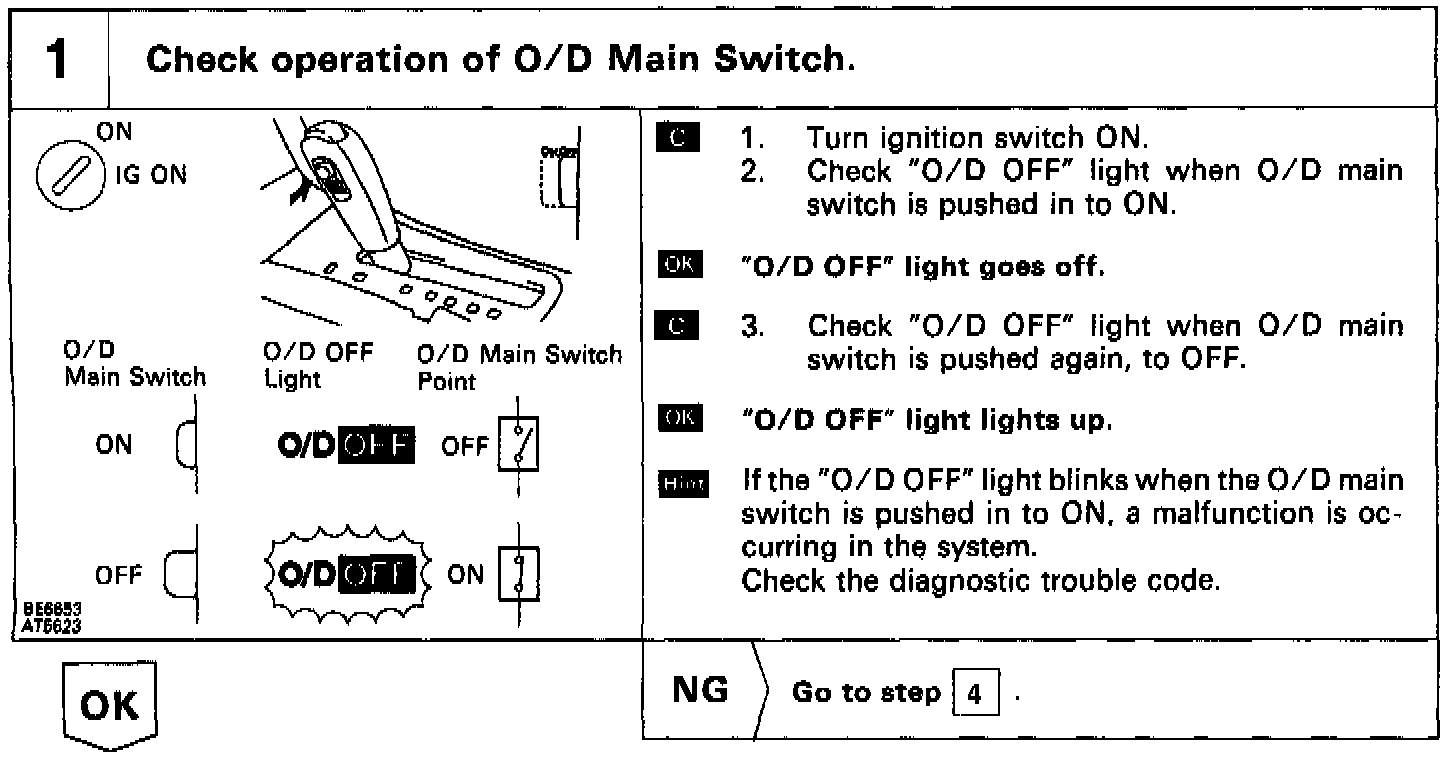

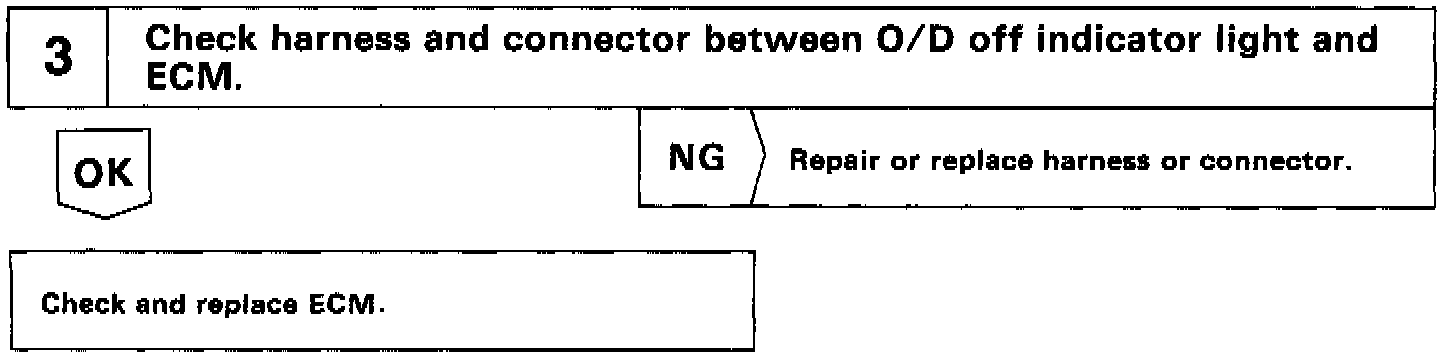

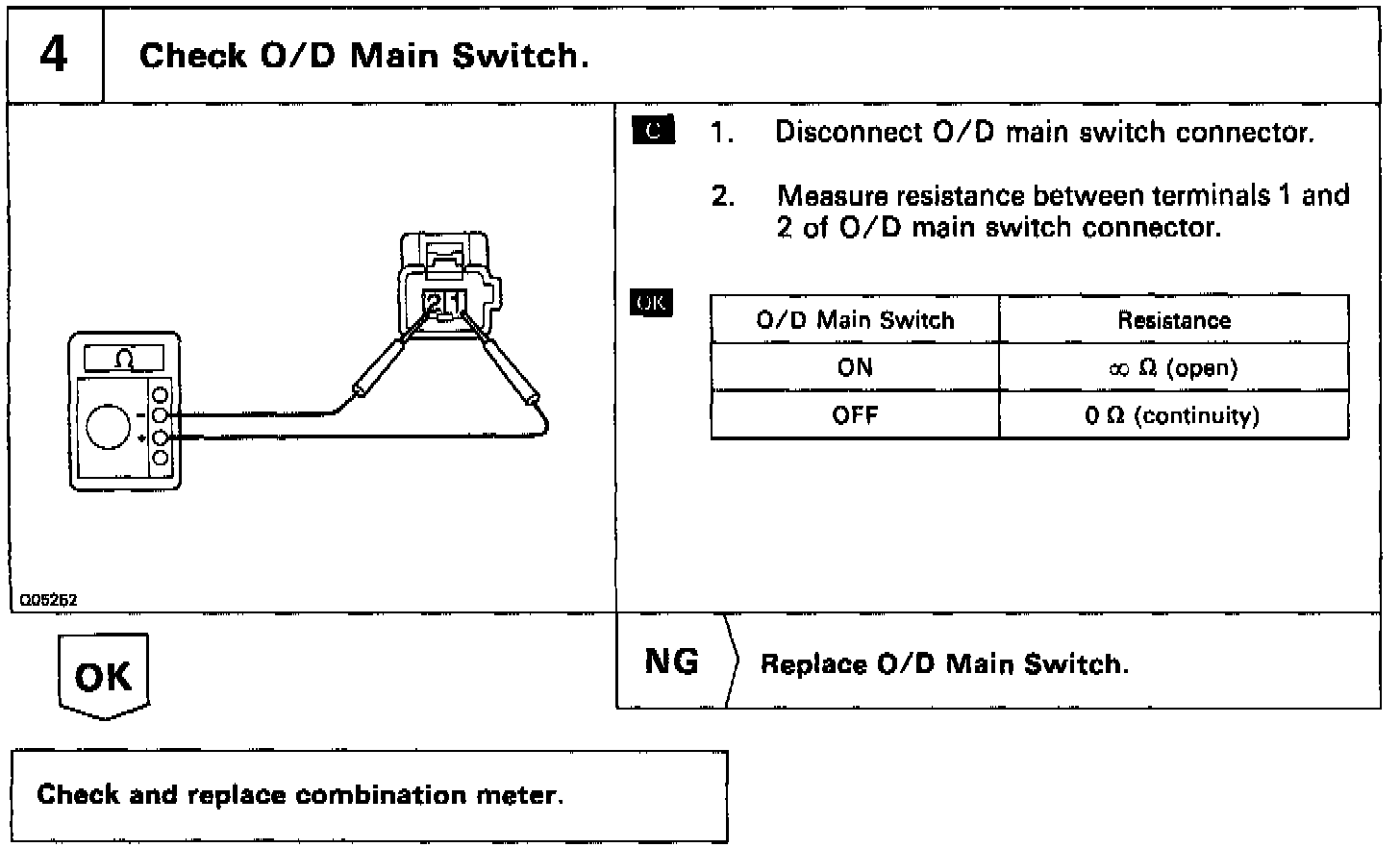

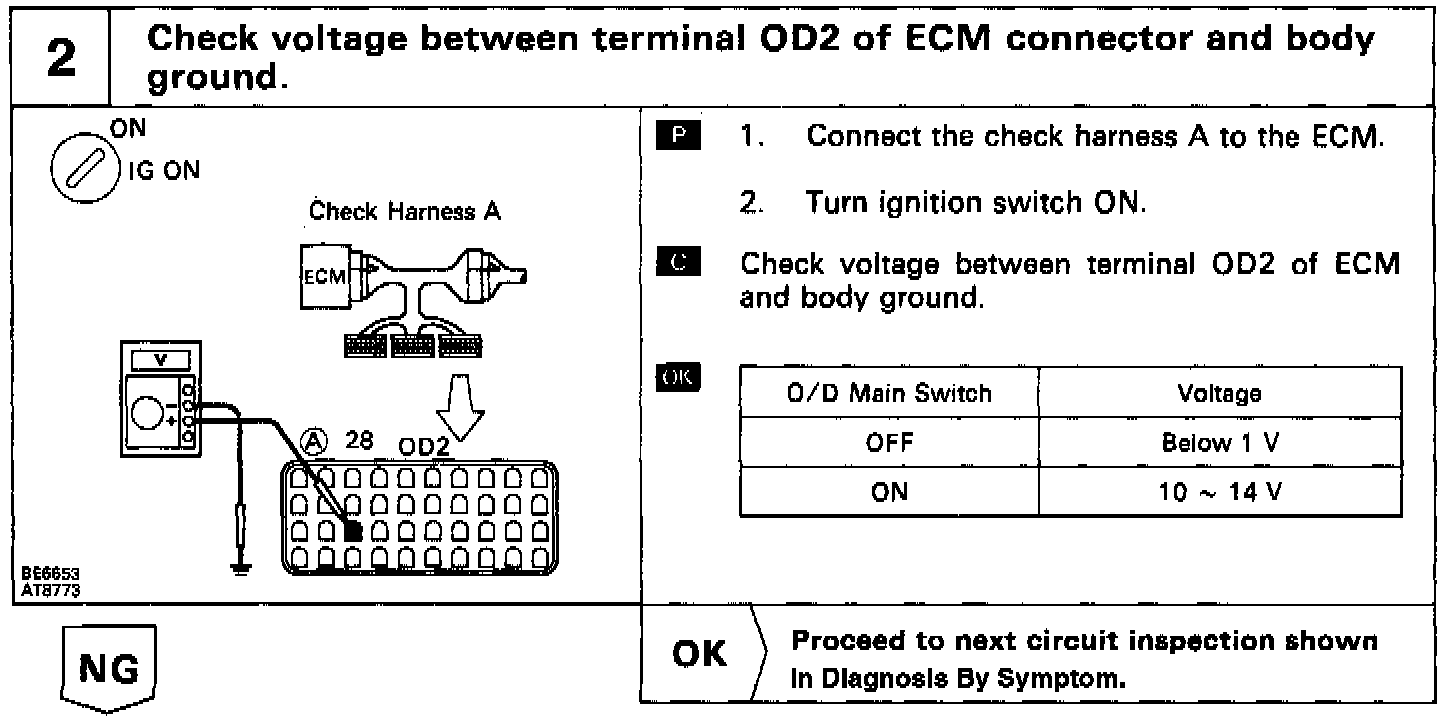

INSPECTION PROCEDURE
