Automatic Transmission/Transaxle: Locations

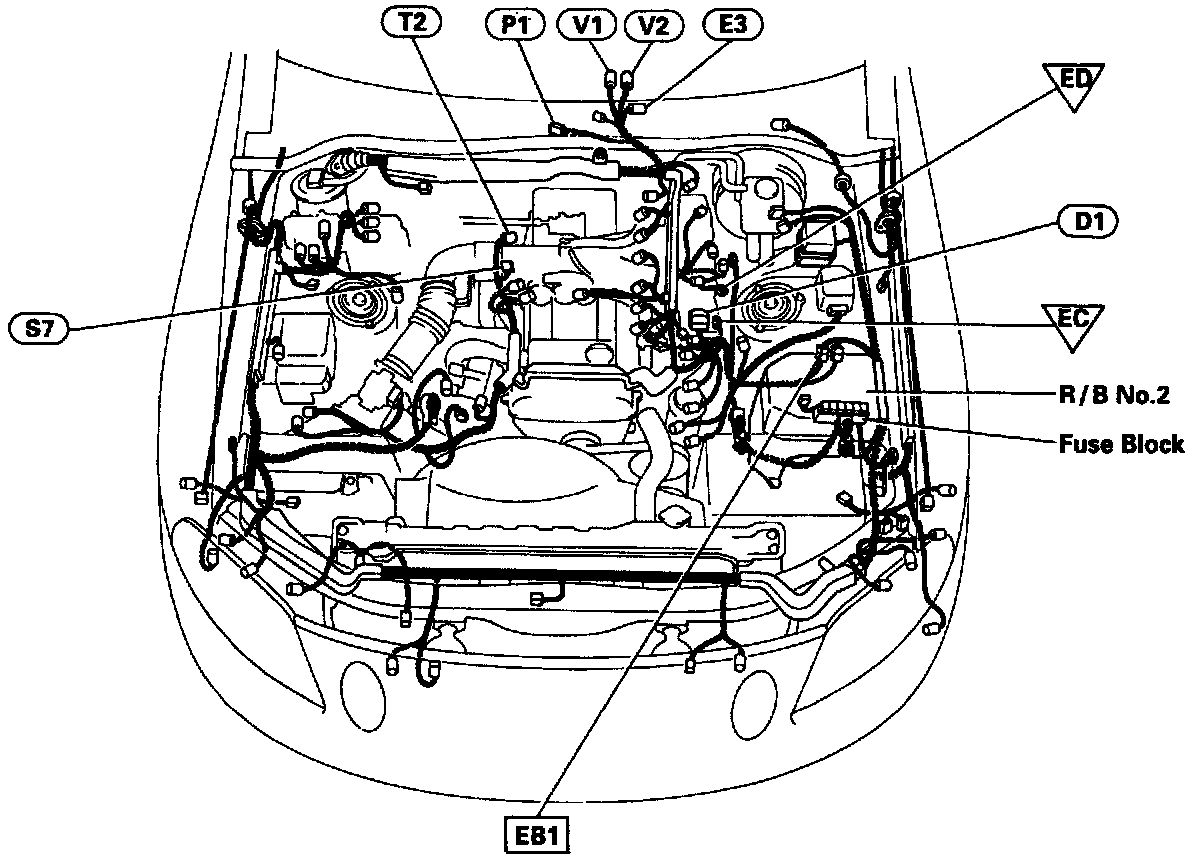

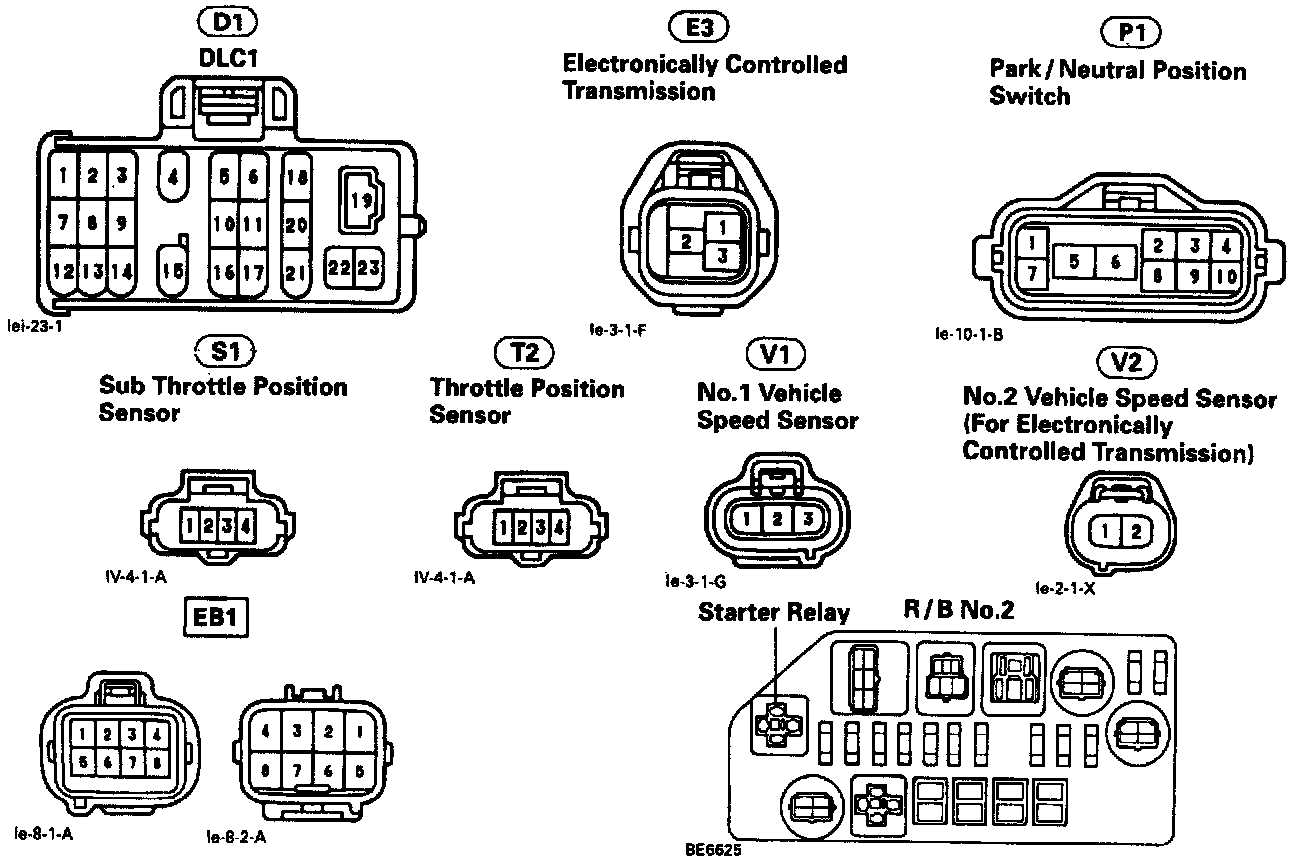

Location of Connectors in Engine Compartment

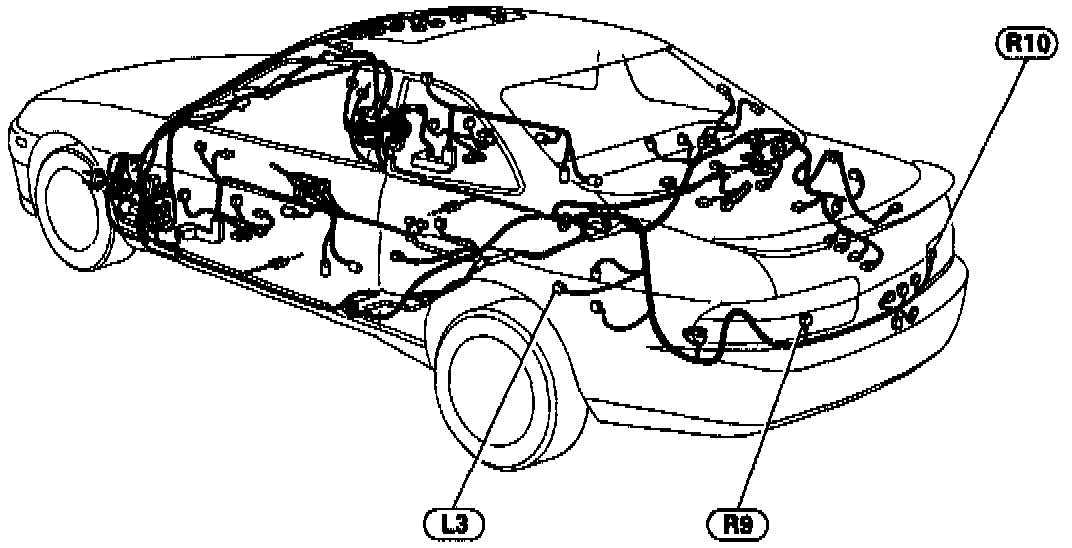

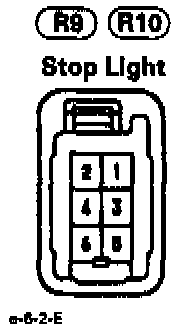

Location of Connectors in Body

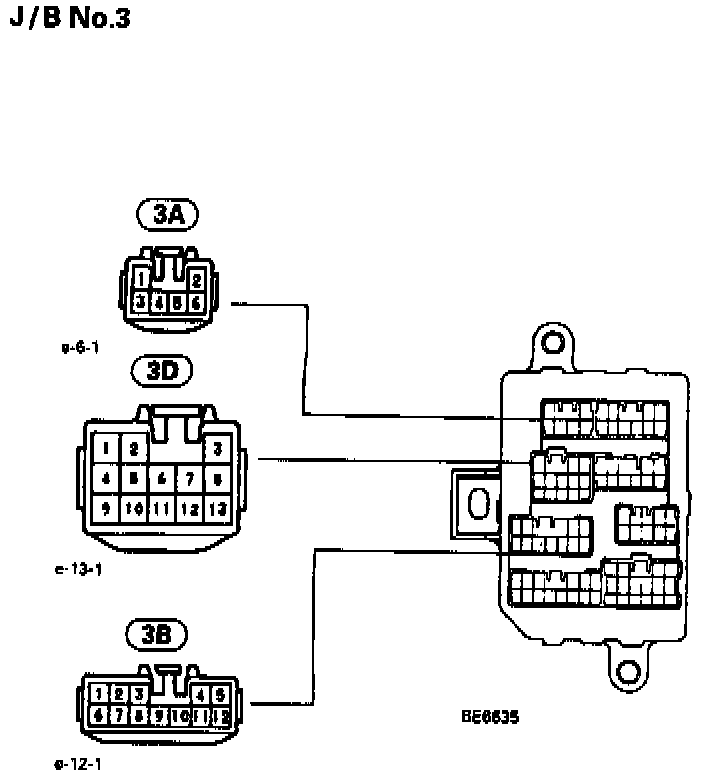

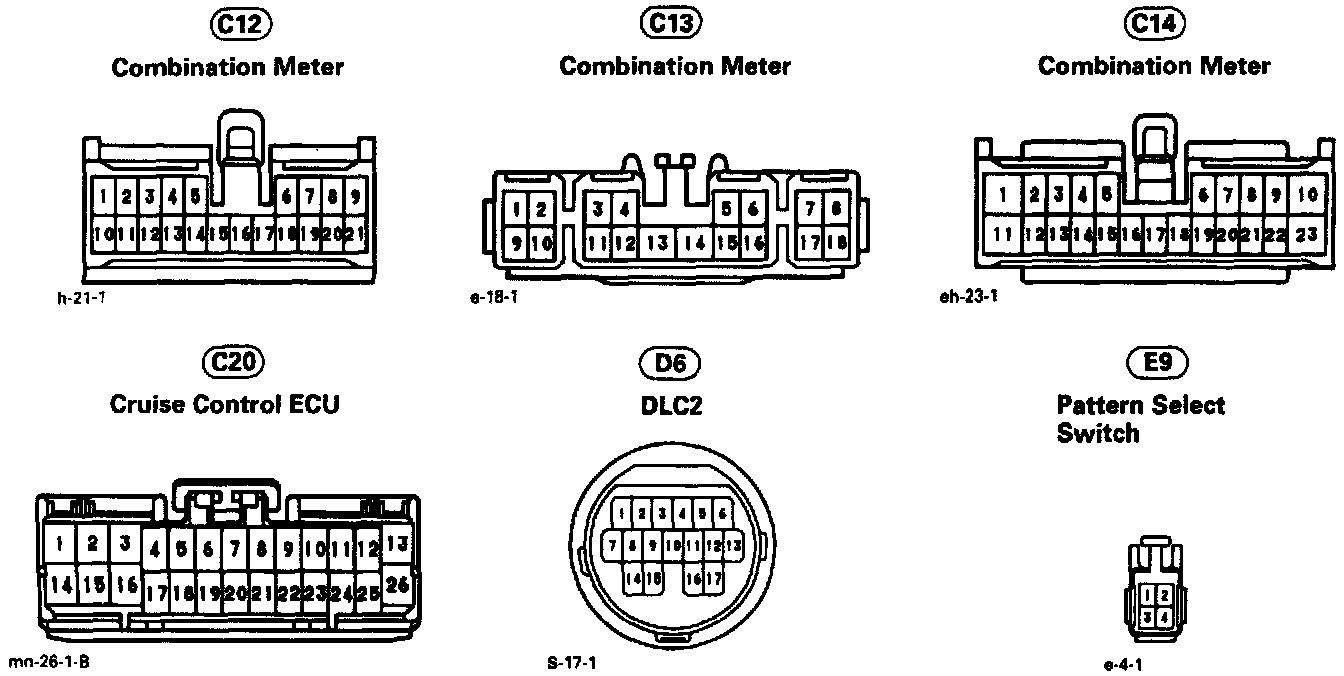

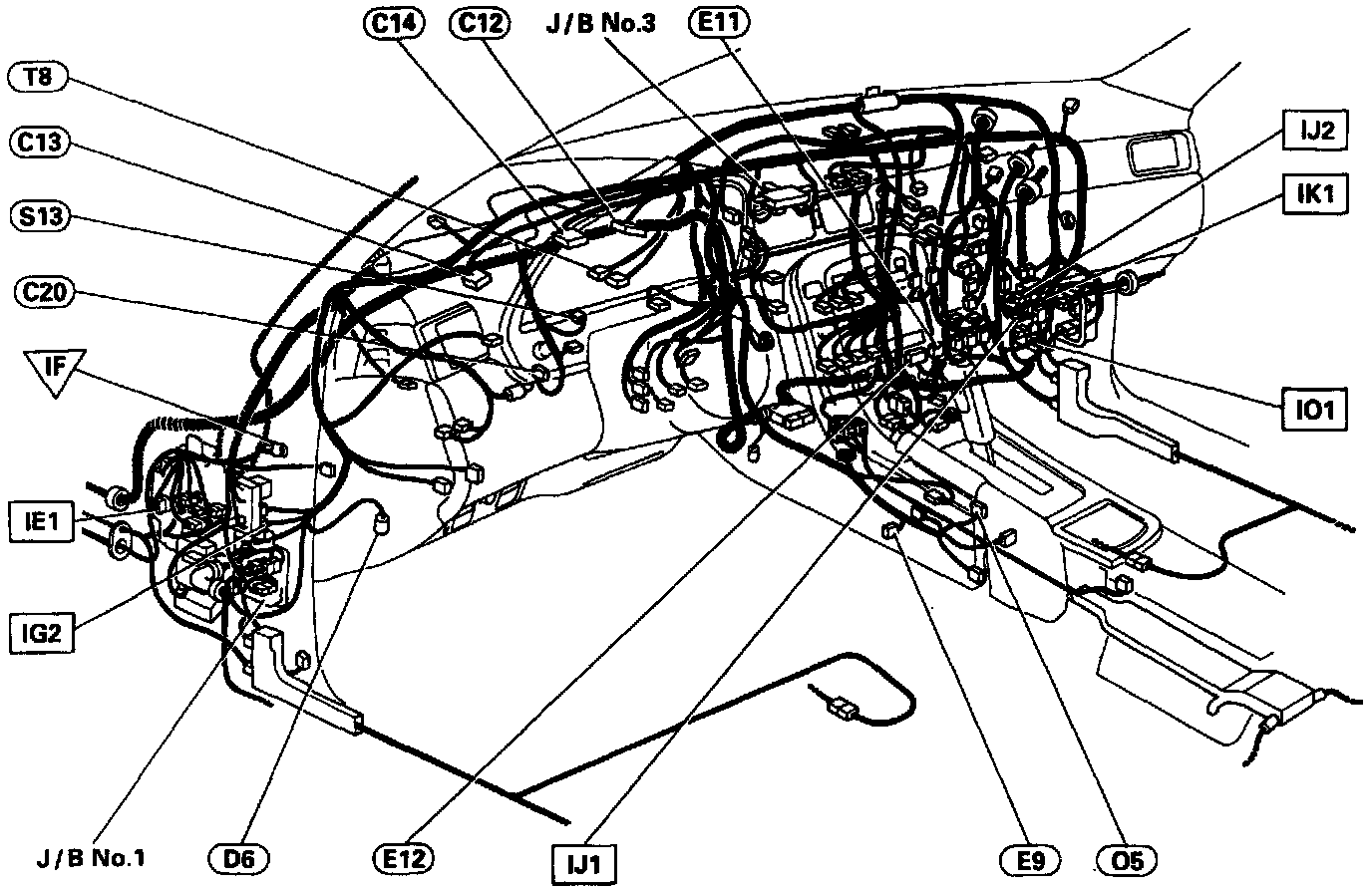

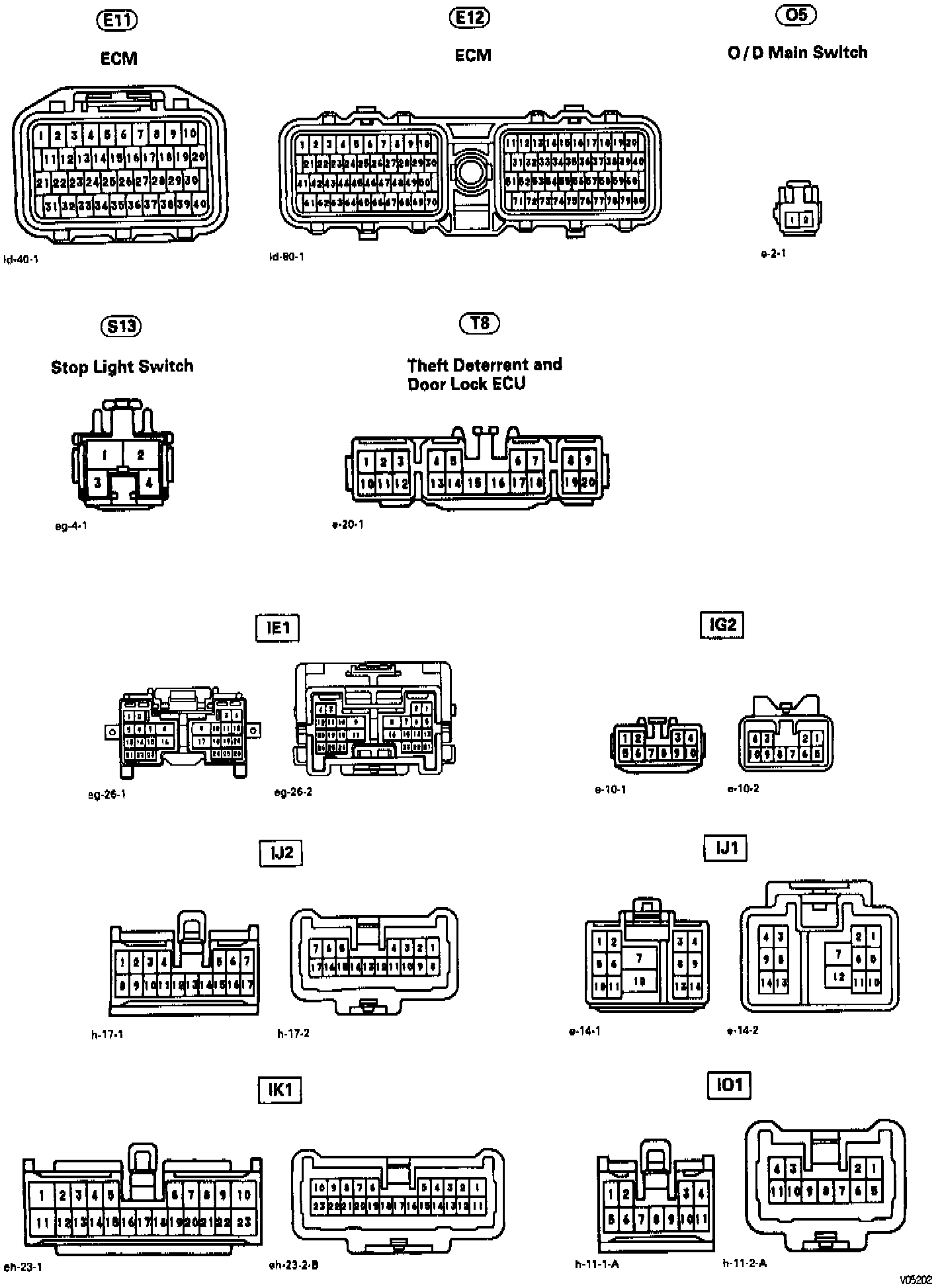

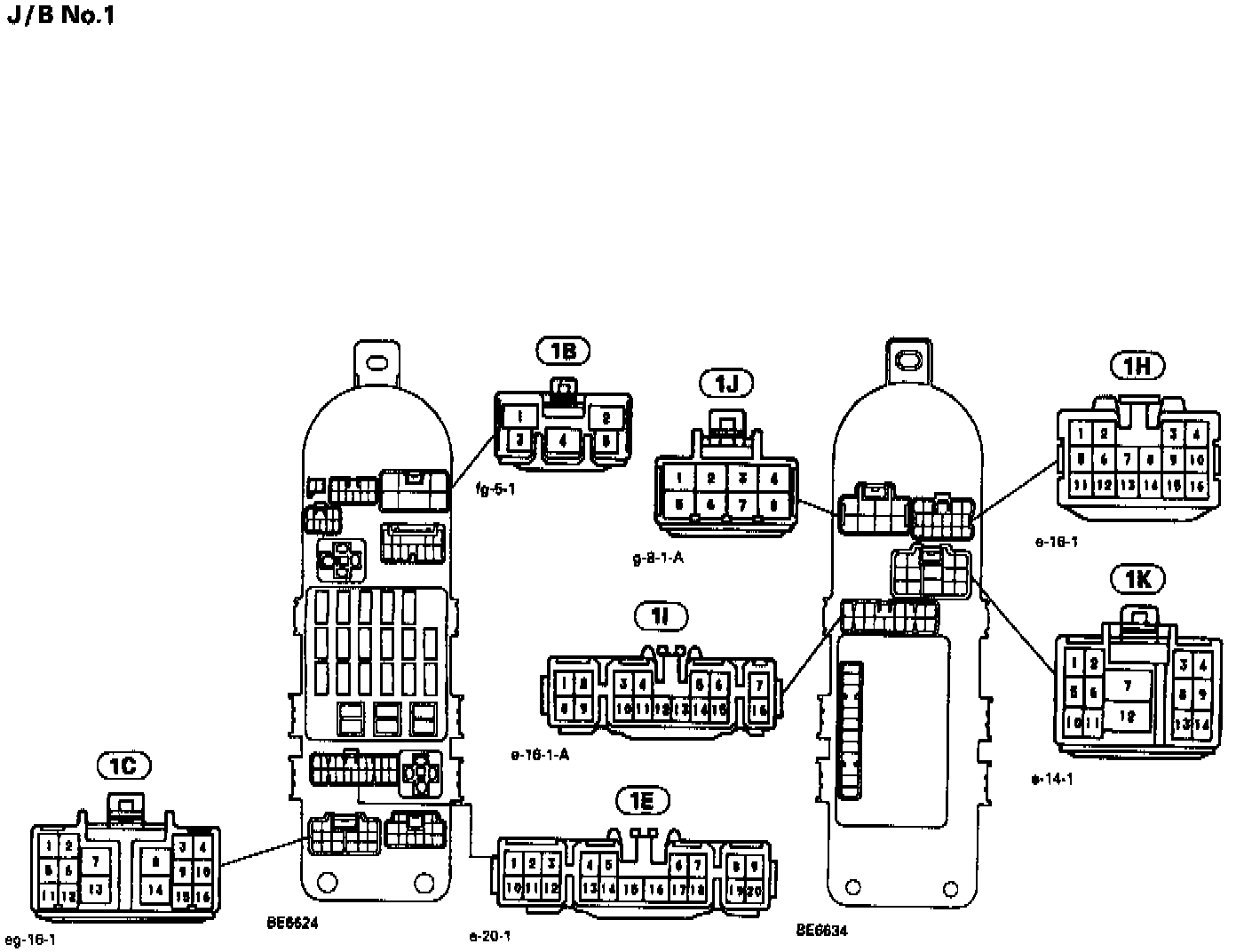

Location of Connectors in Instrument Panel

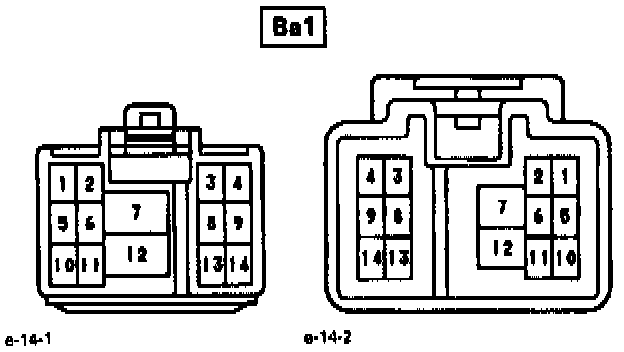

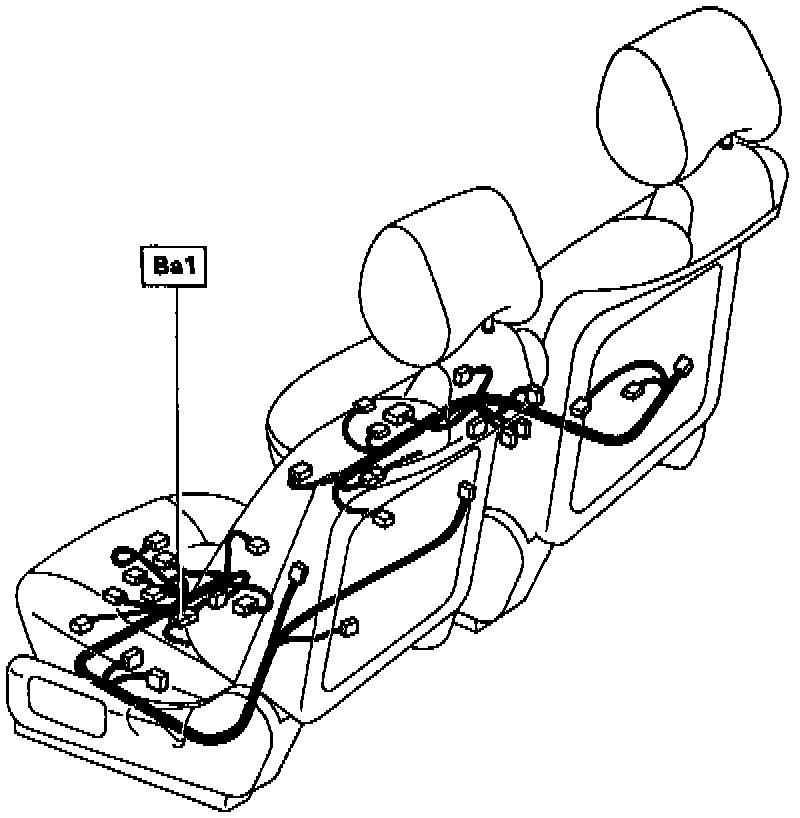

Location of Connector in Seat
