Neutral Safety Switch: Testing and Inspection

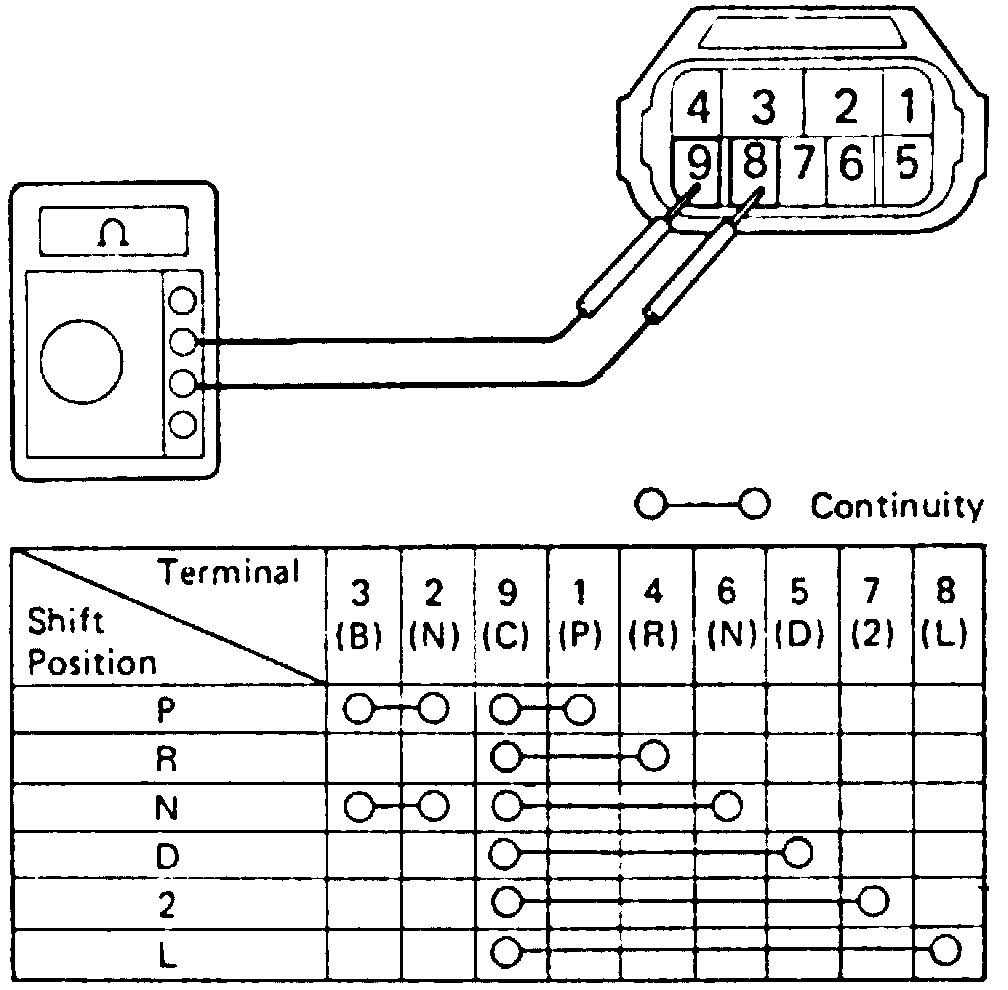

Fig. 11 Neutral Start Switch Continuity Chart:

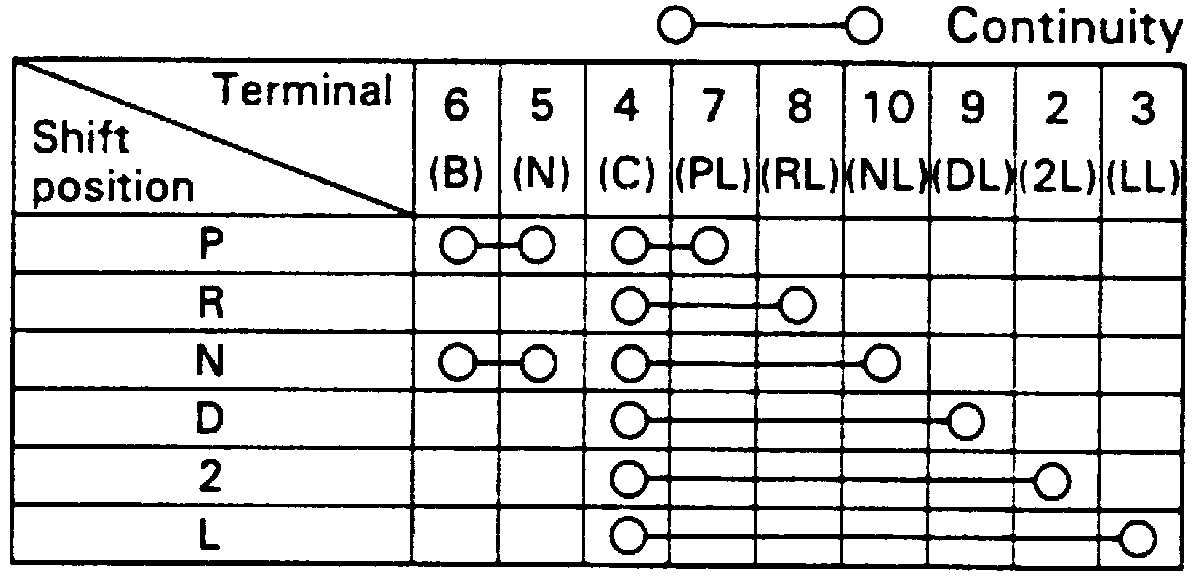

Fig. 12 Neutral Start Switch Continuity Chart.:

Fig. 13 Neutral Start Switch Continuity Chart:

Fig. 14 Neutral Switch Continuity Chart:

Using an ohmmeter, check continuity across terminals specified for each switch position shown in Figs. 11 through 14. If continuity is not present, replace switch.
