Coolant Temperature Sensor / Switch HVAC: Testing and Inspection

This sensor detects the engine coolant temperature and sends the appropriate signals to the air conditioning control assembly. These signals are used for warm up control when the engine is cold.

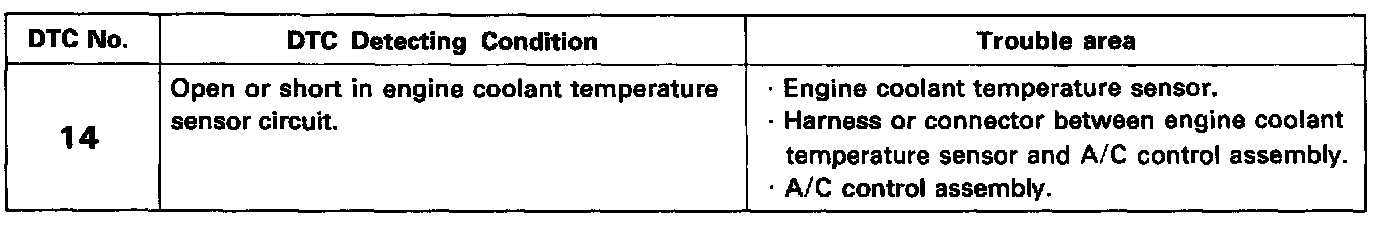

Diagnostic Chart:

Wiring Diagram:

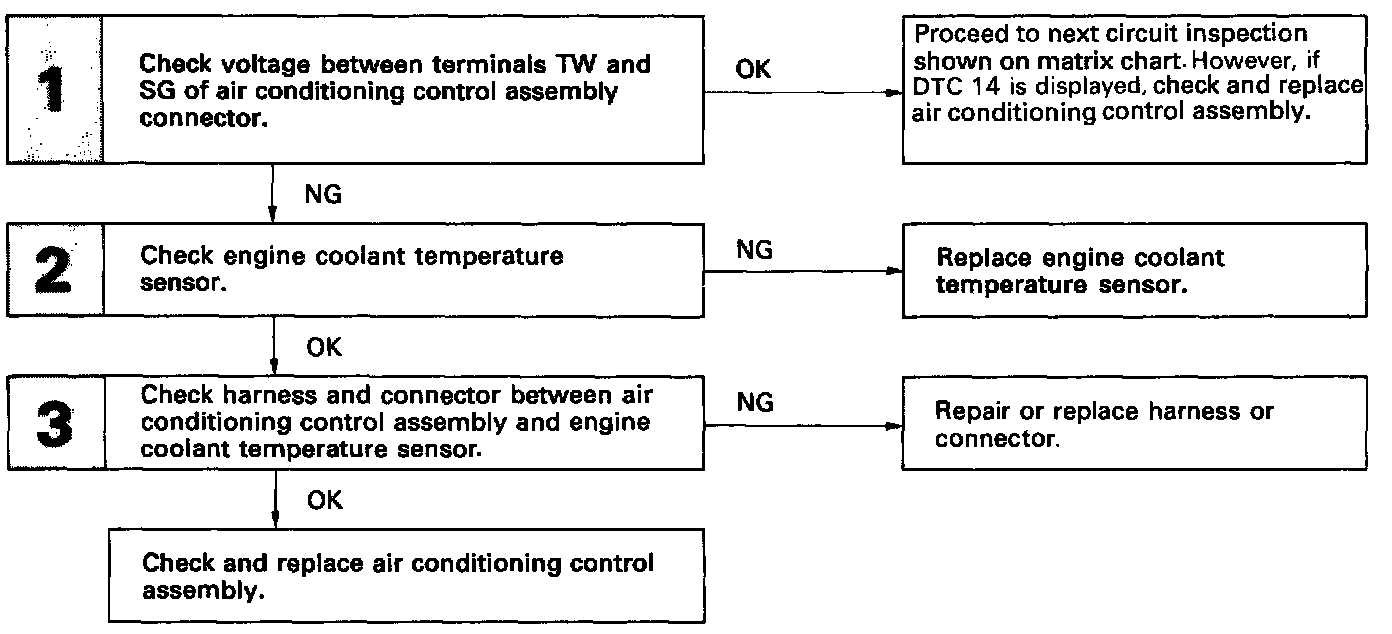

Inspection Procedure - Step 1:

Step 2:

Step 3:
