Air Inlet Damper Position Sensor Circuit

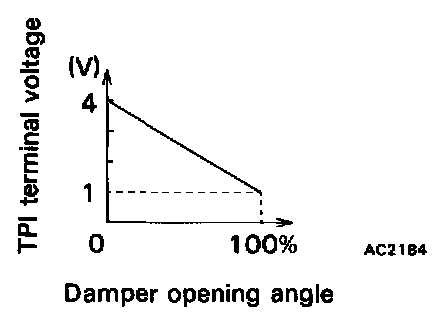

This sensor detects the position of the air inlet damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air mix servomotor assembly.
This sensor detects the position of the air inlet damper and sends the appropriate signals to the air conditioning control assembly. The position sensor is built into the air mix servomotor assembly.
