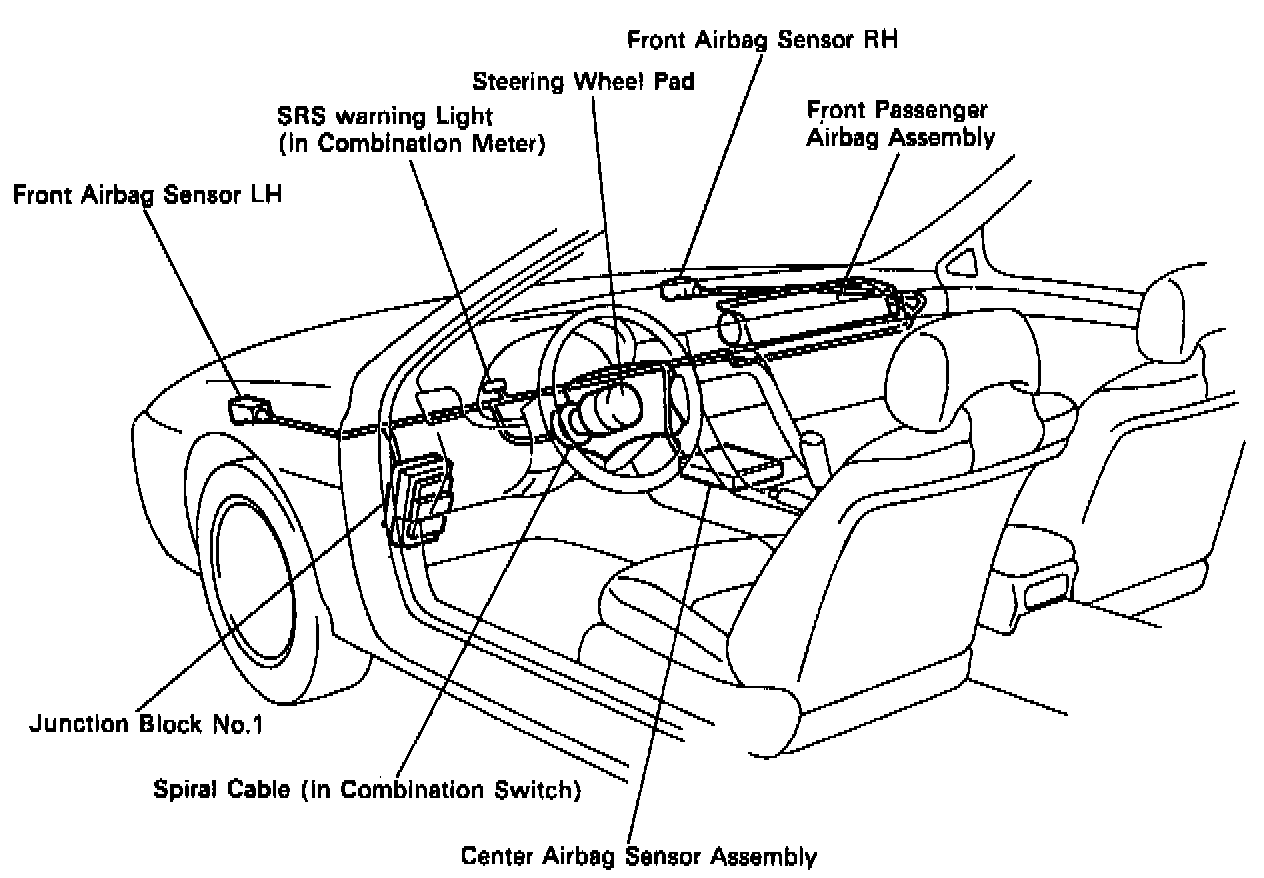

Harness Locations

HINT: The SRS wire harness is integrated with the cowl wire harness assembly and floor wire harness assembly.

The wires for the SRS wire harness are encased in a yellow corrugated tube and all the connectors in the system are a standard yellow color.
