Instrument Panel
Instrument Panel

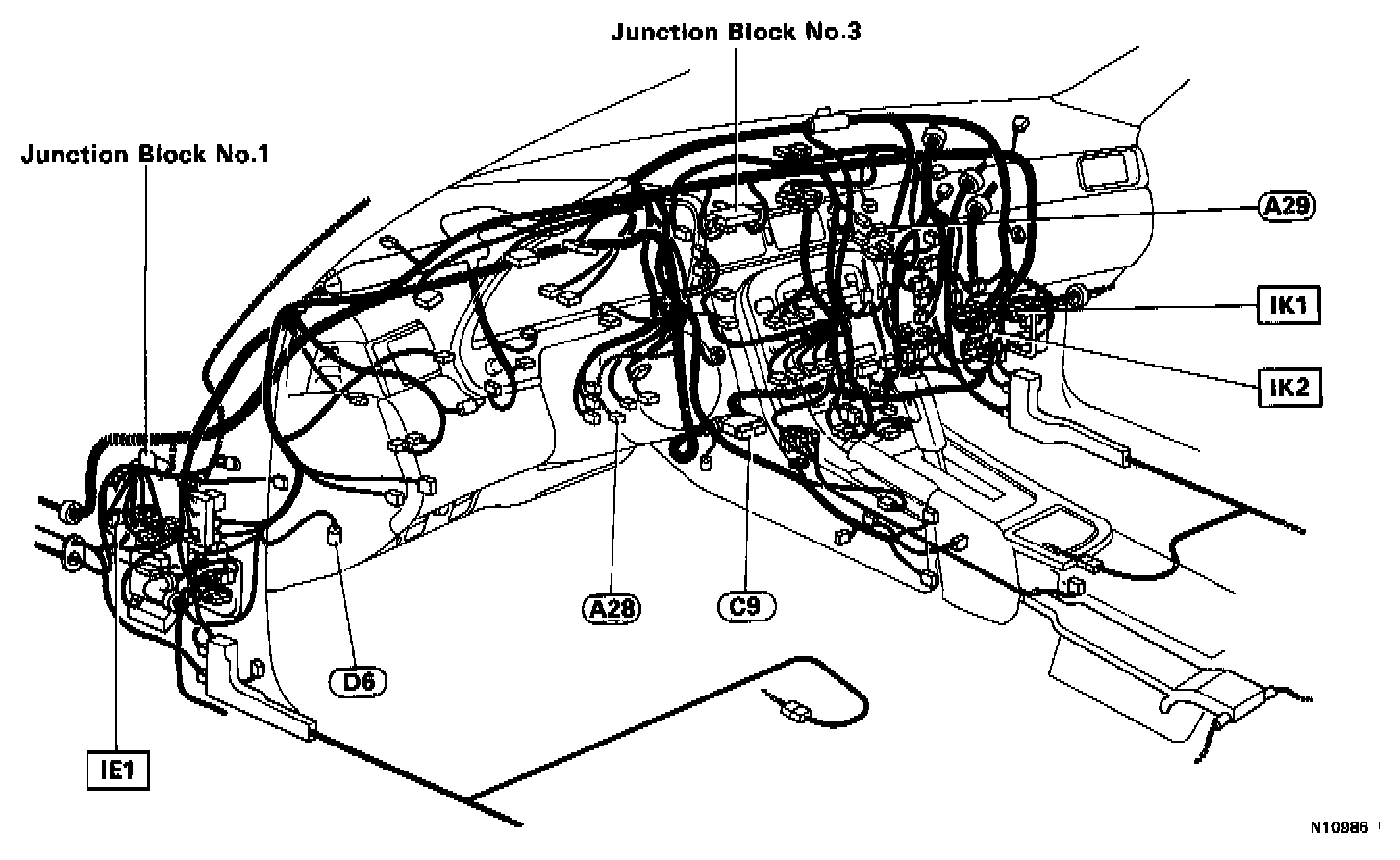

Location Of Connectors In Instrument Panel:
Connector Views

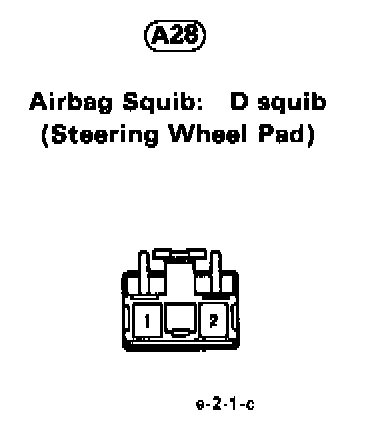

A28:

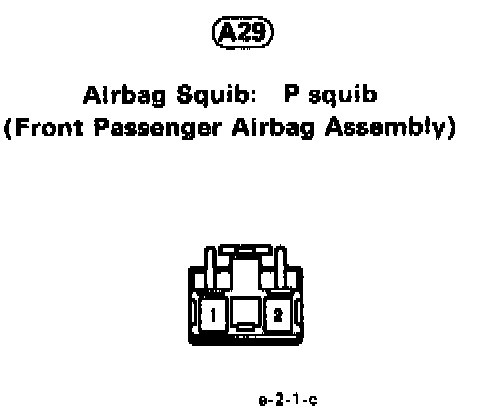

A29:

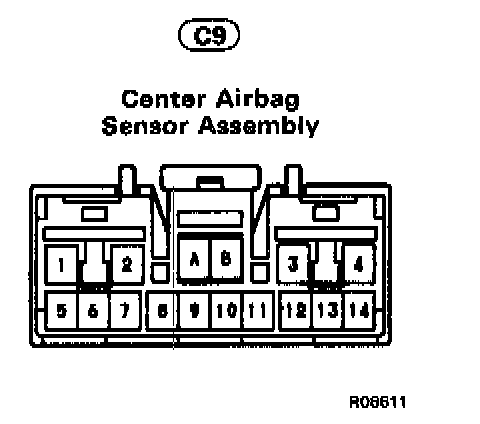

C9:

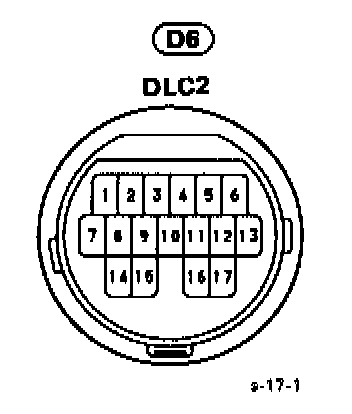

D6:

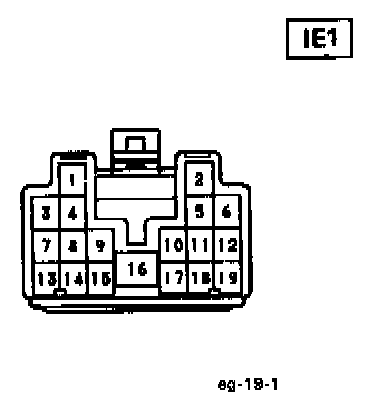

IE1:

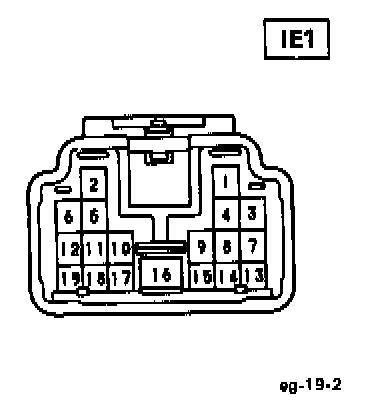

IE1:

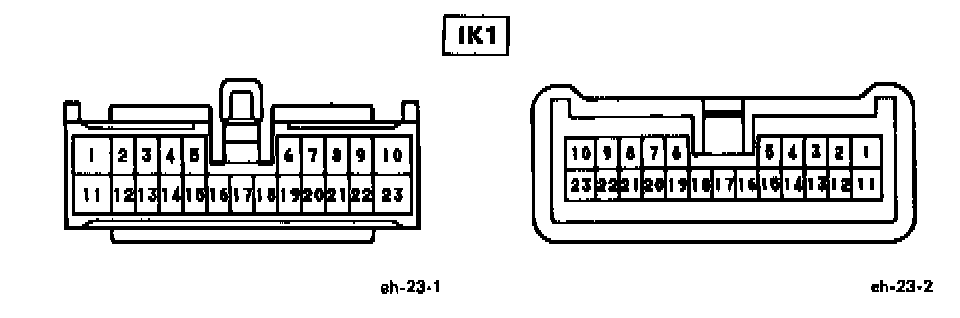

IK1:

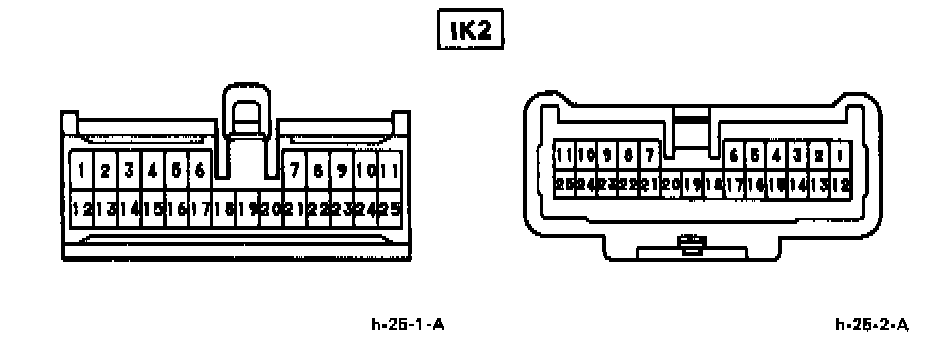

IK2:

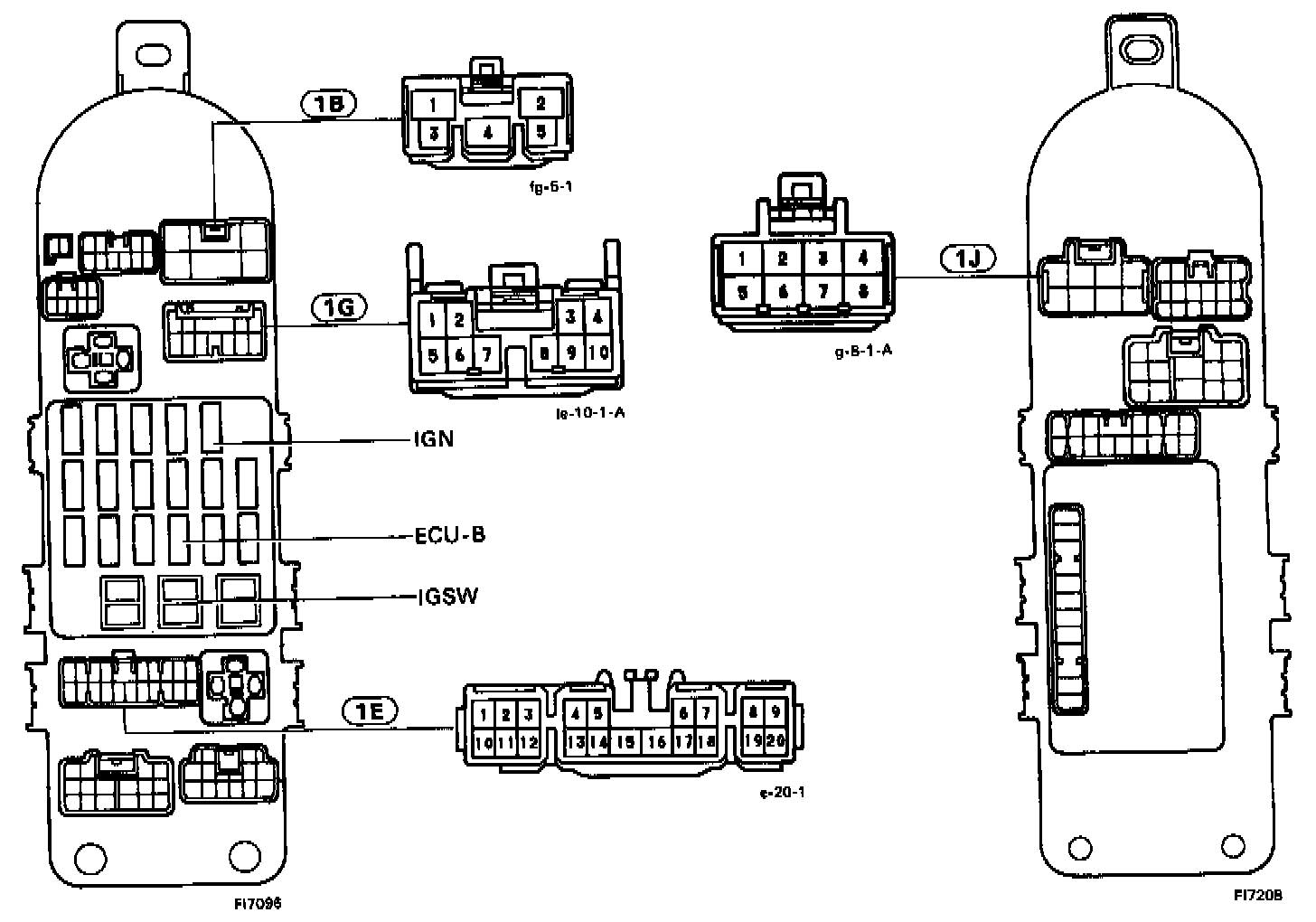

Junction Block No.1:

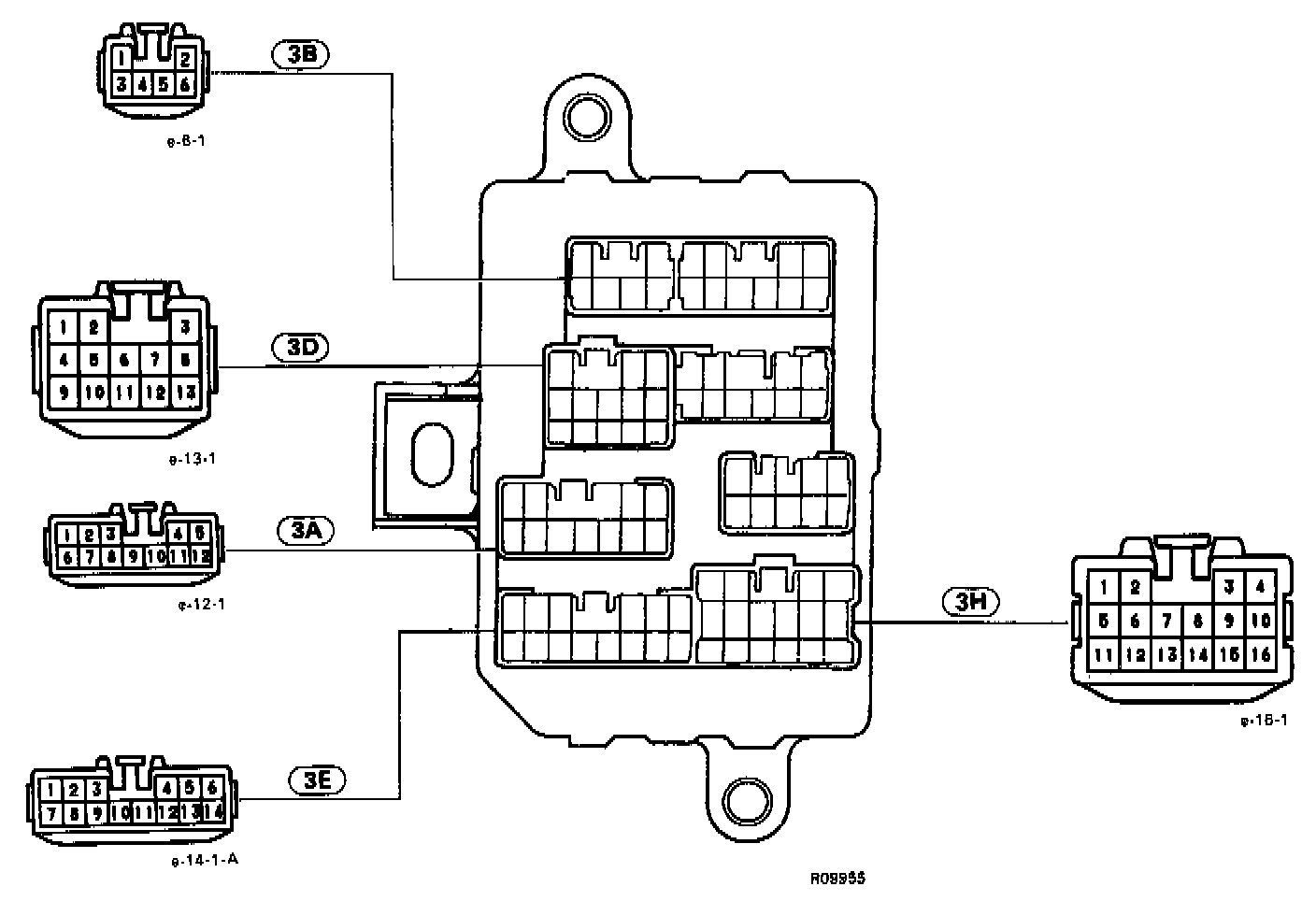

Junction Block No.3:
