Symptom Simulation

"lntermittent troubles or problems" are the malfunctions about which the customer has a complaint, but which do not occur and can not be confirmed in the workshop. The intermittent problems also include complaints about the SRS warning light going on and off erratically.
The self-diagnostic system stores the circuit of the intermittent problem in memory even if the ignition switch is turned off.
And, for accurate diagnosis of the problems, ask the customer to obtain information as much as possible following the customer problem analysis check sheet and try to reproduce the intermittent problem.
The problem simulation methods described are the effective ways for this nature of problem to produce the problem conditions by applying vibration, heat, and humidity.

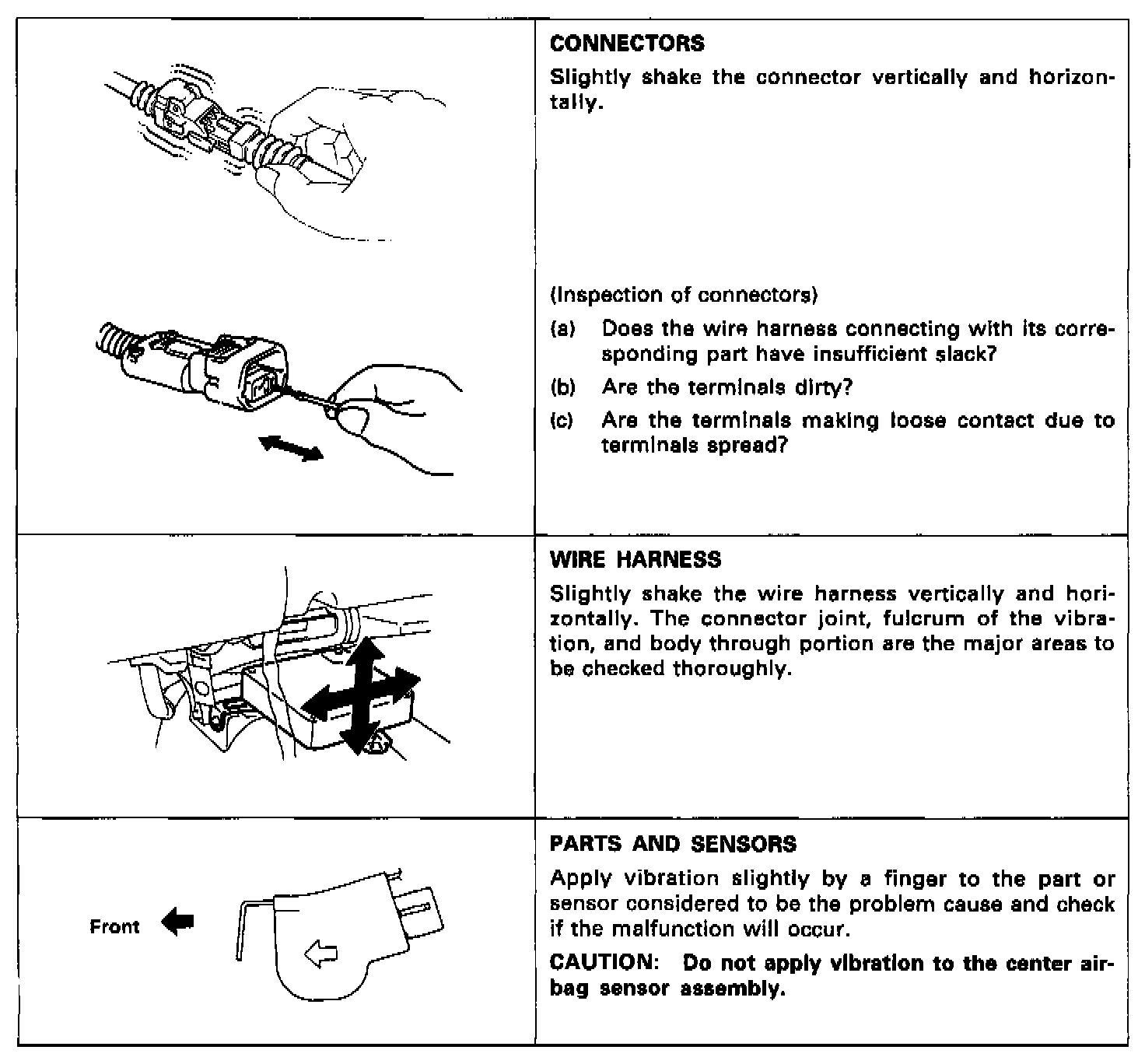

Vibration Method:
When vibration seems to be the major cause.

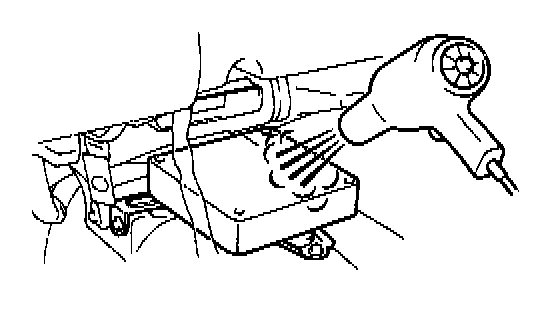

Heat Method:
When the problem seems to occur when the suspect area is heated.
Heat the component that is likely the cause of the malfunction with a hair dryer or similar object. Check to see if the malfunction will occur.

NOTICE
- Do not heat to more than 60°C (140°F) (Temperature limit that the component can be touched with a hand.)
- Do not apply heat directly to part in the ECU.

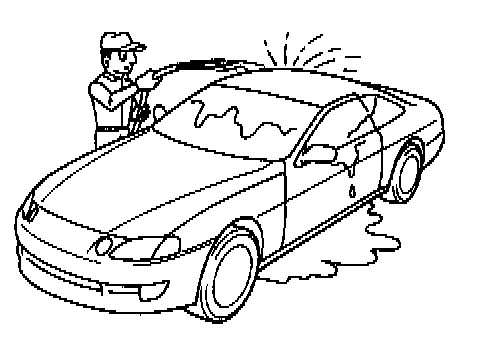

Water Sprinkling Method:
When the malfunction seems to occur on a rainy or in a high-humidity condition. Sprinkle water onto the vehicle and check to see if the malfunction will occur.

NOTICE: Never apply water directly onto the electronic components.

HINT
- If a vehicle is subject to water leakage, the leaked water may contaminate the ECU. When testing a vehicle with a water leakage problem, special caution must be paid.

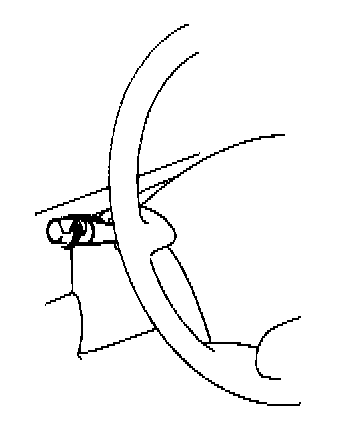

Other:
When a malfunction seems to occur when electrical load excessive. Turn on all electrical loads including the heater blower, headlights, rear window defogger, etc. and check to see if the malfunction will occur.
