Air Bag Control Module: Testing and Inspection

Inspection Items

1. Vehicles Not Involved In A Collision
Perform a diagnostic system check.

2. Vehicles Involved In A Collision
If The SRS Is Not Deployed
Perform a diagnostic system check.
If The SRS Is Deployed

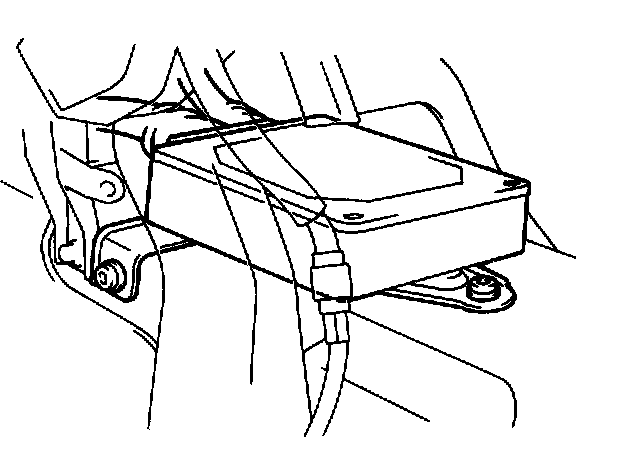

Replace the center airbag sensor assembly.

Replacement Requirements
In the following cases, replace the center airbag sensor assembly.

NOTICE: For replacement of the Center Airbag Sensor Assembly (Air Bag Control Module), see AIR BAG CONTROL MODULE: REMOVAL AND INSTALLATION and be sure to follow the correct procedure.

- If the SRS has been deployed in a collision.
- If the center airbag sensor assembly has been found to be faulty in troubleshooting.
- If the center airbag sensor assembly has been dropped.
