Variable Induction Control Valve: Testing and Inspection

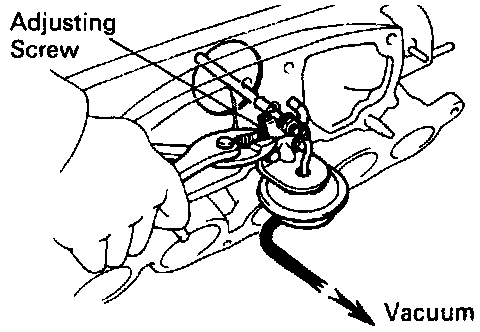

- With 53.3 kPa (400 mmHg, 15.75 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.





- If operation is not as specified, turn the adjusting screw.

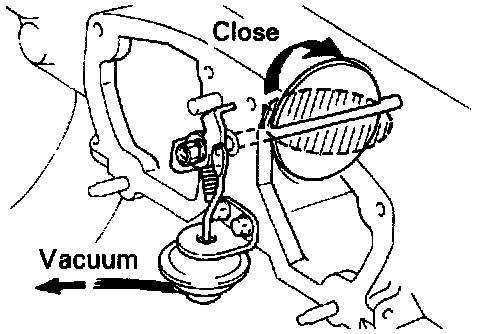

- 1 minute after applying the vacuum in (a), check that the actuator rod does not return.
