Installation

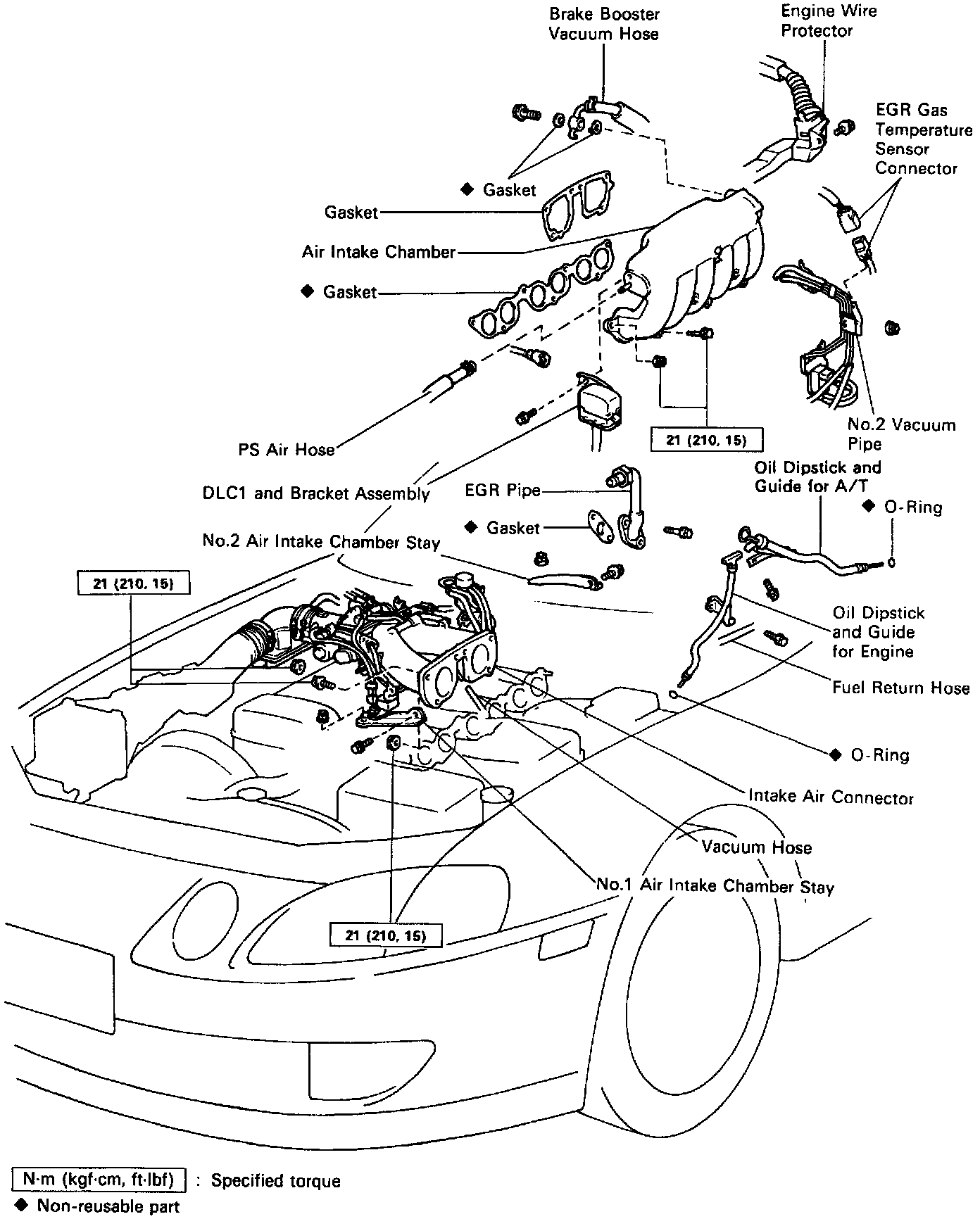

COMPONENTS FOR REMOVAL AND INSTALLATION





1. INSTALL AIR INTAKE CHAMBER.

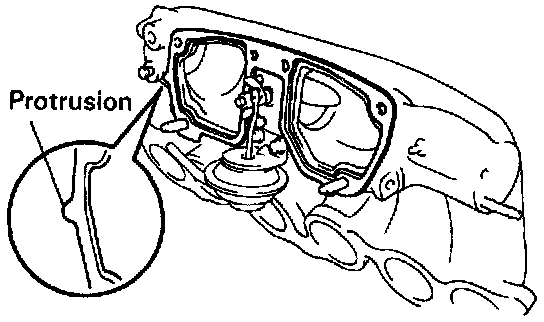

- Install a new gasket to the air intake chamber, facing the protrusion rearward.





- Install a new gasket to the intake manifold.

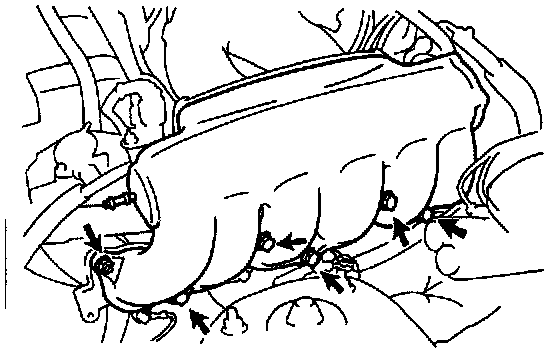

- Install the air intake chamber with the 5 bolts and nut.

Torque: 21 N.m (210 kgf cm, 15 ft.lbf)

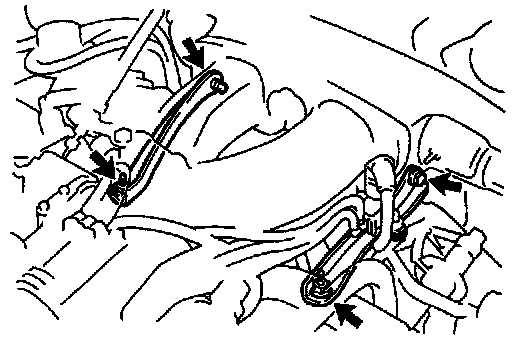

- Install the No.1 stay with the bolt and nut.

Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

- Install the No.2 stay with the bolt and nut.

Torque: 18 N.m (185 kgt.cm, 13 ft.lbf)

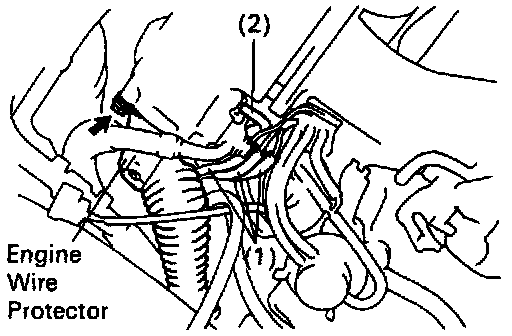

- Install the engine wire protector to the air intake chamber with the bolt.

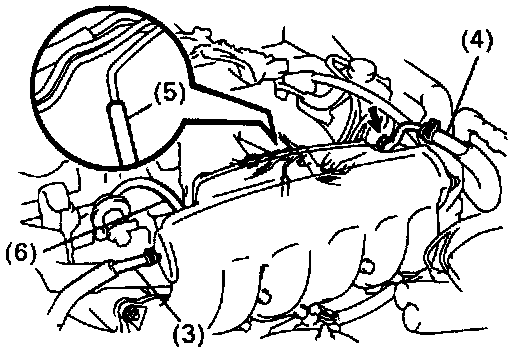

- Connect the following hoses:
- 3 vacuum hoses (from No.2 vacuum pipe) to No.1 vacuum pipe.
- Vacuum hose (from No.2 vacuum pipe) to air intake chamber.





- PS air hose from air intake chamber.
- Brake booster vacuum hose to air intake chamber Connect the vacuum hose with 2 new gaskets and union bolt.

Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)

- Vacuum hose (from actuator for ACIS) to No.1 vacuum pipe.
- Except California:
Vacuum sensing hose (from fuel pressure regulator) to air intake chamber.





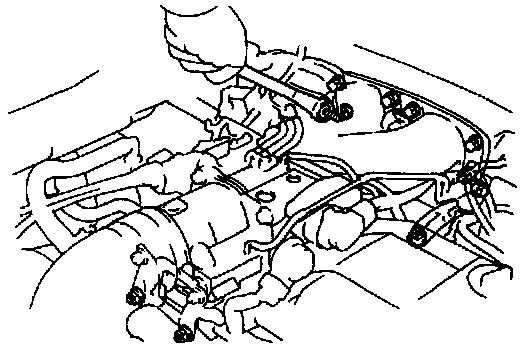

- Install the intake air connector to the air intake chamber with the 4 bolts and 2 nuts.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

- Install the throttle body bracket to the cylinder head with the 2 nuts.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)





2. INSTALL NO.2 VACUUM PIPE.
- Install the vacuum pipe with the 2 nuts. Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

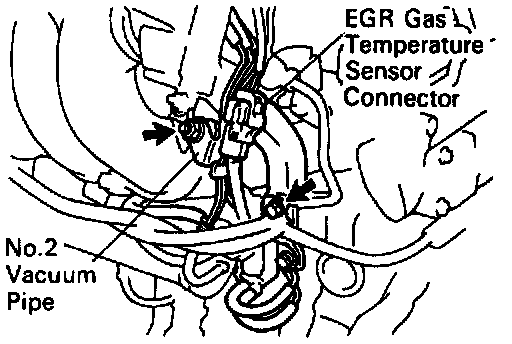

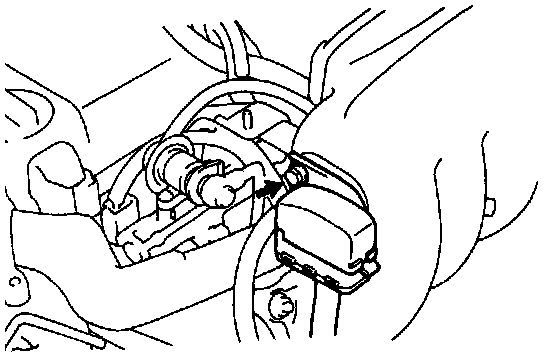

3. CONNECT EGR GAS TEMPERATURE SENSOR CONNECTOR.
- Connect the sensor connector to the wiring connector.
- Install the connector to the No.2 vacuum pipe.





4. INSTALL EGR PIPE.
- Temporarily install the union nut of the EGR pipe.

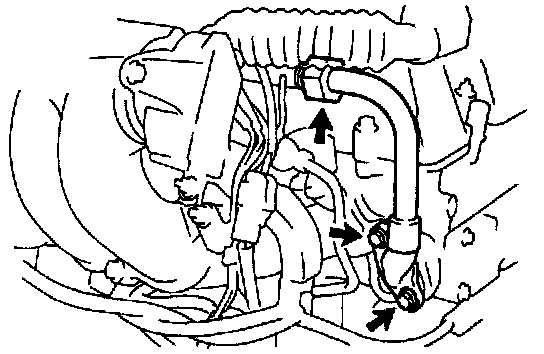

- Install a new gasket and the EGR pipe to the cylinder head with the 2 bolts.

Torque: 21 N.m (210 kgf.cm. 15 ft.lbf)

- Tighten the union nut of the EGR pipe.

Torque: 64 N.m (650 kgf.cm, 47 ft.lbf)

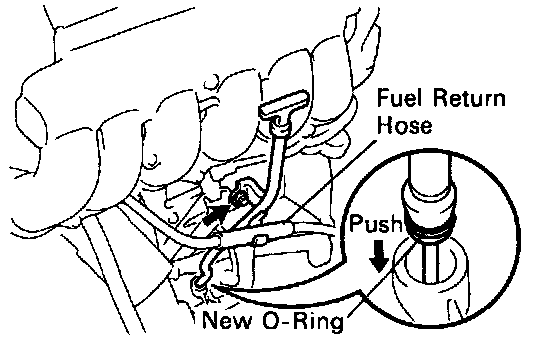

5. INSTALL OIL DIPSTICK GUIDE FOR ENGINE.

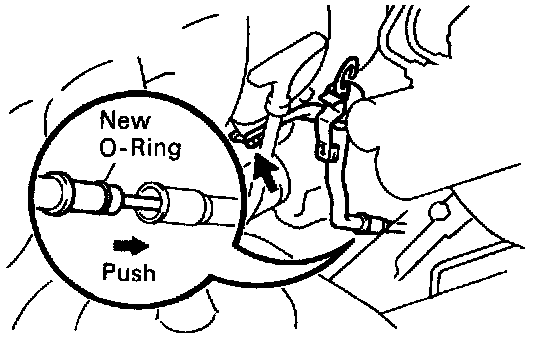

- Install a new 0-ring on the dipstick guide.
- Apply soapy water on the 0-ring.
- Connect the dipstick guide end to the oil pan.
- Install the dipstick guide with the bolt.
- Install the fuel return hose to the clamp of the dipstick guide.





6. WITH AUTOMATIC TRANSMISSION:
INSTALL OIL DIPSTICK GUIDE FOR A/T.
- Install a new 0-ring on the dipstick guide.
- Apply soapy water on the 0-ring.
- Connect the dipstick guide end to the oil pan.
- Install the dipstick guide with the bolt.





7. INSTALL DATA LINK CONNECTOR 1 (DLC1) AND BRACKET ASSEMBLY.
- Install the DLC1 and bracket with the bolt.
8. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
