Removal

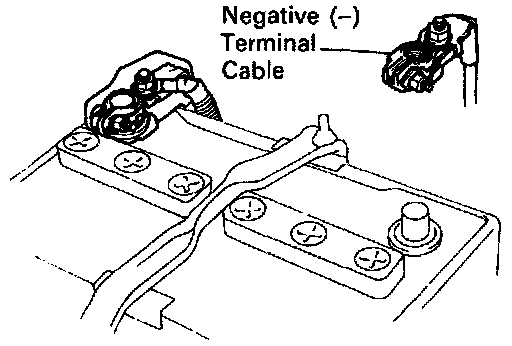

1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

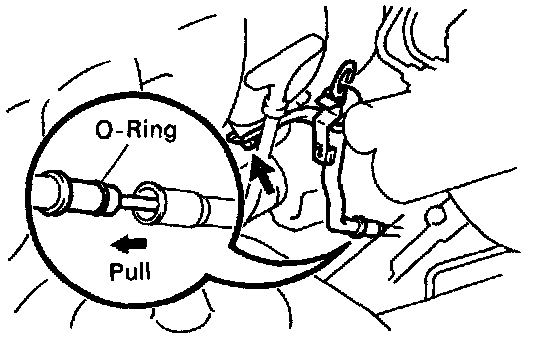

2. WITH A/T: REMOVE OIL DIPSTICK AND GUIDE FOR A/T.
- Remove the bolt.
- Pull out the dipstick guide together with the dipstick.
- Remove the 0-ring from the dipstick guide.





3. REMOVE VACUUM TANK AND VACUUM SWITCHING VALVE (VSV) ASSEMBLY.

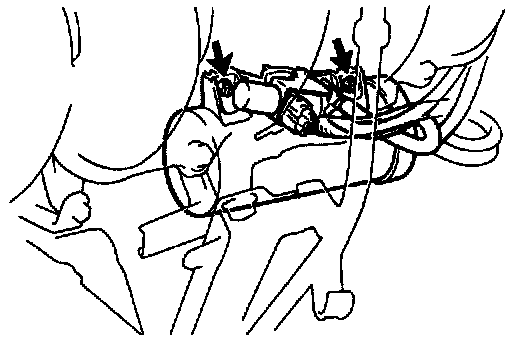

- Remove the 2 nuts, and disconnect the vacuum tank from the intake manifold.

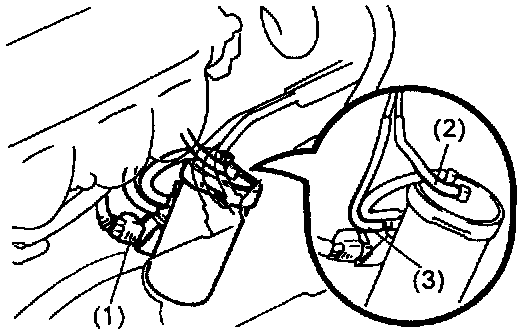

- Disconnect the following connector and hoses, and remove the vacuum tank and VSV assembly:
- VSV connector
- Vacuum hose (from air intake chamber) from port B of vacuum tank
- Vacuum hose (from actuator) from VSV

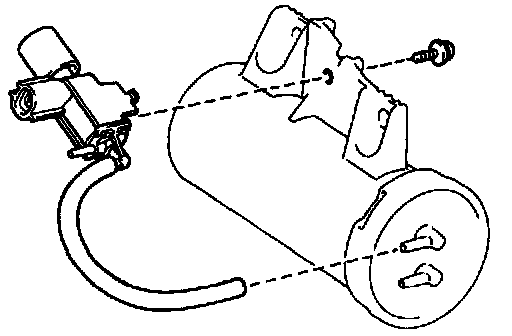

4. REMOVE VSV FROM VACUUM TANK.
- Disconnect the vacuum hose from port A of the vacuum tank.
- Remove the screw and VSV.
