Maintenance Precautions

1. CHECK CORRECT ENGINE TUNE-UP.

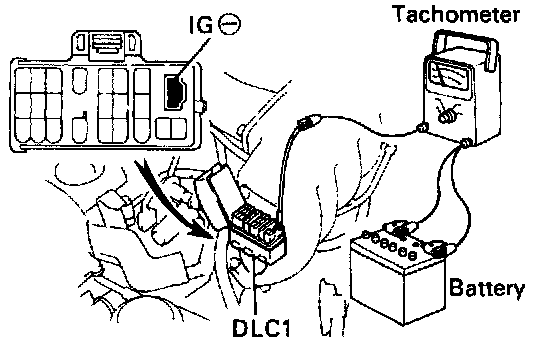

2. PRECAUTION WHEN CONNECTING GAUGE:
- Use battery as the power source for the timing light, tachometer, etc.





- Connect the tester probe of a tachometer to the terminal IG(-) of the DLC1.
3. IN EVENT OF ENGINE MISFIRE, FOLLOWING PRECAUTIONS SHOULD BE TAKEN:
- Check proper connection of battery terminals, etc.

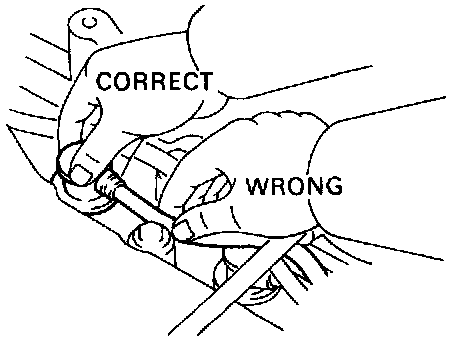

- Handle high-tension cords carefully.
- After repair work, check that the ignition coil terminals and all other ignition system lines are reconnected securely.
- When cleaning the engine compartment, be especially careful to protect the electrical system from water.
4. PRECAUTIONS WHEN HANDLING OXYGEN SENSOR:
- Do not allow oxygen sensor to drop or hit against an object.
- Do not allow the sensor to come into contact with water.
