Installation

1. INSTALL FUEL PUMP.

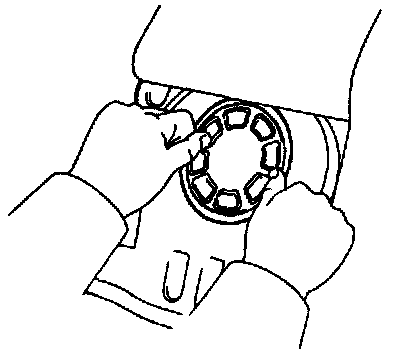

- Install a new gasket to the pump set plate.





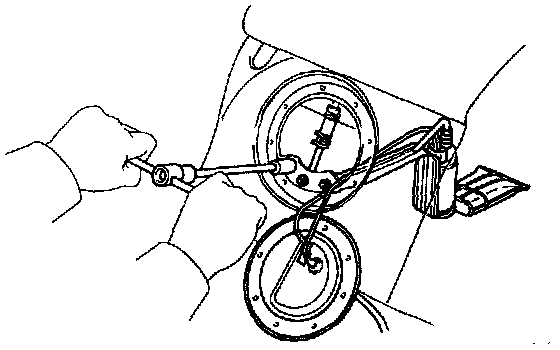

- Connect the fuel hose to the fuel pump bracket, and install the fuel pump and bracket assembly with the 3 nuts.

Torque: 5.4 Nm (48 in lb)





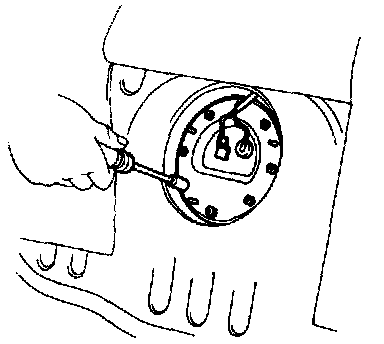

- Install the fuel pump set plate with the 8 bolts.

Torque: 3.9 Nm (35 in lb)





2. INSTALL PARTITION COVER.
- Install the partition cover with butyl tape.
3. INSTALL SEAT BACK AND CUSHION.

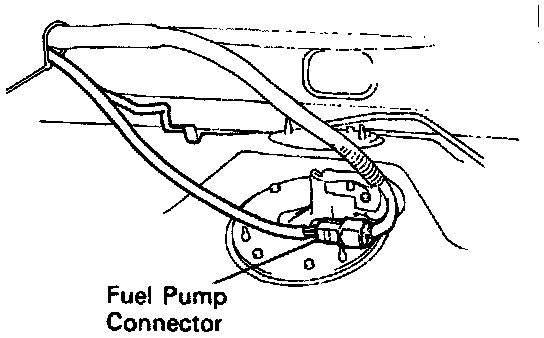

4. CONNECT FUEL PUMP CONNECTOR.
5. INSTALL LUGGAGE COMPARTMENT TRIM COVER.
6. INSTALL SPARE TIRE.
7. INSTALL LUGGAGE COMPARTMENT FLOOR MAT.
8. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
9. CHECK FOR FUEL LEAKS.
