Removal

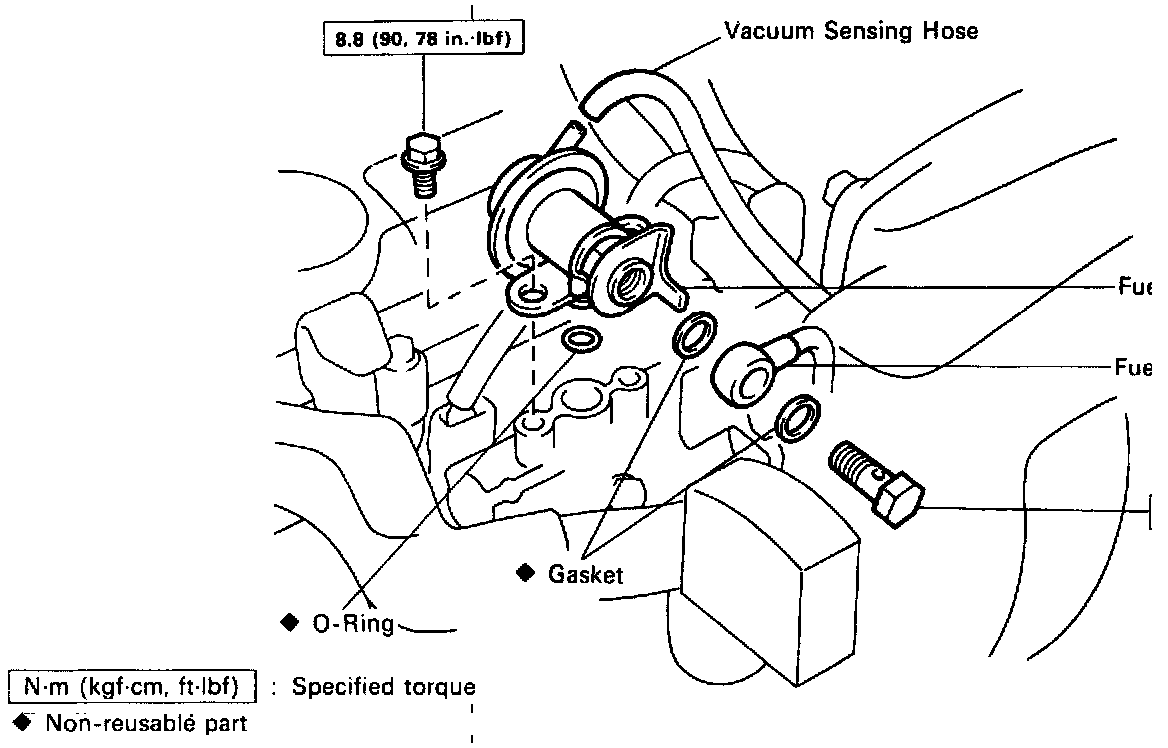

COMPONENTS FOR REMOVAL AND INSTALLATION

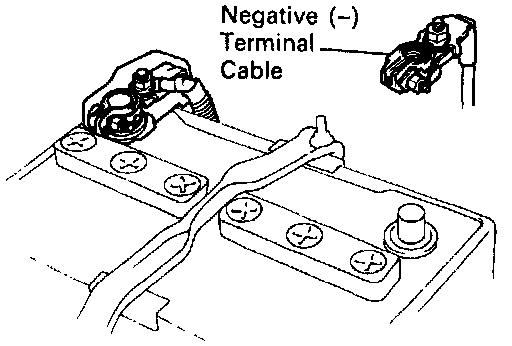

1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

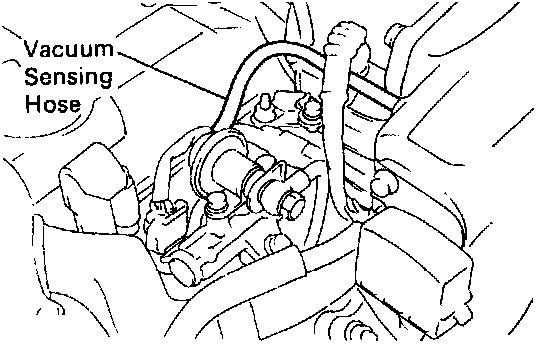

2. DISCONNECT VACUUM SENSING HOSE FROM FUEL PRESSURE REGULATOR.





3. DISCONNECT FUEL RETURN PIPE FROM FUEL PRESSURE REGULATOR.

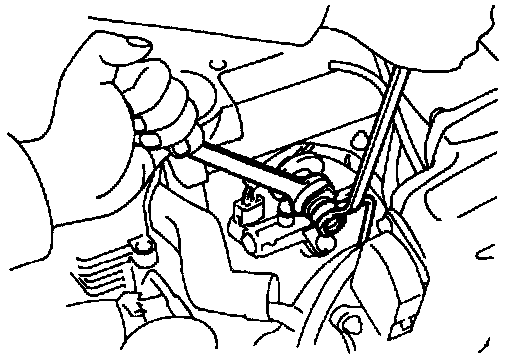

- Remove the union bolt and 2 gaskets, and disconnect the return pipe from the pressure regulator.

CAUTION:
- Put a shop rag under the pressure regulator.
- Slowly loosen the union bolt.

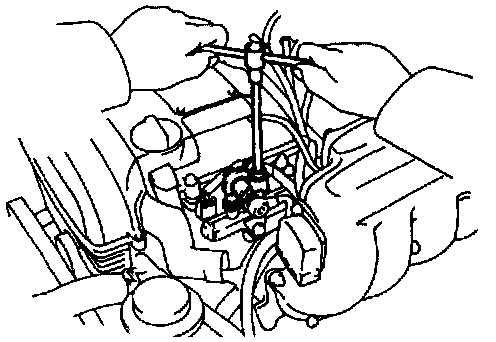

4. REMOVE FUEL PRESSURE REGULATOR.
- Remove the 2 bolts, and pull out the pressure regulator.
- Remove the 0-ring from the pressure regulator.
