Installation

COMPONENTS FOR REMOVAL AND INSTALLATION





1. INSTALL FUEL PRESSURE REGULATOR.

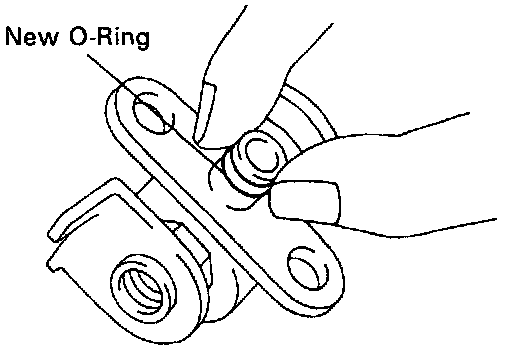

- Apply a light coat of gasoline to a new 0-ring, and install it to the pressure regulator.

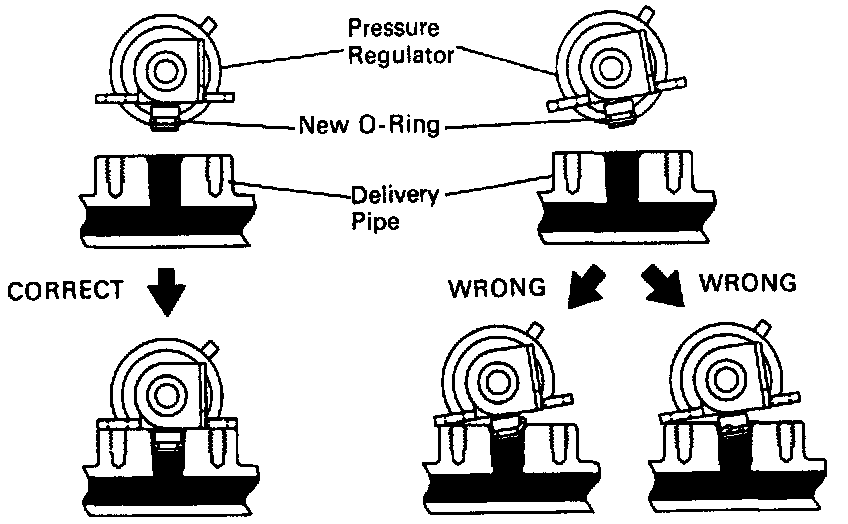

- Attach the pressure regulator to the delivery pipe.
- Check that the pressure regulator rotates smoothly.





NOTICE: If it does not rotate smoothly, the 0-ring may be pinched, so remove the pressure regulator and perform again steps (b) and (c) above.

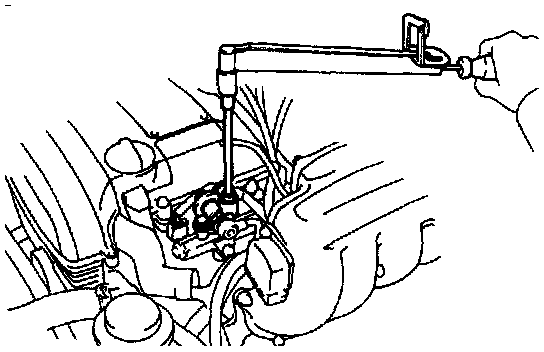

- Install the pressure regulator with the 2 bolts.

Torque: 8.8 Nm (78 in lb)





2. CONNECT FUEL RETURN PIPE TO FUEL PRESSURE REGULATOR

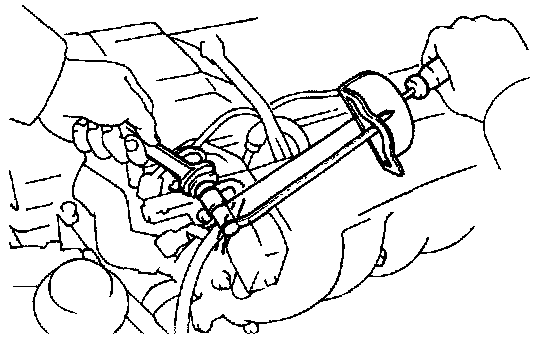

- Install the return pipe with 2 new gaskets and the union bolt.

Torque: 27 Nm (20 ft lb)

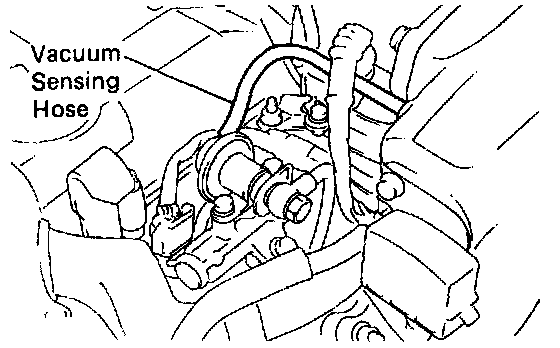

3. CONNECT VACUUM SENSING HOSE TO FUEL PRESSURE REGULATOR.
4. CONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
5. CHECK FOR FUEL LEAKS.
