Evaporative Emissions System: Description and Operation

PURPOSE:

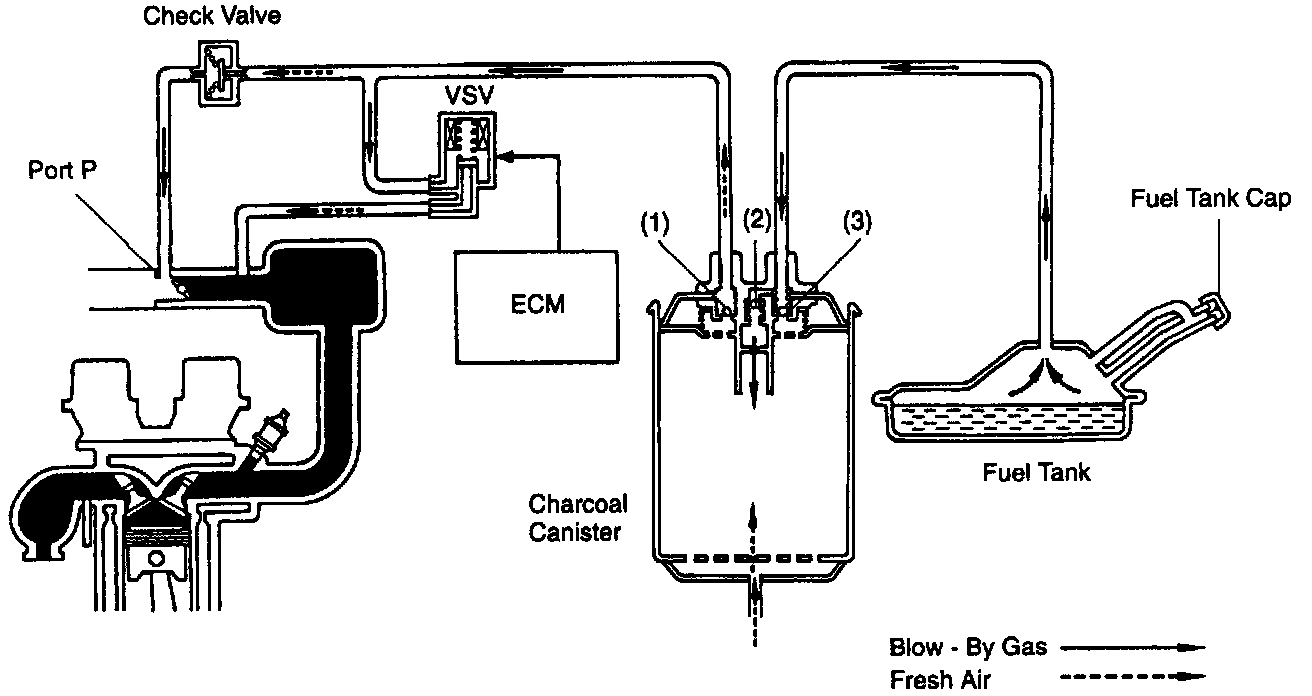

To reduce HC emission. evaporated fuel from the fuel tank is routed through the charcoal canister to the intake manifold for combustion in the cylinders.








OPERATION
The ECM controls the on-off period of the Vacuum Switching Valve (VSV) to adjust the EVAP purge quantity in accordance with the engine load.
