With Lexus Hand-Held Tester

REFERENCE VALUE OF ECM DATA:

HINT: ECM data can be monitored by LEXUS hand-held tester.





1. Hook up the LEXUS hand-held tester to the DLC2.
2. Monitor ECM data by following the prompts on the tester screen.

Please refer to the LEXUS hand-held tester operator's manual for further details.

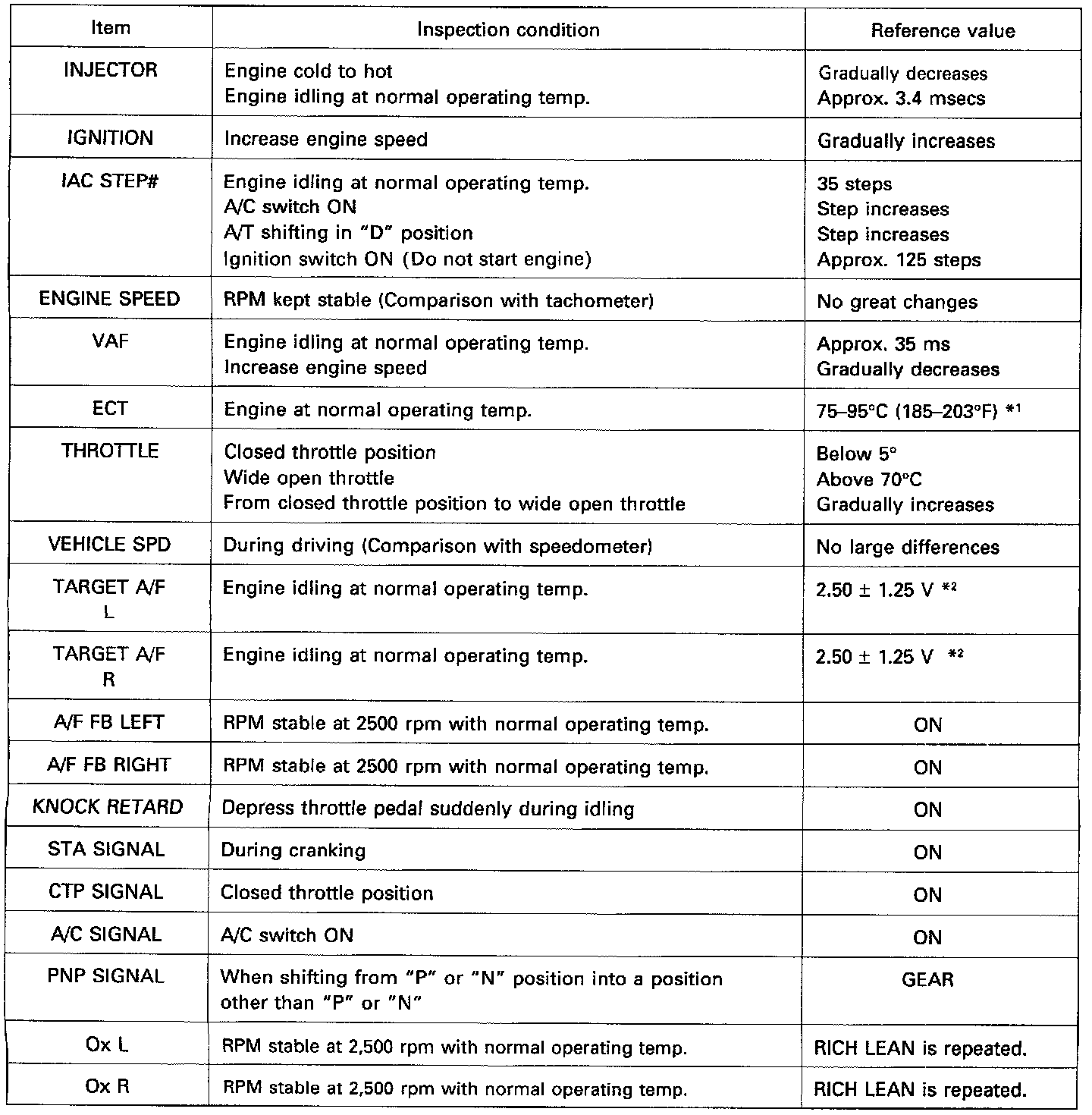

REFERENCE VALUE

*1: If the engine coolant temp. sensor circuit is open or shorted, the ECM assumes an engine coolant temp. value of 8O°C (176°F).
*2: When feedback control is forbidden, 0 V is displayed.
*3: Only A/T.
*4: Oxygen sensor (Front).
*5: Oxygen sensor (Rear).

ECM TERMINAL VALUES MEASUREMENT USING LEXUS BREAK-OUT-BOX AND LEXUS HAND-HELD TESTER:

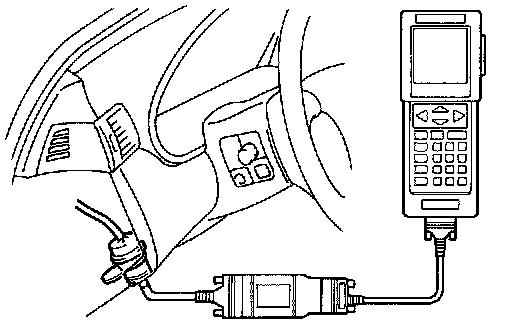

1. Hook up the LEXUS break-out-box and LEXUS hand-held tester to the vehicle.
2. Read the ECM input/output values by following the prompts on the tester screen.

HINT: LEXUS hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.

Please refer to the LEXUS hand-held tester/LEXUS break-out box operator's manual for further details.
