Electrical Troubleshooting

HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE:
1. For troubleshooting, diagnostic trouble code charts or problem symptom charts are provided for each circuit with detailed inspection procedures on the following pages.
2. When all the component parts, wire harnesses and connectors of each circuit except the ECU are found to be normal in troubleshooting, then it is determined that the problem is in the ECU. Accordingly, if diagnosis is performed without the problem symptoms occurring, the instruction will be to check and replace the ECU, even if the problem is not in the ECU. So, always confirm that the problem symptoms are occurring, or proceed with inspection while using the symptom simulation method.
3. The instructions "Check wire harness and connector" and "Check and replace ECU" which appear in the inspection procedure, are common and applicable to all diagnostic trouble codes. Follow the procedure outlined below whenever these instructions appear.

Check Wire Harness and Connector:
The problem in the wire harness or connector is an open circuit or a short circuit.

OPEN CIRCUIT:











This could be due to a disconnected wire harness, faulty contact in the connector, a connector terminal pulled out, etc.

HINT:
1. It is rarely the case that a wire is broken in the middle of it. Most cases occur at the connector. In particular, carefully check the connectors of sensors and actuators.

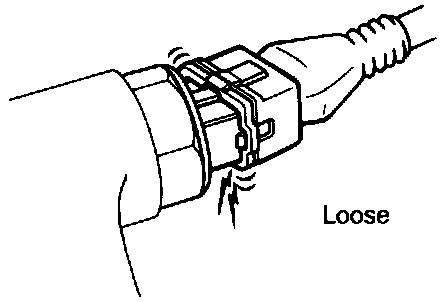

2. Faulty contact could be due to rusting of the connector terminals, to foreign materials entering terminals or a drop in the contact pressure between the male and female terminals of the connector. Simply disconnecting and reconnecting the connectors once changes the condition of the connection and may result in a return to normal operation. Therefore, in troubleshooting, if no abnormality is found in the wire harness and connector check, but the problem disappears after the check, then the cause is considered to be in the wire harness or connectors.

SHORT CIRCUIT:
This could be due to a short circuit between the wire harness and the body ground or to a short inside the switch, etc.

HINT:
- When there is a short between the wire harness and body ground, check thoroughly whether the wire harness is caught in the body or is clamped properly.

1. CONTINUITY CHECK (OPEN CIRCUIT CHECK):

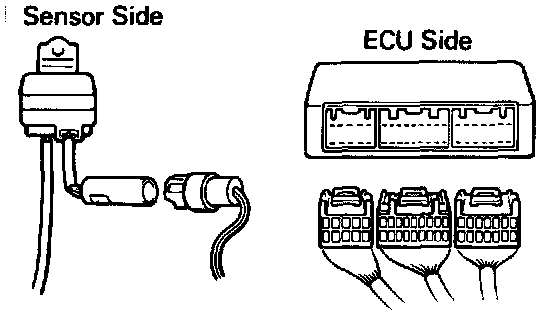

- Disconnect the connectors at both ECU and sensor sides.

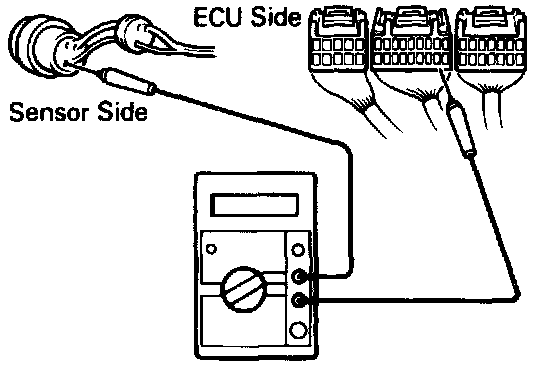

- Measure the resistance between the applicable terminals of the connectors.

Resistance: 1 Ohm or less

HINT:

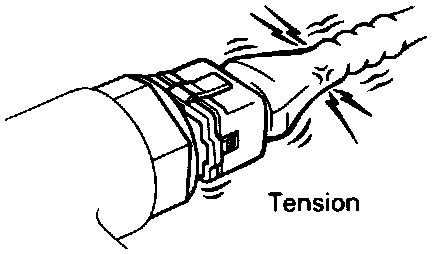

- Measure the resistance while lightly shaking the wire harness vertically and horizontally.





- When tester probes are inserted into a connector, insert the probes from the back. For waterproof connectors in which the probes cannot be inserted from the back, be careful not to bend the terminals when inserting the tester probes.

2. RESISTANCE CHECK (SHORT CIRCUIT CHECK):





- Disconnect the connectors at both ends.

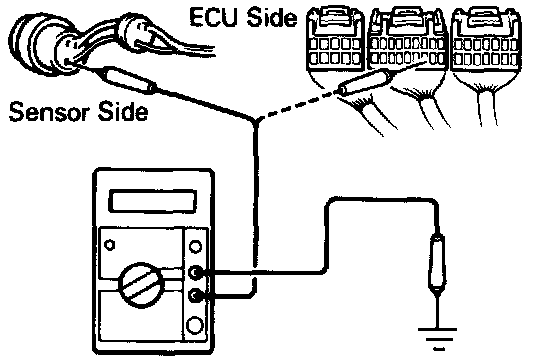

- Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out this check on the connectors on both ends.

Resistance: 1 M Ohm or higher

HINT: Measure the resistance while lightly shaking the wire harness vertically and horizontally.
3. VISUAL CHECK AND CONTACT PRESSURE CHECK:
- Disconnect the connectors at both ends.
- Check for rust or foreign material, etc. on the terminals of the connectors.

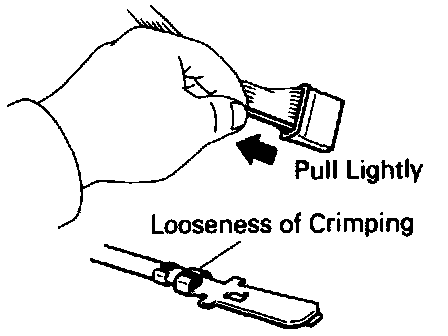

- Check crimped portions for looseness or damage and check if the terminals are secured in the lock position.

HINT: The terminals should not come out when pulled lightly.

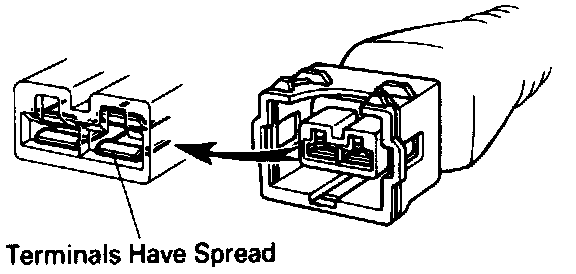

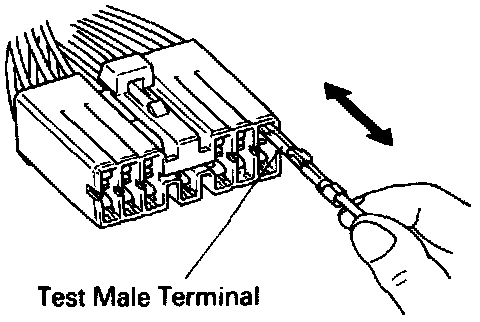

- Prepare a test male terminal and insert it in the female terminal, then pull it out.

HINT: When the test terminal is pulled out more easily than others, there may be poor contact in that section.

Actual examples of the inspection method for open circuit and short circuit are explained below.
1. OPEN CIRCUIT CHECK:

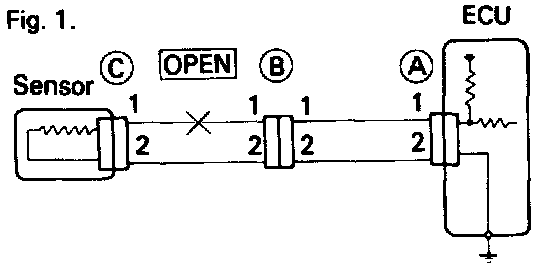

- For the open circuit in the wire harness in Fig. 1, perform "(a) Continuity Check" or '(b) Voltage Check" to locate the section.
- Continuity Check:
- Disconnect connectors A and C and measure the resistance between them.

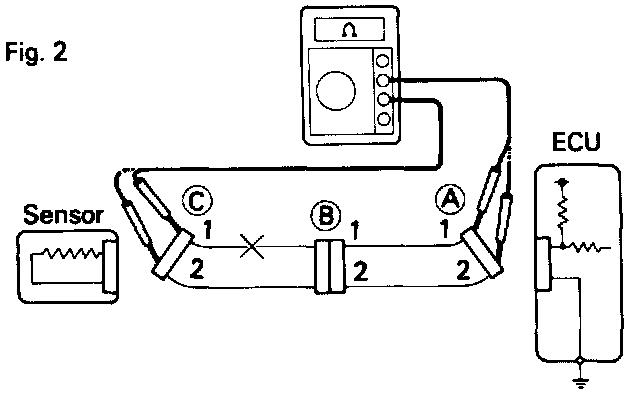

In the case of Fig. 2,
Between terminal 1 of connector A and terminal 1 of connector C -> No continuity (open).
Between terminal 2 of connector A and terminal 2 of connector C -> Continuity.
Therefore, it is found out that there is an open circuit between terminal 1 of connector A and terminal 1 of connector (C).
- Disconnect connector B and measure the resistance between connectors A and B, B and C.

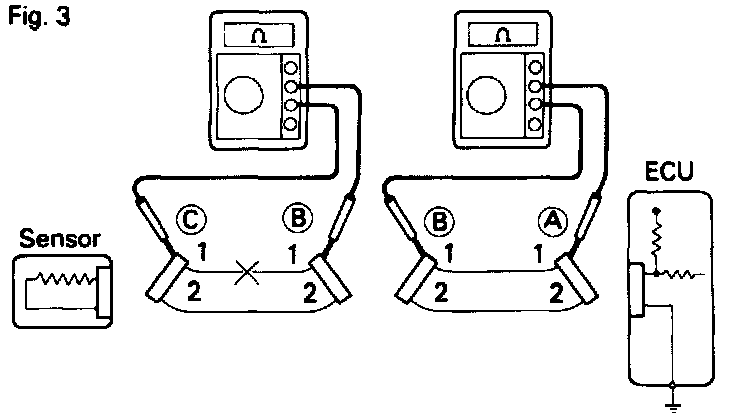

In the case of Fig. 3,
Between terminal 1 of connector A and terminal 1 of connector B -> Continuity.
Between terminal 1 of connector B and terminal 1 of connector C -> No Continuity (open).
Therefore, it is found out that there is an open circuit between terminal 1 of connector B and terminal 1 of connector C.

- Voltage Check:
In a circuit in which voltage is applied (to the ECU connector terminal), an open circuit can be checked for by conducting a voltage check.

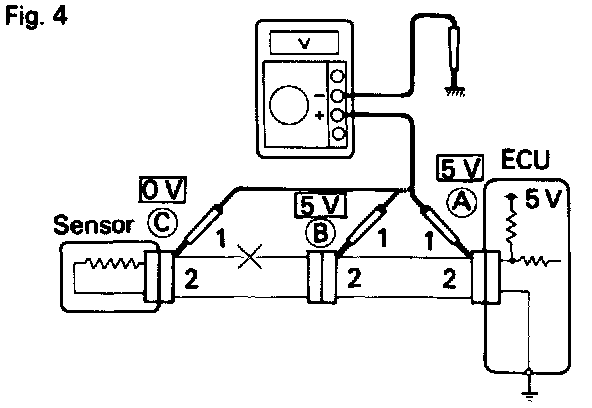

- As shown in Fig. 4, with each connector still connected, measure the voltage between body ground and terminal 1 of connector A at the ECU 5V output terminal, terminal 1 of connector B, and terminal 1 of connector C, in that order.
If the results are:
5 V: Between Terminal 1 of connector A and Body Ground.
5 V: Between Terminal 1 of connector B and Body Ground.
O V: Between Terminal 1 of connector C and Body Ground.
Then it is found out that there is an open circuit in the wire harness between terminal 1 of B and terminal 1 of C.
2. SHORT CIRCUIT CHECK

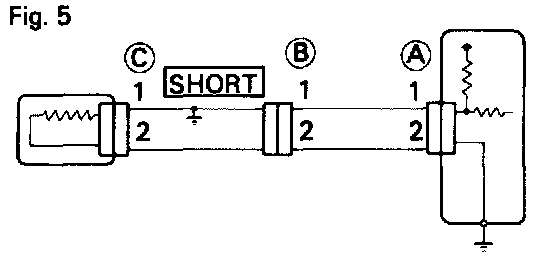

If the wire harness is ground shorted as in Fig. 5, locate the section by conducting a "continuity check with ground".


- Continuity Check with Ground:
- Disconnect connectors A and C and measure the resistance between terminals 1 and 2 of connector and body ground.

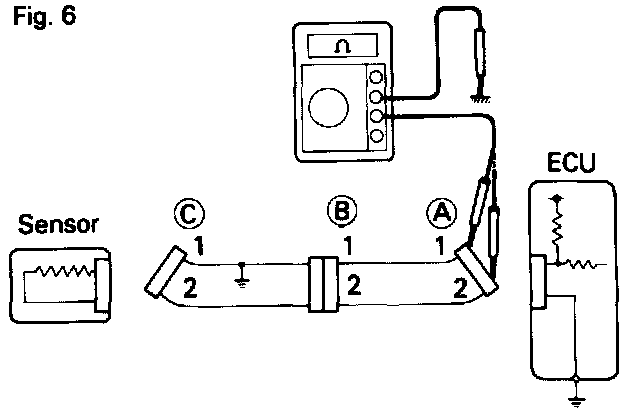

In the case of Fig. 6,
Between terminal 1 of connector A and body ground -> Continuity.
Between terminal 2 of connector A and body ground -> No continuity (open).
Therefore, it is found out that there is a short circuit between terminal 1 of connector A and terminal 1 of connector C.

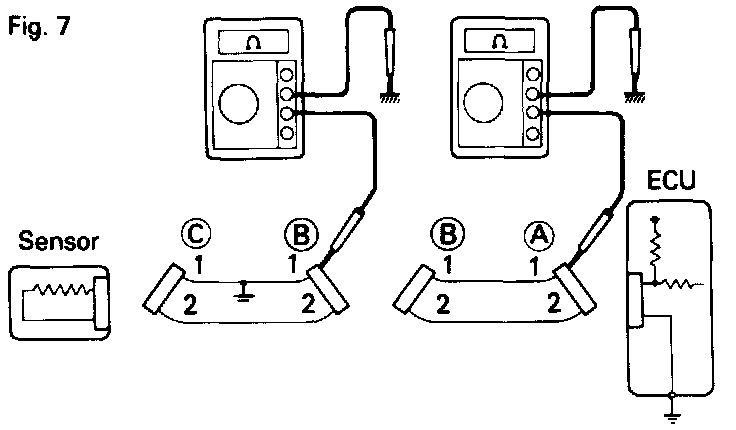

- Disconnect connector B and measure the resistance between terminal 1 of connector A and body ground, and terminal 1 of connector B and body ground.
Between terminal 1 of connector A and body ground -> No continuity (open).
Between terminal 1 of connector B and body ground -> Continuity.
Therefore, it is found out that there is a short circuit between terminal 1 of connector B and terminal 1 of connector C.
