TE1, TE2 Terminal Circuit
CIRCUIT DESCRIPTIONTerminal TE1 is located in the data link connectors 1 and 2.
Terminal TE2 is located ONLY in data link connector 2.
The data link connector 1 located in the engine compartment and the data link connector 2 located in the cabin. When these terminals are connected with the El terminal, diagnostic trouble codes in normal mode or test mode can be read from the malfunction indicator lamp in the combination meter.

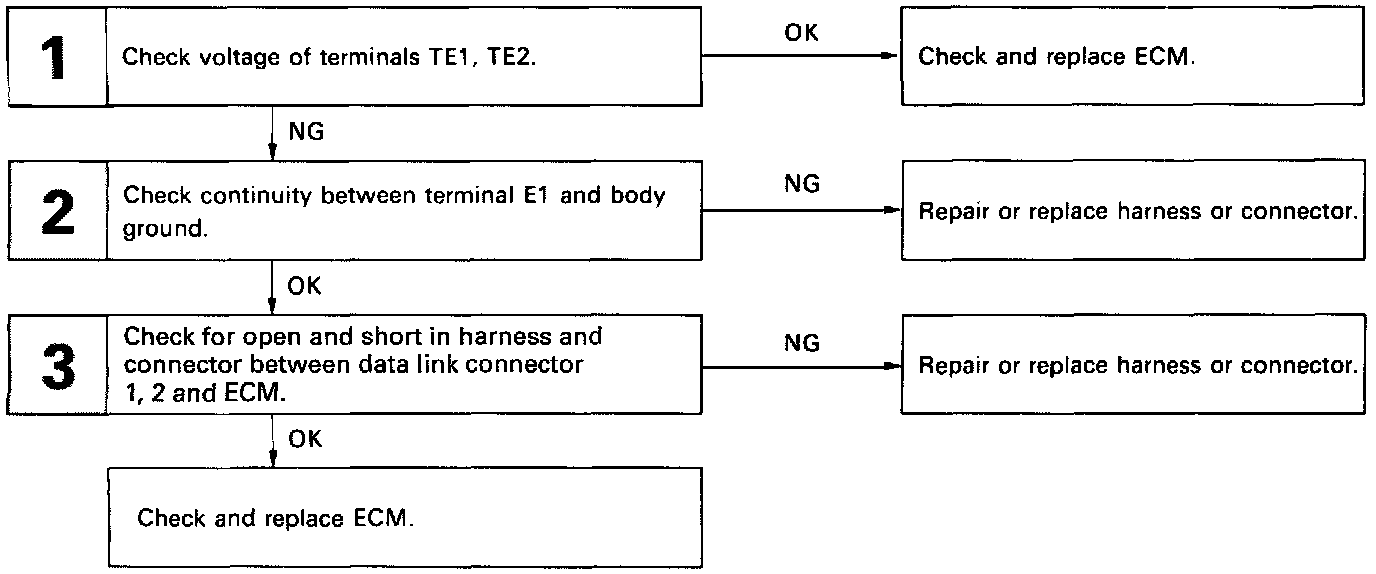

DIAGNOSTIC CHART
HINT: If terminals TE1 and TE2 are connected with terminal E1, diagnostic trouble code is not output or test mode is not activated.
Even though terminal TE1 is not connected with terminal E1, the malfunction indicator lamp blinks.
For the above phenomenon, the likely cause is an open or short in the wire harness, or malfunction inside the ECM.

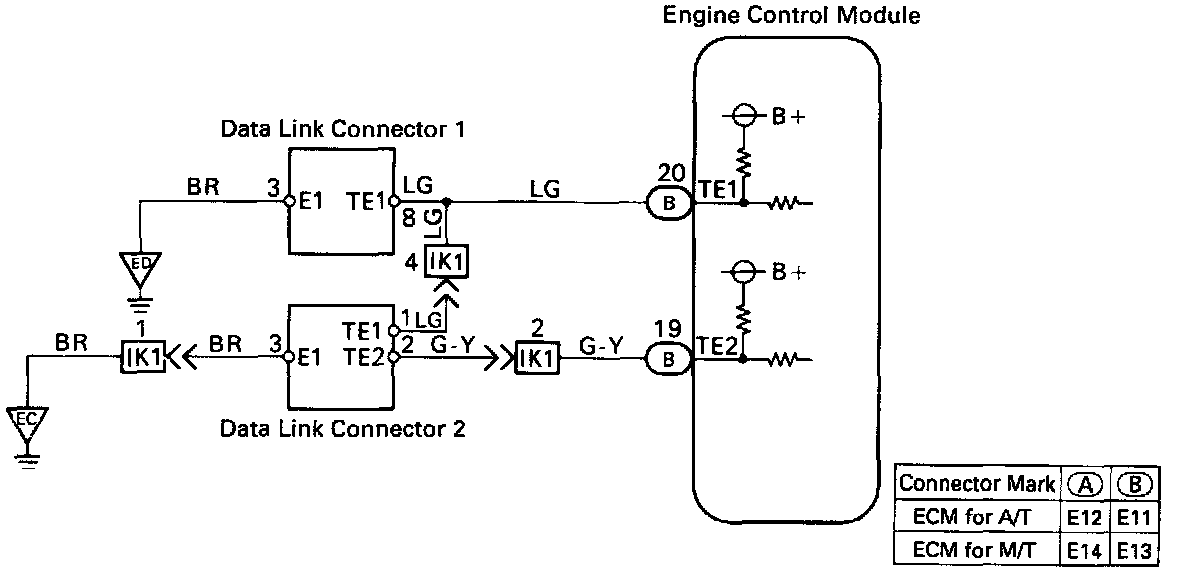

WIRING DIAGRAM

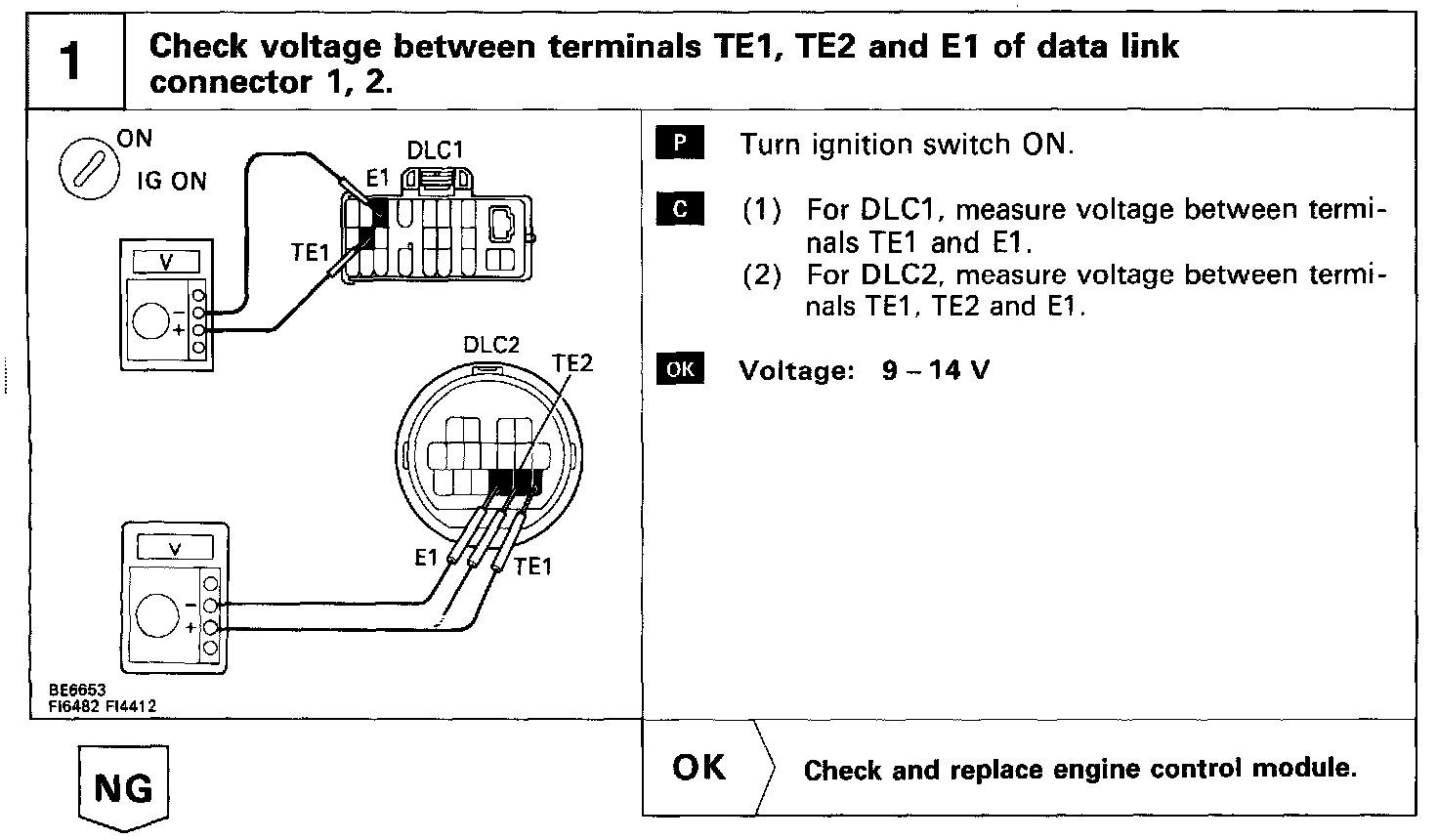

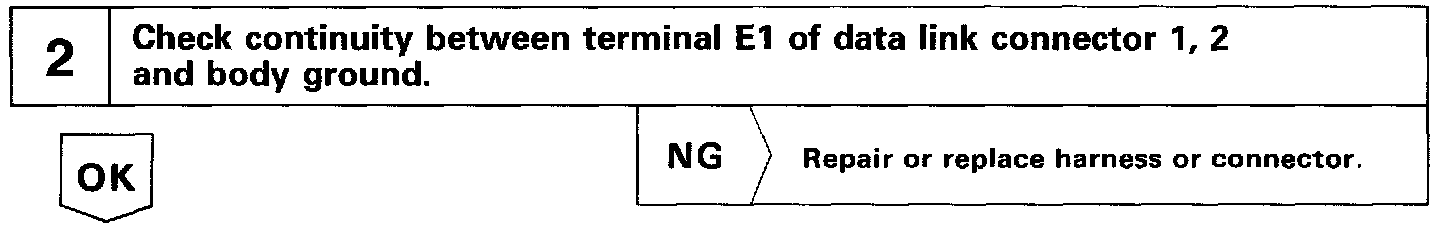

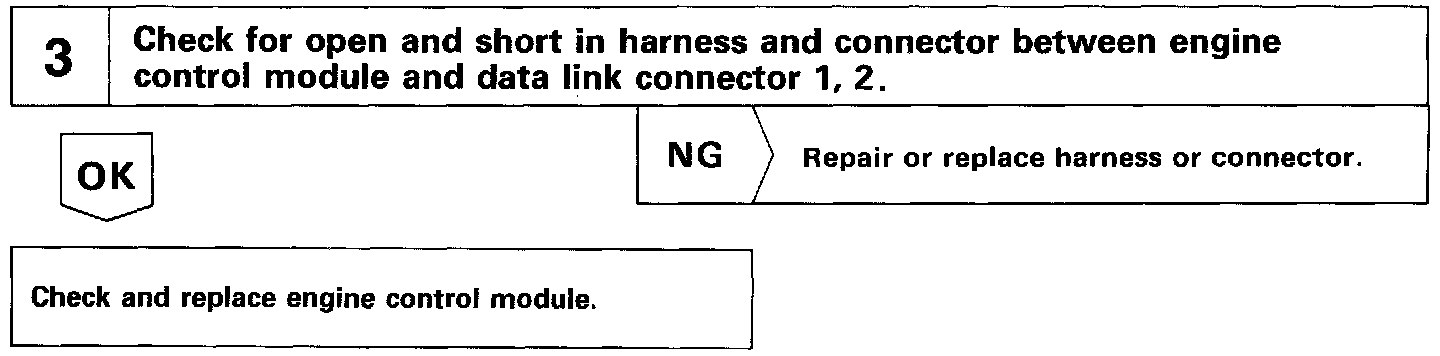

INSPECTION PROCEDURE
