Back Up Power Source Circuit

CIRCUIT DESCRIPTION
Battery positive voltage is supplied to terminal BATT of the ECM even if when the ignition switch is off, for use by the diagnostic trouble code memory and air-fuel ratio adaptive control value memory, etc.

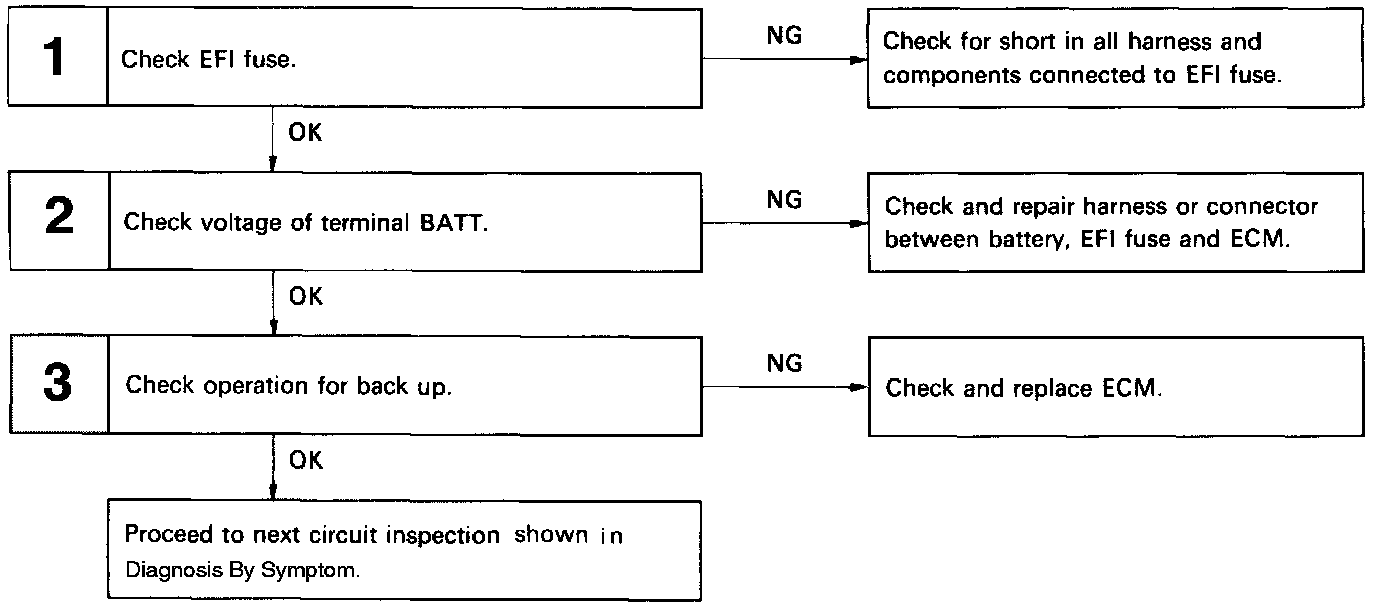

DIAGNOSTIC CHART

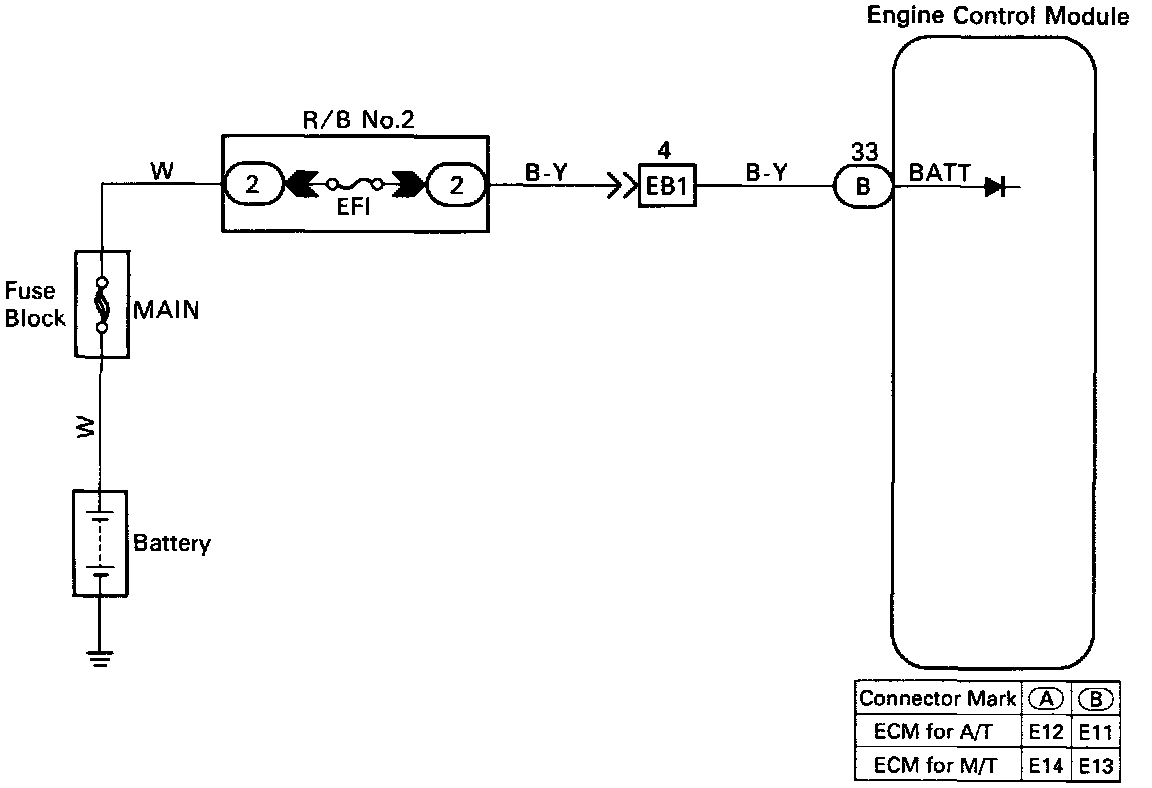

WIRING DIAGRAM

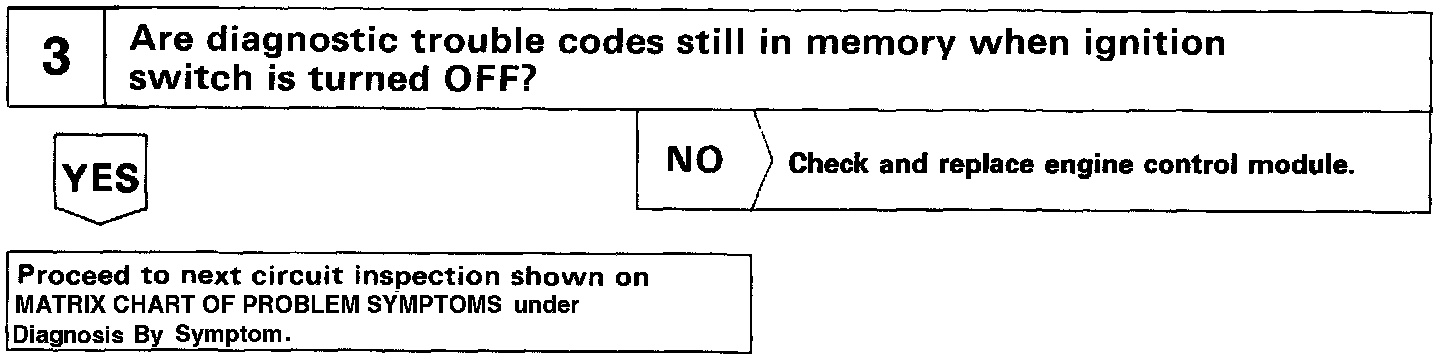

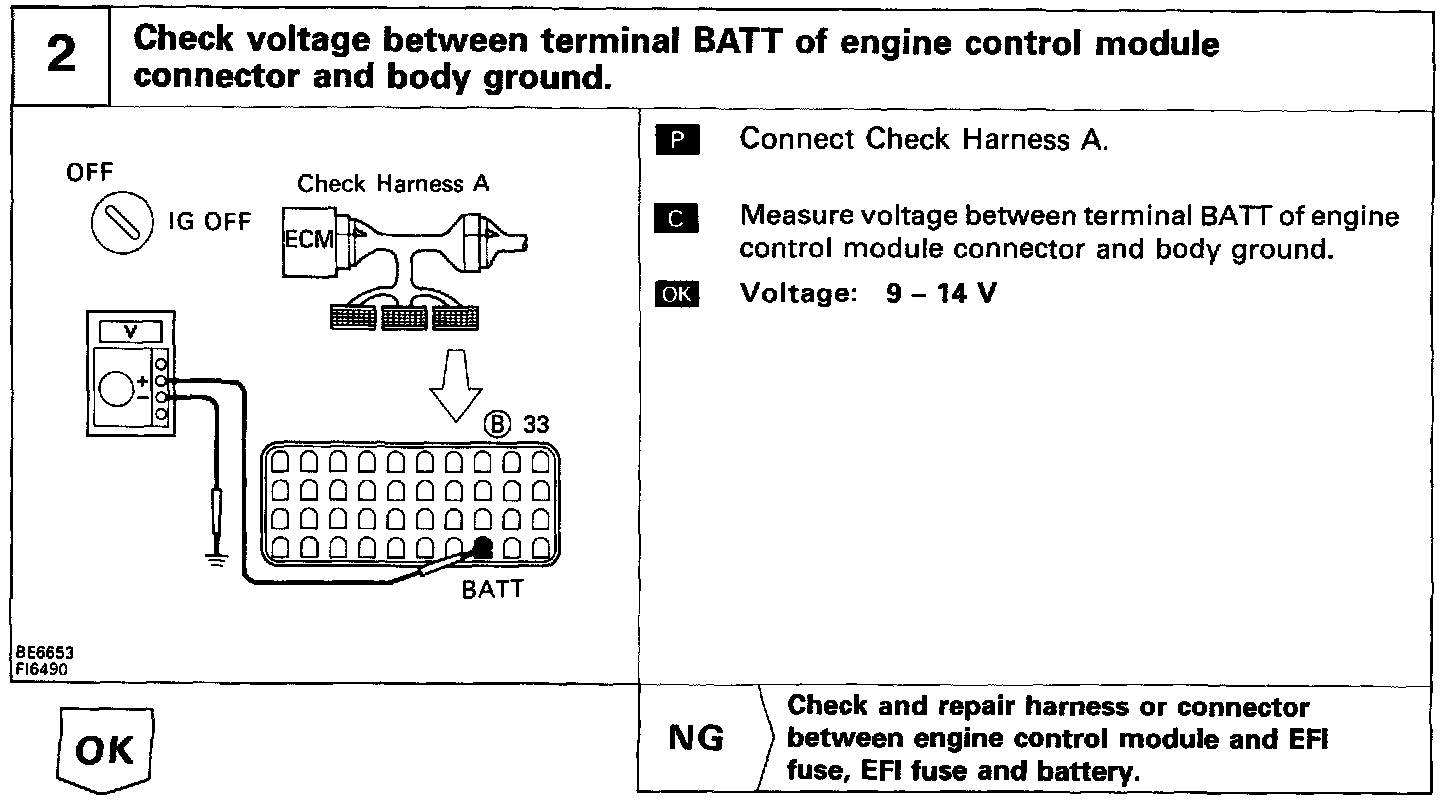

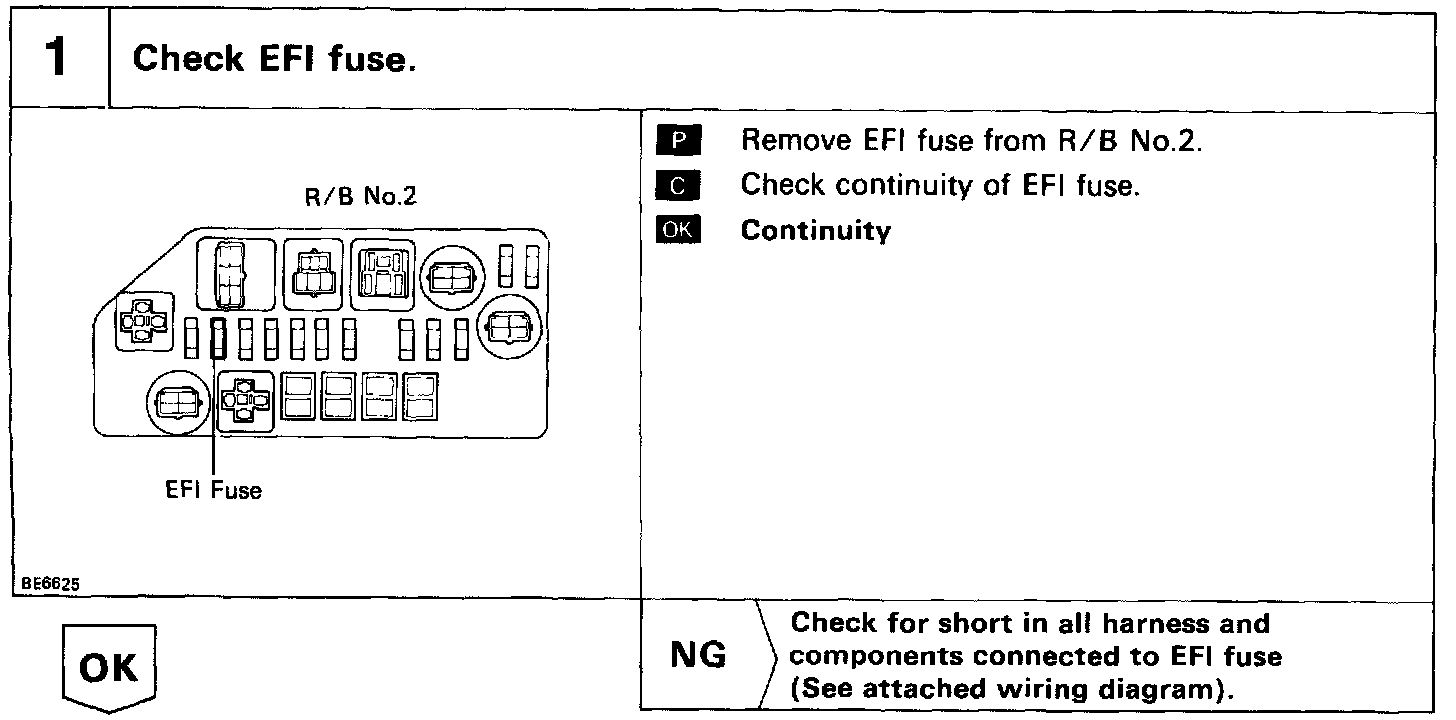

INSPECTION PROCEDURE
