Engine Control Module: Testing and Inspection

COMPONENTS FOR REMOVAL AND INSTALLATION

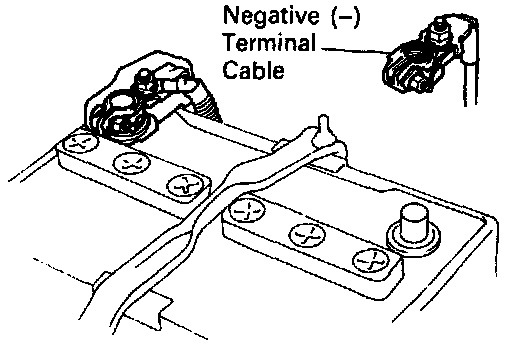

1. DISCONNECT NEGATIVE (-) TERMINAL CABLE FROM BATTERY.

CAUTION: Work must be started after 90 seconds from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.

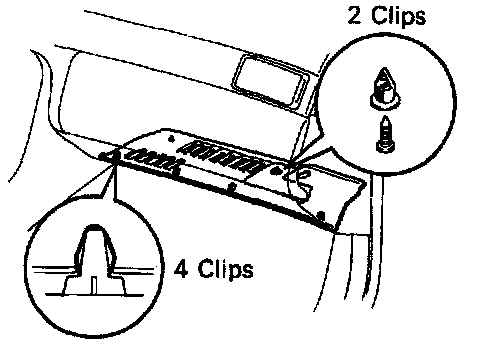

2. REMOVE INSTRUMENT PANEL UNDER COVER.
- Remove the 2 clips.
- Disconnect the 4 clips by pulling the under cover, and remove the under cover.





3. REMOVE ECM PROTECTOR.
- Take out the front side of the floor carpet.

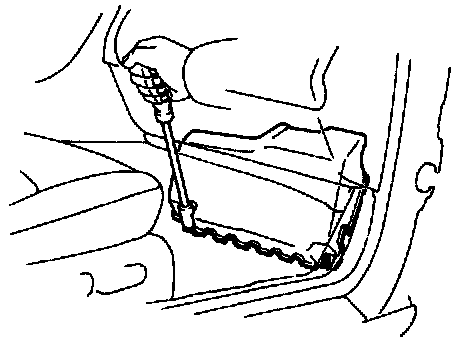

- Remove the 2 nuts and ECM protector.





4. REMOVE ECM.

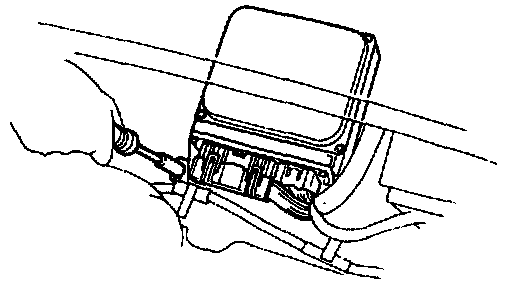

- Remove the nut, and disconnect the ECM from the floor panel.

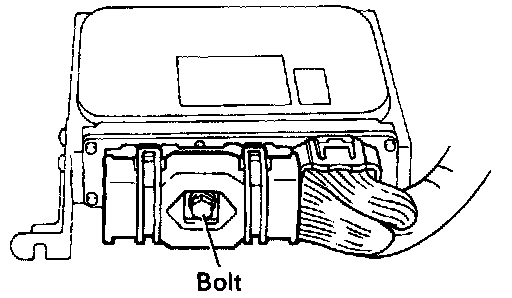

- Fully loosen the bolt and disconnect the 2 ECM connectors, and remove the ECM.
5. INSPECT ECM.
- Refer to Normal Scan Data Values.





6. REINSTALL ECM.
- Connect the 2 ECM connectors.

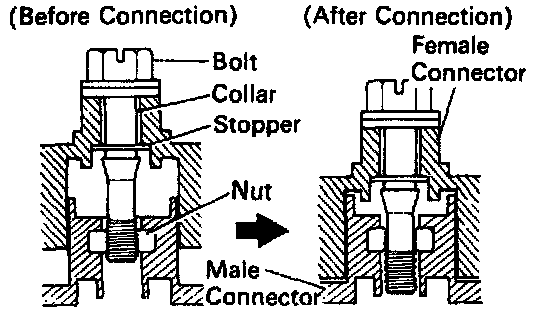

- Match the male connector correctly with the female connector, then press them together.
- Tighten the bolt.

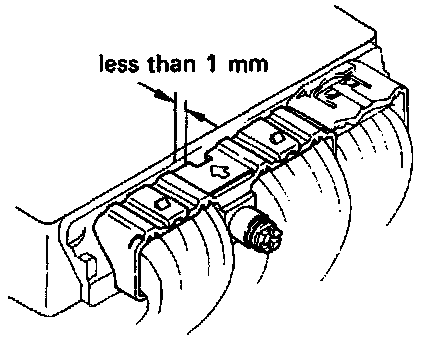

- Make sure the connector is completely connected, by tightening the bolt until there is a clearance of less than 1 mm (0.04 in) between bottom of the male connector and end of the female connector.

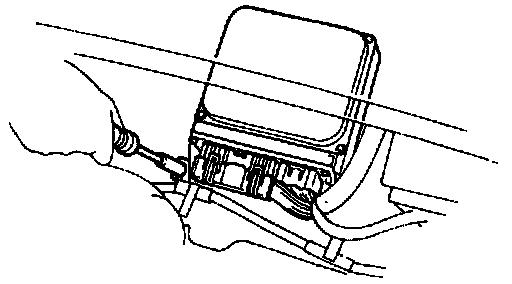

- Install the ECM with the nut.





7. REINSTALL ECM PROTECTOR.
- Install the ECM protector with the 2 nuts.
- Install the floor carpet.





8. REINSTALL INSTRUMENT PANEL UNDER COVER.
- Install the under cover with the 6 clips.
9. RECONNECT NEGATIVE (-) TERMINAL CABLE TO BATTERY.
