Fuse - Installation During PDS

ELECTRICAL
EL94-001
FEBRUARY 18, 1994
Model: SC 300/400

Title:
FUSE INSTALLATION DURING PDS ON '95 SC 300/400

To minimize battery discharge during transportation & storage. The DOME (10A) and RADIO No. 1 (20A) fuses have been removed at the assembly plant.

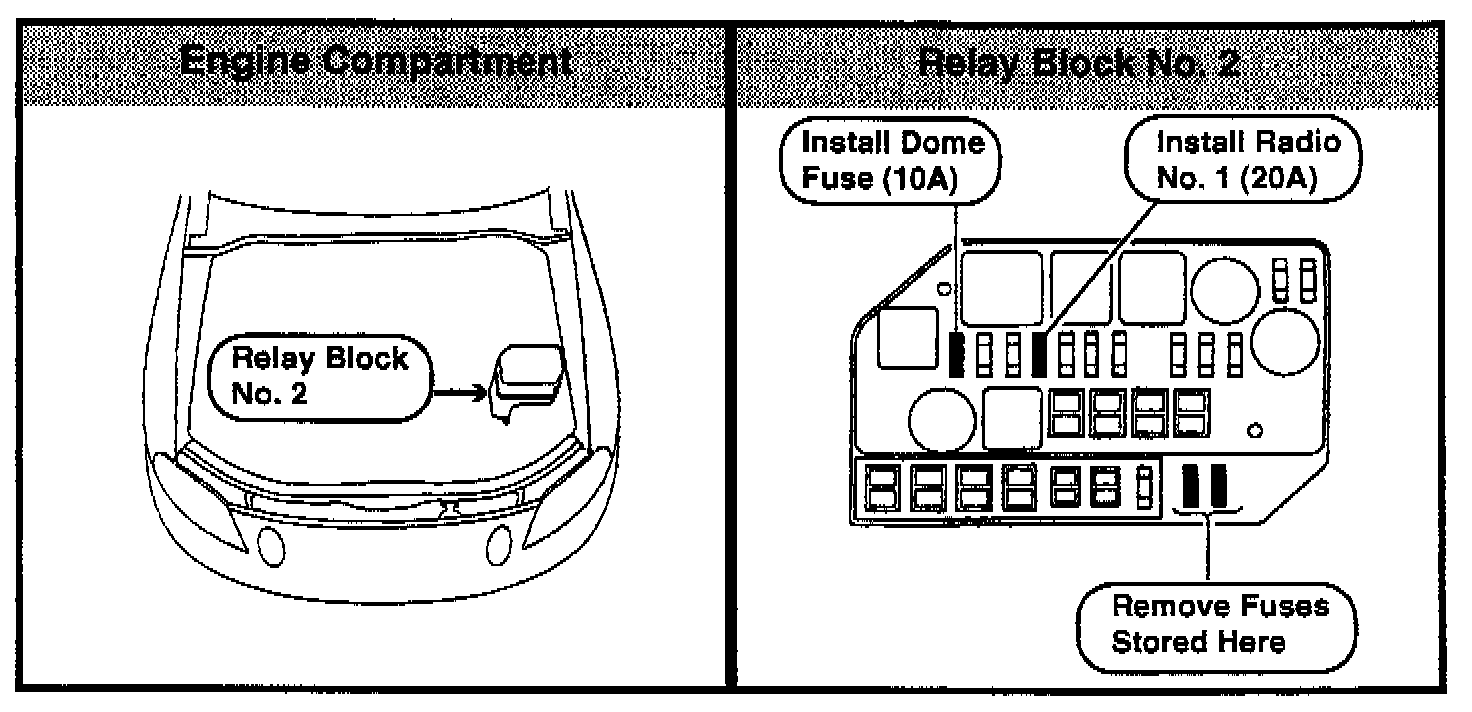

The removed fuses have been stored on the inside of Relay Block No. 2 as shown.

The Dome and Radio fuses must be reinstalled during PDS (Pre-Delivery Service) at the dealership.

PRODUCTION EFFECTIVE:
From January, 1994
