Locations
>>
Connector Locations
>>
A - Z Connectors
>>
B - Connectors
>>
BV2
BV2

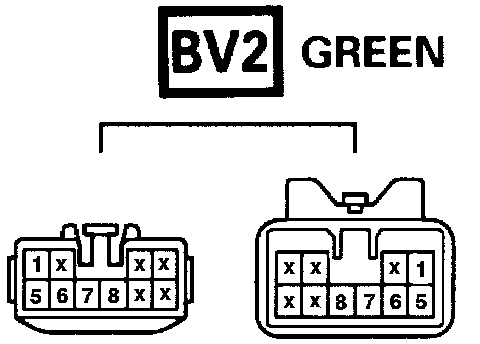

BV2 Green (W/CD Player):

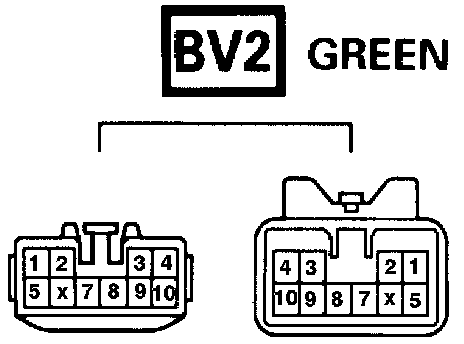

(W/O CD Player) BV2 Green:
Floor No.3 Wire And Console Box Wire (Under The Instrument Panel Center)
